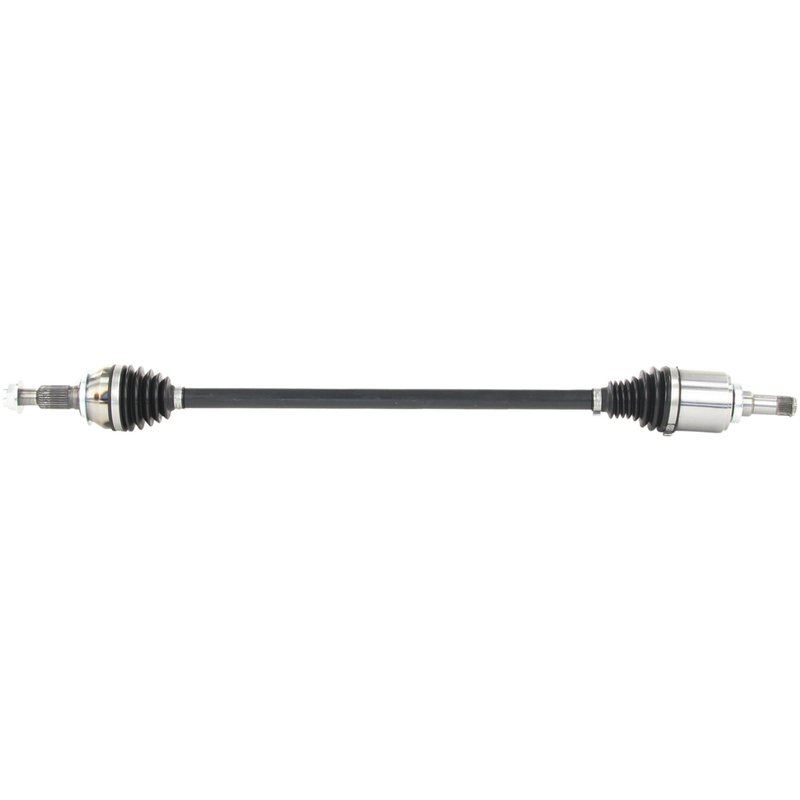

TrakMotive GM-86005 CV Axle Shaft - Front Right
| Brand | TrakMotive GM-86005 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 28 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 39.37 |
| Overall Compressed Length (mm) | 1000 |
| Overall Extended Length (in) | 41.4 |
| Overall Extended Length (mm) | 1052 |
| Product line | AAR CV Axle Shaft |
| Fits | Chevrolet · 5 vehicles |
OE-style replacement. AAR CV axle shaft for a straightforward driveline refresh.
Thermoplastic boots. Help protect the joints from dirt and moisture.
Includes axle nut. Conveniently supplied for a cleaner installation.
Cross-references TrakMotive GM-86005 and 84066553 for the same application. See all 2.
Front Right CV Axle Shaft for Malibu
The TrakMotive AAR CV Axle Shaft GM-86005 is a front right driveline replacement for select Chevrolet Malibu models. Built as a premium-grade axle shaft with OE AAR design details, it supports smooth power transfer from the transaxle to the wheel hub on 2019-2023 Chevrolet Malibu applications.
Key Features
- Fits 2019-2023 Chevrolet Malibu, front right
- TrakMotive AAR CV Axle Shaft, part number GM-86005
- Premium grade construction for driveline service replacement
- 34 inboard splines and 30 outboard splines
- Thermoplastic boots on both joints
- Includes axle nut with M24x1.5 thread, 32 mm hex size, and self-lock design
- ABS ring tooth count: 0; no ABS tone ring included
- Overall compressed length: 1000 mm; overall extended length: 1052 mm
Product Details
This TrakMotive GM-86005 CV axle shaft is engineered for the front right position on Chevrolet Malibu models from 2019 through 2023. It uses a male inboard joint with spline connection style and a conventional outboard joint, matching the OE AAR design noted for this application. The axle includes a nut and is built with thermoplastic boot material at both joints for consistent sealing and driveline protection. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration during acceleration from a damaged axle shaft
- Torn axle boots that allow grease loss and contamination
- Noise or play from a worn front right driveline assembly
- OE-style axle replacement for a Chevrolet Malibu front right service repair
Installation Notes
Verify spline count, axle length, and axle nut specifications before installation. Confirm the front right position and check whether the vehicle is equipped for the OE AAR design used on the listed Malibu applications. Inspect hub, seal, and suspension components during replacement to help prevent repeat driveline noise or premature wear.
Quality Assurance
TrakMotive backs this axle shaft with a limited lifetime warranty. The manufacturer states that its products are produced by an ISO 9001:2008 and TS 16949:2009 certified company.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2023 | Chevrolet | Malibu | 1.5L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2022 | Chevrolet | Malibu | 1.5L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2021 | Chevrolet | Malibu | 1.5L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2020 | Chevrolet | Malibu | 1.5L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | Chevrolet | Malibu | 1.5L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
