TrakMotivePart #: GM-86007

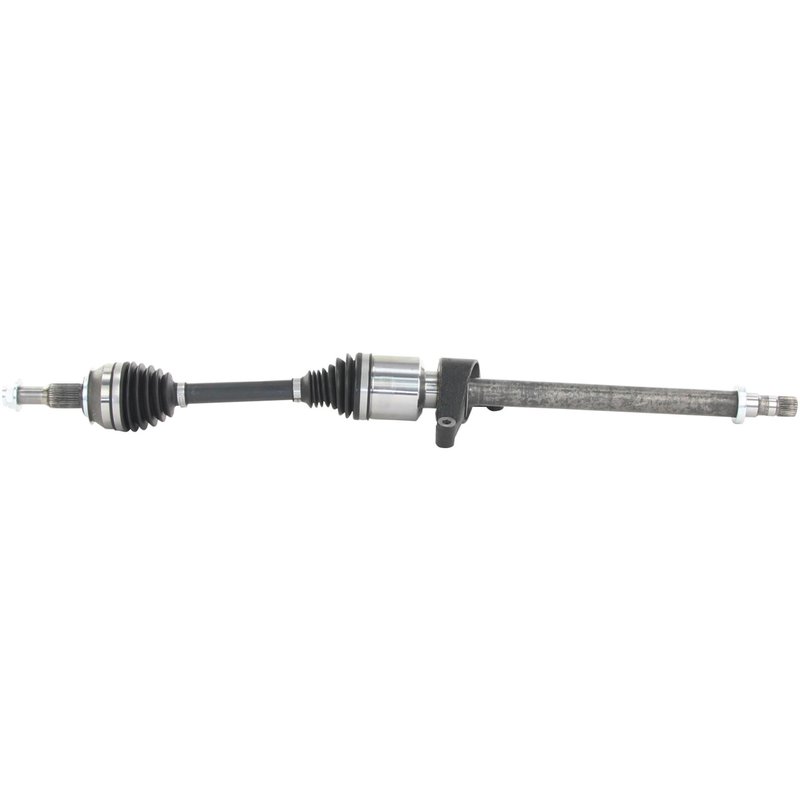

TrakMotive GM-86007 CV Axle Shaft - Front Right
⚙️ 3 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$298.68Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦AAR CV Axle Shaft, Front Right
🚗Fitment: Cadillac, XT5
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all CV Axle Shaft options
TrakMotive GM-86007 CV Axle Shaft - Front Right
| Brand | TrakMotive |
| Part Number | GM-86007 |
| Position | AAR CV Axle Shaft, Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (mm) | 33 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 38 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 33 |
| Axle Nut Thread Size | M27x2 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Long-male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 41.65 |
| Overall Compressed Length (mm) | 1058 |
| Overall Extended Length (in) | 43.76 |
| Overall Extended Length (mm) | 1112 |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2019 | Cadillac | XT5 | FWD | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2018 | Cadillac | XT5 | FWD | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2017 | Cadillac | XT5 | FWD | Front Right | OE AAR design; AAR CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
84814085GM-86007
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
