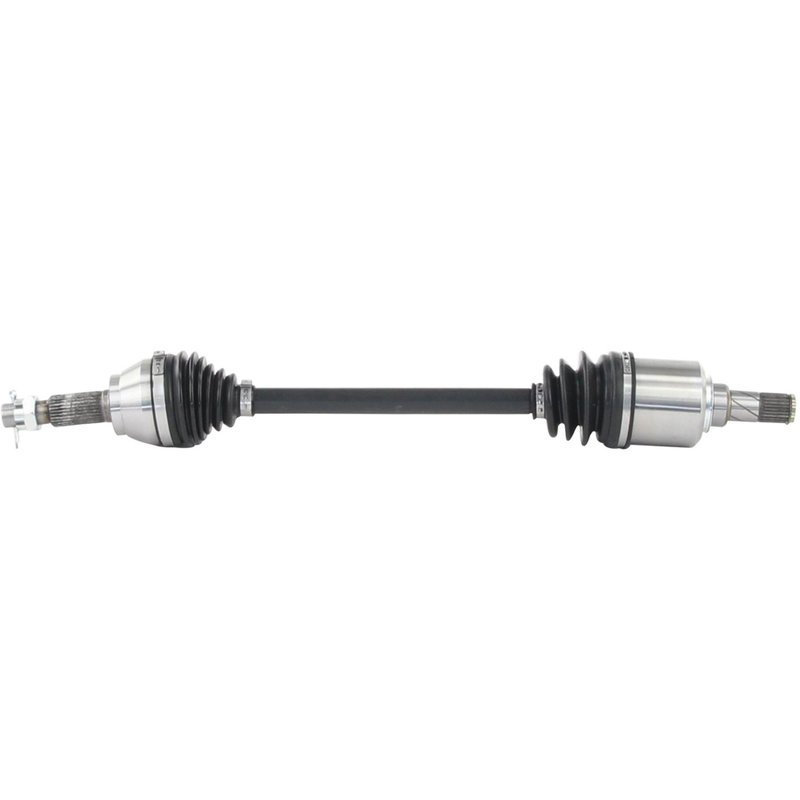

TrakMotive GM-86012 CV Axle Shaft - Front Left

CV Axle Shaft for Chevrolet City Express

The TrakMotive GM-86012 CV axle shaft is a premium driveline replacement for the front left position on select 2015-2018 Chevrolet City Express models. It is built for standard-duty replacement needs and is engineered with the spline counts and axle hardware details needed for a direct-fit service job.

Key Features

• Fits 2015-2018 Chevrolet City Express, front left
• TrakMotive CV Axle Shaft, part number GM-86012
• Premium grade replacement for driveline and axle service
• 27-spline inboard connection and 29-spline outboard connection
• Overall compressed length: 27.17 in. (690 mm)
• Overall extended length: 29.15 in. (741 mm)
• Includes axle nut with M24x1.5 thread, 32 mm hex size, and cotter pin locking type
• Neoprene inboard boot material and thermoplastic outboard boot material
• ABS tone ring not included; ABS ring tooth count: 0

Product Details

GM-86012 is a TrakMotive CV axle shaft for the Chevrolet City Express front left application. This axle uses a male inboard joint with spline connection style and a conventional outboard joint, making it a direct replacement option for service work where the original axle has worn splines, joint noise, or vibration concerns. The part number GM-86012 also cross-references 19316534 for the same application.

TrakMotive positions its CV Axle Shaft line as premium replacement driveline hardware, and the manufacturer notes ISO 9001:2008 and TS 16949:2009 certified company standards. The axle nut is included, with a hex head design, 32 mm socket size, 21 mm height, 37 mm length, and M24x1.5 thread specification.

Common Issues This Part Can Address

• Clicking or popping from a worn front left CV axle
• Vibration during acceleration from damaged axle splines or joints
• Grease leakage from deteriorated axle boots
• Excessive play in the driveline at the front left wheel
• Noise caused by a failing axle assembly on a Chevrolet City Express

Installation Notes and Tips

Verify front left fitment before installation on 2015-2018 Chevrolet City Express vehicles. Confirm spline counts, axle length, and axle nut thread size against the original part before assembly. Because this axle does not include an ABS tone ring, it is intended for non-ABS applications unless otherwise noted by the vehicle configuration. Inspect hub, bearing, and seal surfaces during replacement to help prevent repeat driveline noise.

Quality Assurance

TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also states that its manufacturing is supported by ISO 9001:2008 and TS 16949:2009 certified company processes.
