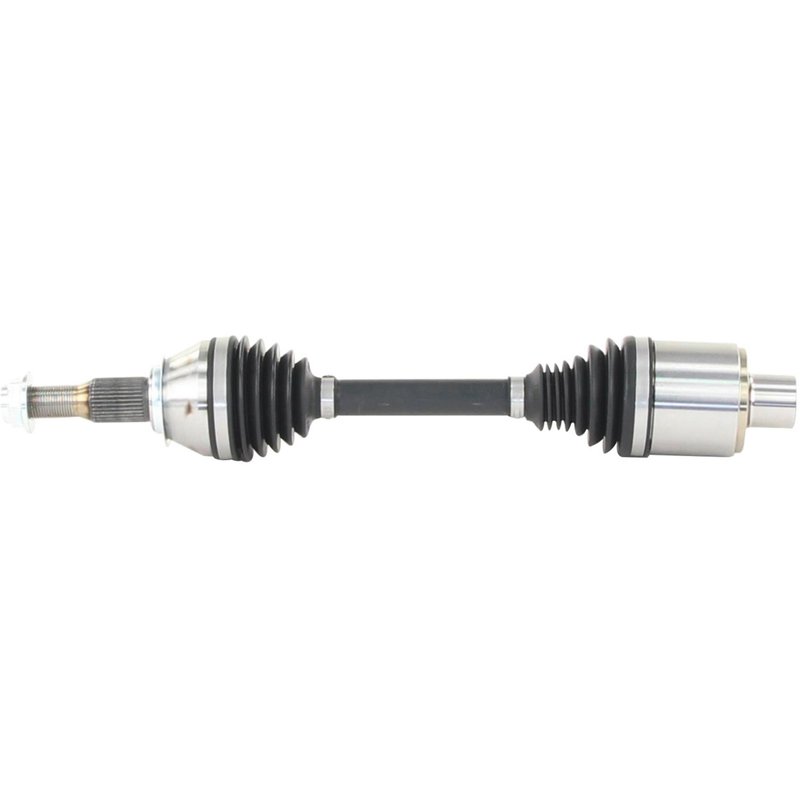

TrakMotive GM-86013 CV Axle Shaft - Front Right
| Brand | TrakMotive GM-86013 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M27x2 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 22.56 |
| Overall Compressed Length (mm) | 573 |
| Overall Extended Length (in) | 24.67 |
| Overall Extended Length (mm) | 627 |
| Product line | AAR CV Axle Shaft |
| Fits | Cadillac · 5 vehicles |
Premium grade. Built as a CV axle shaft with conventional outboard joint design.
Thermoplastic boots. Help protect the joints with durable, flexible coverage.
Self-lock axle nut. Included for a secure, ready-to-install connection.
Cross-references TrakMotive GM-86013, 84634632 and NCV17017 for the same application. See all 3.
TrakMotive AAR CV Axle Shaft GM-86013
TrakMotive GM-86013 is a premium CV axle shaft for the front right position on select Cadillac XT4 models. It is built for 2019-2023 Cadillac XT4 applications and includes a self-lock axle nut for the specified fitment.
Key Features
- Front right CV axle shaft for 2019-2023 Cadillac XT4
- TrakMotive AAR CV Axle Shaft line
- Premium grade construction
- 27-spline inboard connection and 33-spline outboard connection
- Thermoplastic boots on the inboard and outboard joints
- Conventional outboard joint and female inboard joint design
- Includes axle nut with M27x2 thread, 36 mm hex size, and self-lock design
- ABS ring tooth count: 0; ABS tone ring not included
Detailed Description
The TrakMotive GM-86013 CV axle shaft is engineered for direct replacement in front right Cadillac XT4 driveline service. This axle measures 573 mm compressed length and 627 mm extended length, with spline counts and joint configuration matched to the listed application. The AAR CV Axle Shaft product line focuses on application-specific driveline fitment for vehicles such as the Cadillac XT4, and GM-86013 is listed for 2019, 2020, 2021, 2022, and 2023 model years. This part cross-references 84634632 and NCV17017 for the same application.
What It Helps Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Torn boot-related grease loss and joint contamination
- Driveline play caused by spline or joint wear
- Front right axle replacement on a Cadillac XT4
Installation Notes and Tips
Verify front right fitment before installation on the Cadillac XT4. Inspect the intermediate shaft for damage and replace it if necessary when servicing the CV axle. Confirm axle nut thread size, socket size, and spline counts against the vehicle before assembly.
Quality Assurance
TrakMotive lists this axle as part of its AAR CV Axle Shaft line and notes ISO 9001:2008 and TS 16949:2009 certified manufacturing. The part is backed by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Cadillac | XT4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2022 | Cadillac | XT4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2021 | Cadillac | XT4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2020 | Cadillac | XT4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2019 | Cadillac | XT4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
