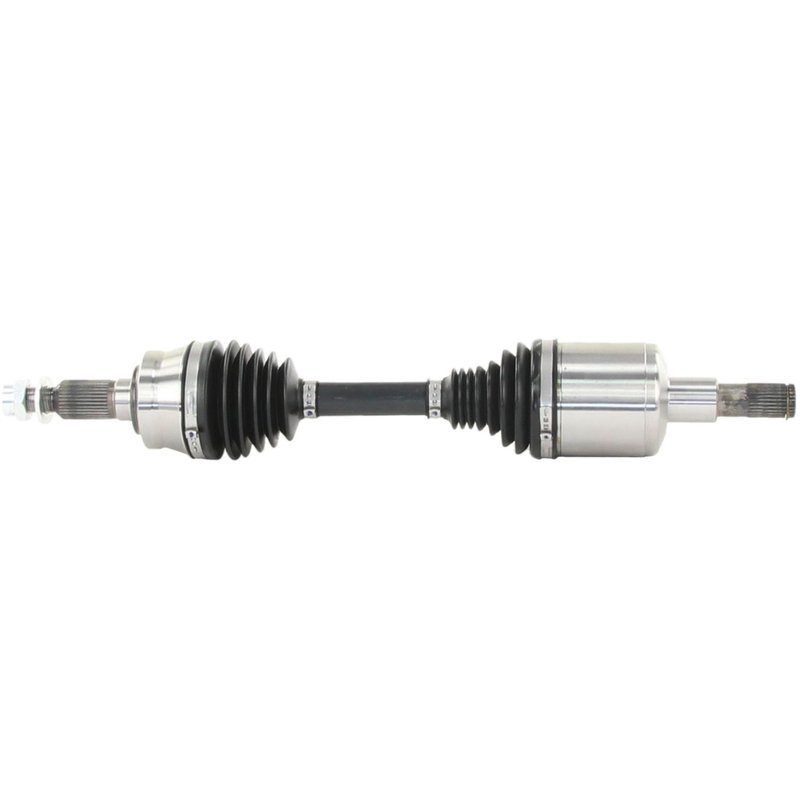

TrakMotive GM-86018 CV Axle Shaft - Front

TrakMotive GM-86018 CV Axle Shaft

The TrakMotive GM-86018 is a front CV axle shaft for 2017-2021 Chevrolet Colorado Standard Duty Replacement applications. Built as a premium driveline component, it is specified with 28 inboard splines, 33 outboard splines, and a conventional outboard joint for direct replacement service on the front axle.

Key Features

• Fits 2017-2021 Chevrolet Colorado, front
• Premium-grade CV axle shaft for driveline repair
• Inboard joint type: male with spline connection
• Outboard joint type: conventional with spline connection
• Thermoplastic boots on both inboard and outboard joints
• Includes axle nut with M24x2 thread, 36 mm hex/socket size, and self-lock design
• ABS tone ring not included; ABS ring tooth count is 0
• Overall compressed length: 645 mm (25.39 in); extended length: 711 mm (27.99 in)

Detailed Description

TrakMotive CV Axle Shaft GM-86018 is engineered for front axle service on the Chevrolet Colorado, covering 2017, 2018, 2019, 2020, and 2021 model years. This axle shaft uses a 28-spline inboard connection and a 33-spline outboard connection, with thermoplastic boot material at both joints to support consistent articulation in daily driving and standard duty replacement use. The included axle nut features an M24x2 thread, 36 mm hex size, and self-locking design for a complete service-ready fitment on the specified application. This part cross-references 84275040 for the same application.

TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline replacement parts for passenger vehicles and light trucks. Part number GM-86018 is built for the front position on the Chevrolet Colorado and is listed for non-ABS applications unless otherwise noted by the vehicle application.

Common Repair Uses

• Restores a worn or noisy front CV axle on a Chevrolet Colorado
• Addresses clicking or popping during turns caused by CV joint wear
• Replaces a damaged axle shaft with spline or boot wear
• Corrects vibration or driveline shudder related to axle failure
• Supports front-wheel driveline repair after seal or joint damage

Installation Notes

Verify front-position fitment, spline count, and axle nut thread size before installation. Confirm whether the vehicle is equipped for a non-ABS axle application, since the ABS tone ring is not included and the axle is listed with zero ABS ring tooth count. Compare compressed and extended lengths to the original shaft before assembly. Professional installation and final torque verification are recommended for driveline service.

Quality Assurance

TrakMotive identifies this axle shaft as a premium-grade replacement and states that its manufacturing is supported by ISO 9001:2008 and TS 16949:2009 certification. The GM-86018 also carries a limited lifetime warranty.
