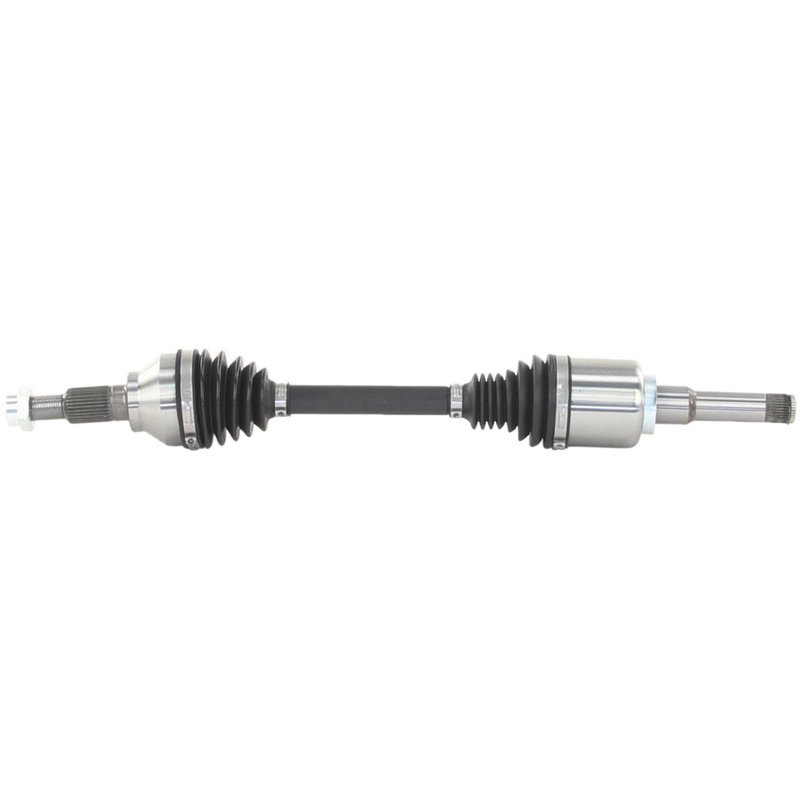

TrakMotive GM-86019 CV Axle Shaft - Front Left

TrakMotive GM-86019 CV Axle Shaft

TrakMotive GM-86019 is a premium CV axle shaft for front left applications on the 2012-2015 Chevrolet Captiva Sport. It is built for standard-duty replacement needs and includes the axle nut specified for the application.

Key Features

• Direct-fit CV axle shaft for the front left position
• Fits 2012-2015 Chevrolet Captiva Sport, front left
• Premium grade replacement for driveline service
• Inboard joint uses a male spline connection with 34 inboard splines
• Outboard joint uses a conventional design with 30 outboard splines
• Thermoplastic boots on both inboard and outboard joints
• Axle nut included with M24x2 thread, 36 mm hex/socket size, and self-locking design
• No ABS tone ring included; ABS ring tooth count is 0

Product Details

This TrakMotive CV axle shaft, part number GM-86019, is engineered for the Chevrolet Captiva Sport front left driveline position. It measures 661 mm compressed and 709 mm extended, with spline counts and joint configuration matched to the listed application. TrakMotive GM-86019 cross-references Monroe Shocks & Struts 172286 and 182286 for the same application.

Common Replacement Reasons

• Clicking or popping during turns
• Vibration during acceleration
• Grease leakage from damaged CV boots
• Worn splines or joint play at the axle shaft
• Front left driveline noise on a 2012-2015 Chevrolet Captiva Sport

Installation Notes

Verify front left fitment before installation on the 2012-2015 Chevrolet Captiva Sport. Confirm axle nut thread size, hex size, and overall length against the original part before assembly. Because this axle is listed without an ABS tone ring, check the vehicle’s ABS configuration and compare the original axle design before replacement.

Quality Assurance

TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer states that its products are produced by an ISO 9001:2008 and TS 16949:2009 certified company.
