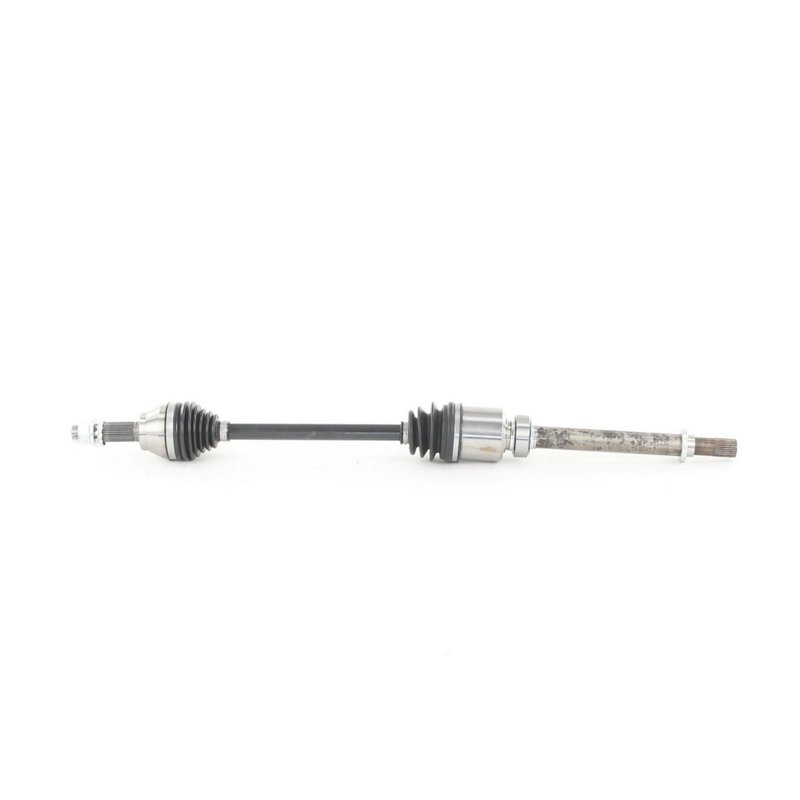

TrakMotive GM-86022 CV Axle Shaft - Front Right

CV Axle Shaft for City Express Front Right

TrakMotive GM-86022 is a premium CV axle shaft for the front right position on 2015-2018 Chevrolet City Express models. It is built for standard duty replacement needs and is specified for non-ABS applications unless otherwise noted.

Key Features

• Fits 2015-2018 Chevrolet City Express, front right
• Premium-grade CV axle shaft for driveline repair
• Inboard joint type: male
• Inboard joint boot material: neoprene
• Outboard joint type: conventional
• Outboard joint boot material: thermoplastic
• Inboard splines: 27
• Outboard splines: 29
• Axle nut thread size: M24x1.5
• Axle nut hex/socket size: 32 mm
• Overall compressed length: 940 mm; overall extended length: 987 mm

Detailed Description

TrakMotive GM-86022 is a CV axle shaft engineered for the front right side of the Chevrolet City Express from 2015 through 2018. The shaft uses a male inboard joint and a conventional outboard joint, with neoprene and thermoplastic boot materials selected for driveline service. With 27 inboard splines and 29 outboard splines, this axle is specified to match the listed application and restore proper power transfer at the front wheel.

TrakMotive’s CV Axle Shaft line focuses on replacement driveline components for passenger vehicles and light-duty applications. GM-86022 follows that product line approach with application-specific dimensions, spline counts, and axle nut specifications for the City Express front right position. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

Common Repair Symptoms

• Clicking or popping during turns from a worn CV joint
• Vibration or shudder during acceleration
• Grease leakage from damaged axle boots
• Clunking noise from the front driveline
• Loss of smooth power delivery to the front wheel

Installation Notes and Tips

Confirm front right fitment before installation on 2015-2018 Chevrolet City Express vehicles. Verify axle nut thread size, hex size, and spline counts against the removed part before assembly. ABS axles fit non-ABS applications unless otherwise noted, and this listing does not include an ABS tone ring. Always inspect seals, hub condition, and related suspension components during axle replacement.

Quality Assurance

TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certified company standards for its production and quality systems.
