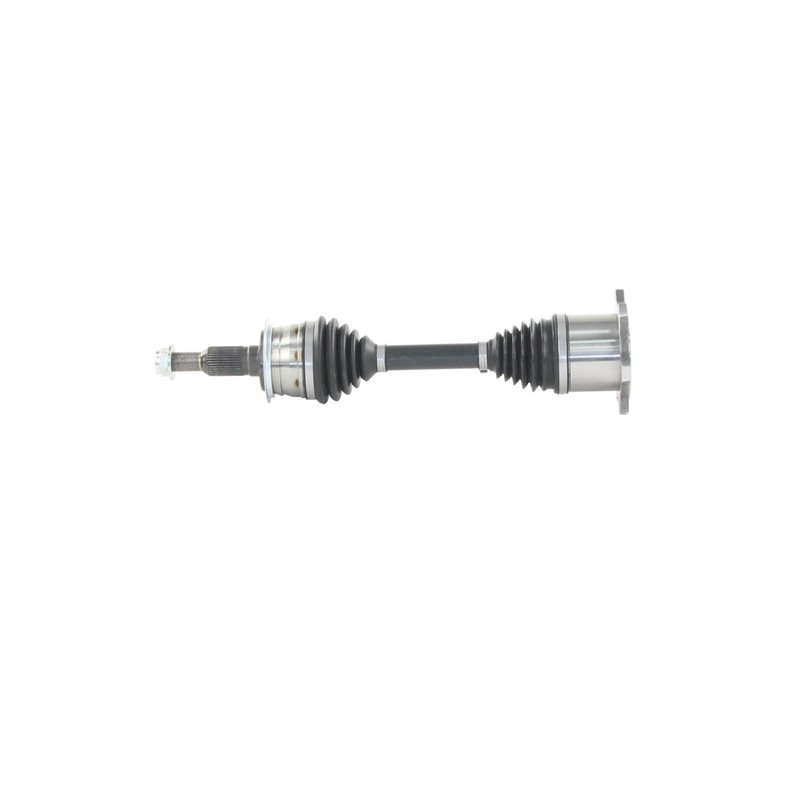

TrakMotive GM-86036 CV Axle Shaft - Front
| Brand | TrakMotive GM-86036 |
|---|---|
| Position | Front |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (mm) | 33 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 33 |
| Axle Nut Thread Size | M27x2 |
| Grade Type | Premium |
| Inboard Joint Type | Flange |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 22.5 |
| Overall Compressed Length (mm) | 571 |
| Overall Extended Length (in) | 24.56 |
| Overall Extended Length (mm) | 625 |
| Product line | CV Axle Shaft |
| Fits | Chevrolet · 3 vehicles |
Premium grade. Built as a CV axle shaft for dependable driveline performance.
Conventional outboard joint. Delivers straightforward power transfer through a proven design.
ISO certified. Made by a company certified to ISO 9001:2008 and TS 16949:2009.
Cross-references TrakMotive GM-86036 for the same application. See all 1.
Front CV Axle Shaft for Suburban 3500 HD
TrakMotive GM-86036 is a premium CV axle shaft for the front position on select Chevrolet Suburban 3500 HD models. It is built for 2016-2018 Chevrolet Suburban 3500 HD applications and is specified as a standard duty replacement for this vehicle fitment.
Key Features
- Front CV axle shaft for Chevrolet Suburban 3500 HD
- Part number GM-86036
- Premium grade construction
- Inboard joint type: flange
- Outboard joint type: conventional
- 36 outboard splines
- Overall compressed length: 22.5 in. (571 mm)
- Overall extended length: 24.56 in. (625 mm)
- Axle nut thread size: M27x2
- Axle nut hex size: 33 mm
Product Details
TrakMotive GM-86036 is a front CV axle shaft engineered for 2016-2018 Chevrolet Suburban 3500 HD models. The axle uses a flange-style inboard joint and a conventional outboard joint, with 36 outboard splines and no ABS tone ring included. TrakMotive identifies this application as a standard duty replacement, making GM-86036 a direct driveline service part for the Chevrolet Suburban 3500 HD front axle position.
This part cross-references TrakMotive GM-86036 for the same application.
Common Repair Applications
- Front axle vibration or clicking during turns
- Worn CV joint noise under acceleration
- Axle shaft damage from boot failure or contamination
- Driveline play affecting smooth power transfer
- Replacement for a worn front CV axle shaft on Chevrolet Suburban 3500 HD
Installation Notes
Verify axle nut thread size, hex size, and compressed length before installation. This axle uses a 33 mm axle nut hex size and M27x2 thread size, and the axle nut is not included. Confirm front-position fitment on 2016-2018 Chevrolet Suburban 3500 HD vehicles before ordering. ABS axles fit non-ABS applications unless otherwise noted.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The company is ISO 9001:2008 and TS 16949:2009 certified, supporting controlled manufacturing and product consistency for driveline service parts.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2018 | Chevrolet | Suburban 3500 HD | Front | Standard Duty Replacement; CV Axle Shaft |
| 2017 | Chevrolet | Suburban 3500 HD | Front | Standard Duty Replacement; CV Axle Shaft |
| 2016 | Chevrolet | Suburban 3500 HD | Front | Standard Duty Replacement; CV Axle Shaft |
