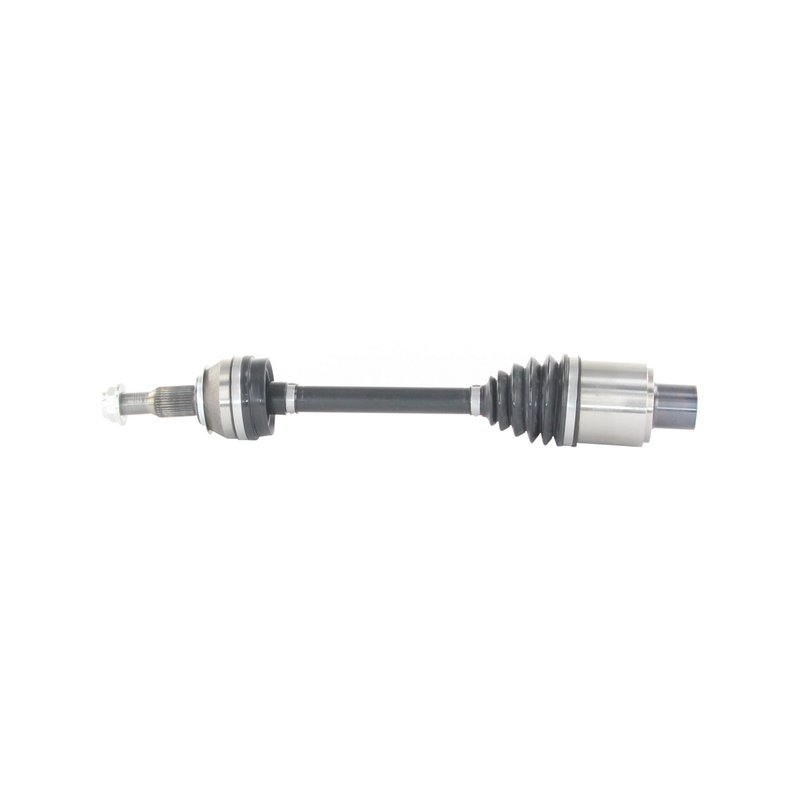

TrakMotive GM-86043 CV Axle Shaft - Rear
| Brand | TrakMotive GM-86043 |
|---|---|
| Position | Rear |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M27x2 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 33 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.625 |
| Overall Compressed Length (mm) | 626 |
| Overall Extended Length (in) | 26.94 |
| Product line | AAR CV Axle Shaft |
| Fits | Cadillac · 1 vehicle |
Premium grade. Built as a CV axle shaft with a conventional outboard joint.
Thermoplastic boots. Help protect the joints from dirt and moisture.
Axle nut included. Comes with a self-locking hex nut for easier installation.
Cross-references TrakMotive GM-86043 for the same application. See all 1.
Rear CV Axle Shaft for 2023 Cadillac LYRIQ
TrakMotive GM-86043 is a rear CV axle shaft for the 2023 Cadillac LYRIQ. It is built as a premium-grade driveline replacement with 33 splines on the inboard and outboard ends, a conventional outboard joint, and a female inboard joint for the listed application.
Key Features
- Fits 2023 Cadillac LYRIQ, rear
- TrakMotive AAR CV Axle Shaft line
- Part number GM-86043
- Premium grade construction
- 33 inboard splines and 33 outboard splines
- Thermoplastic boots on the inboard and outboard joints
- Includes axle nut with M27x2 thread, 36 mm hex size, and self-locking design
- No ABS tone ring included; ABS ring tooth count is 0
Product Details
This TrakMotive GM-86043 CV axle shaft is specified for the rear position on the 2023 Cadillac LYRIQ. The AAR CV Axle Shaft line is backed by ISO 9001:2008 and TS 16949:2009 certified manufacturing practices, and the axle is covered by a limited lifetime warranty. The design uses a conventional outboard joint, a female inboard joint, and spline connections at both ends for the listed fitment.
This part cross-references TrakMotive GM-86043 for the same application.
Common Repair Reasons
- Clicking or popping from the rear driveline during turns or acceleration
- Vibration or shudder from a worn axle shaft assembly
- Torn or deteriorated CV boots with grease loss
- Excessive play in the axle shaft splines or joints
- Noise after driveline wear on a 2023 Cadillac LYRIQ rear axle
Installation Notes
Before installation, inspect the intermediate shaft for damage and replace it if needed, as recommended for CV axle replacement on this application. Verify axle nut thread size, hex size, and overall length against the removed part before assembly. Confirm rear-position fitment on the 2023 Cadillac LYRIQ and check that the vehicle does not require an ABS tone ring, since this axle is listed without one.
Quality Assurance
TrakMotive manufactures this AAR CV axle shaft under ISO 9001:2008 and TS 16949:2009 certified quality systems. GM-86043 includes limited lifetime warranty coverage.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Cadillac | LYRIQ | Rear | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
