OE Quality
60-Day Returns
TrakMotivePart #: GM-86044

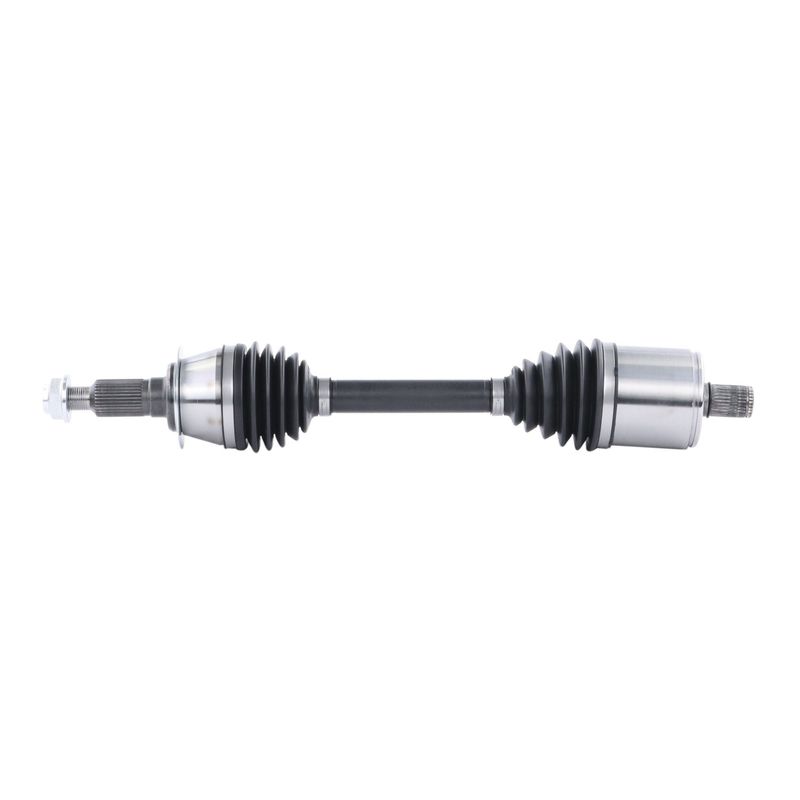

TrakMotive GM-86044 CV Axle Shaft - Front
2 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$161.60Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
AAR CV Axle Shaft, Front
Fitment: Chevrolet and GMC, Sierra 1500 and Silverado 1500
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all CV Axle Shaft options
TrakMotive GM-86044 CV Axle Shaft - Front
| Brand | TrakMotive |
|---|---|
| Part Number | GM-86044 |
| Position | AAR CV Axle Shaft, Front |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .875 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M24x2 |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.625 |
| Overall Compressed Length (mm) | 626 |
| Overall Extended Length (in) | 26.94 |
| Overall Extended Length (mm) | 684 |
| Overall Extended Length(In) | 26.94 |
This part fits 2 vehicles. Search below:
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2022 | Chevrolet | Silverado 1500 | ZR2 | 4WD | Front | OE AAR design; AAR CV Axle Shaft |
| 2022 | GMC | Sierra 1500 | AT4X | 4WD | Front | OE AAR design; AAR CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
GM-86044
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
