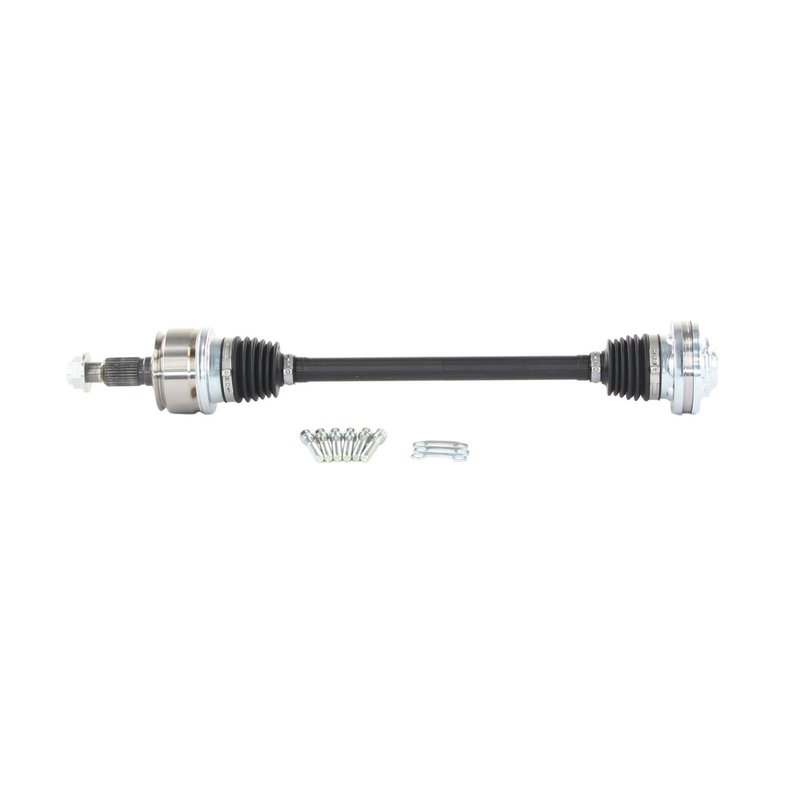

TrakMotive GM-86046 CV Axle Shaft - Rear Right
| Brand | TrakMotive GM-86046 |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.875 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Bolt Head Size (in) | 0.31 |
| Inboard Bolt Head Size (mm) | 8 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2.375 |
| Inboard Bolt Length (mm) | 60 |
| Inboard Bolt Thread Size | M10x1.5 |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Bolt-on |
| Inboard Shaft Connection Style | Bolt-on |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Product line | CV Axle Shaft |
| Fits | Cadillac · 4 vehicles |
Bolt-on design. Simplifies installation with a secure, direct-fit connection.
Thermoplastic boots. Help protect the joints from dirt and moisture.
Premium grade. Built by an ISO and TS certified company.
Cross-references TrakMotive GM-86046 for the same application. See all 1.
Rear Right CV Axle Shaft for Cadillac CT4
TrakMotive GM-86046 is a premium CV axle shaft for the rear right position on select 2020-2023 Cadillac CT4 models with Performance Suspension (Opt FE3). It is built as a bolt-on driveline replacement with a conventional outboard joint and thermoplastic boots for service-focused fitment.
Key Features
- Fits 2020-2023 Cadillac CT4, rear right, with Performance Suspension (Opt FE3)
- Premium-grade CV axle shaft for driveline repair
- Bolt-on inboard joint with 6-bolt attachment
- 30-spline outboard shaft connection
- Includes axle nut with self-lock design
- ABS tone ring not included; ABS ring tooth count: 0
- Overall compressed length: 27.06 in. (688 mm)
- Overall extended length: 30.06 in. (763 mm)
Product Details
This TrakMotive CV axle shaft, part number GM-86046, is engineered for the rear right side of the Cadillac CT4 platform listed above. The assembly uses a bolt-on inboard joint with six M10x1.5 fasteners and a spline-style outboard connection with 30 splines, making it a direct driveline replacement for the specified application. TrakMotive GM-86046 also includes a self-lock axle nut with M24x1.5 thread size and 32 mm hex size.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components for passenger vehicles, with this application-specific axle built to match the listed fitment and connection style. This part cross-references TrakMotive GM-86046 for the same application.
What It Helps Repair
- Clicking or popping from a worn CV joint
- Vibration during acceleration from axle wear
- Grease leakage from damaged thermoplastic boots
- Driveline noise caused by spline or joint wear
- Loss of smooth power transfer to the rear right wheel
Installation Notes
Verify rear right fitment on 2020-2023 Cadillac CT4 models with Performance Suspension (Opt FE3) before installation. Confirm axle nut thread size, spline count, and bolt-on joint configuration against the original part. Inspect mating surfaces, fasteners, and seals during replacement to help ensure proper driveline operation.
Quality Assurance
TrakMotive GM-86046 is backed by a limited lifetime warranty. TrakMotive states that its manufacturing processes are supported by ISO 9001:2008 and TS 16949:2009 certification.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2023 | Cadillac | CT4 | 2.7L | L4 | Rear Right | With Performance Suspension (Opt FE3); CV Axle Shaft |
| 2022 | Cadillac | CT4 | 2.7L | L4 | Rear Right | With Performance Suspension (Opt FE3); CV Axle Shaft |
| 2021 | Cadillac | CT4 | 2.7L | L4 | Rear Right | With Performance Suspension (Opt FE3); CV Axle Shaft |
| 2020 | Cadillac | CT4 | 2.7L | L4 | Rear Right | With Performance Suspension (Opt FE3); CV Axle Shaft |
