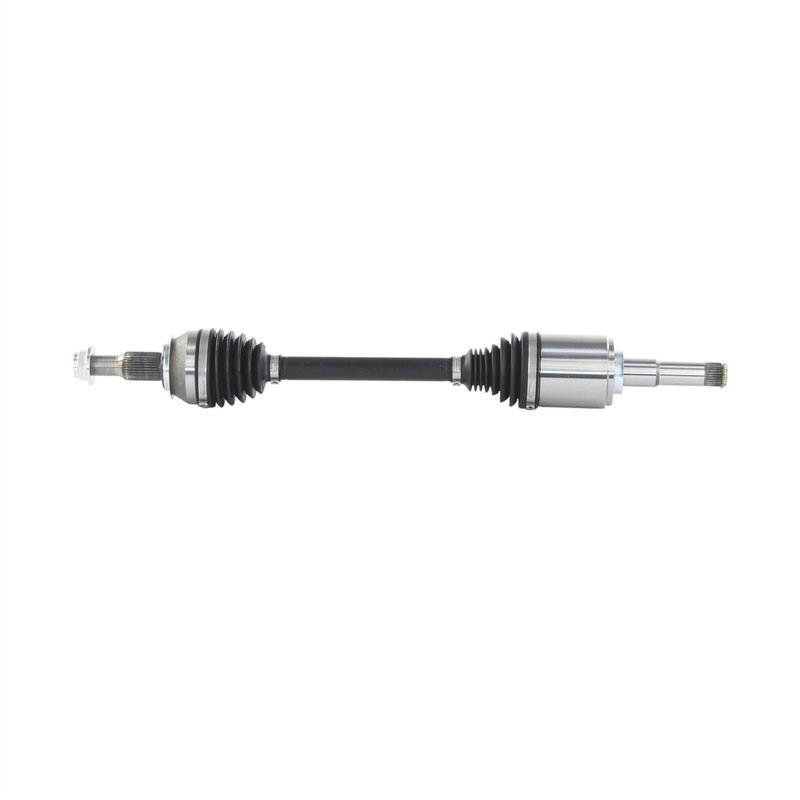

TrakMotive GM-86048 CV Axle Shaft - Front Left
| Brand | TrakMotive GM-86048 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.875 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M27x2 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 29.625 |
| Overall Compressed Length (mm) | 753 |
| Overall Extended Length (mm) | 824 |
| Overall Extended Length(In) | 32.44 |
| Product line | AAR CV Axle Shaft |
| Fits | Chevrolet and GMC · 4 vehicles |
OE-style replacement. Premium CV axle shaft with bolt-on fit and included self-locking axle nut.
Thermoplastic boots. Durable boot material helps protect the joints from wear and contamination.
Spline connection. 27- and 33-spline ends provide a precise, secure drivetrain connection.
Cross-references TrakMotive GM-86048 for the same application. See all 1.
OE AAR CV Axle Shaft for Traverse and Acadia
TrakMotive GM-86048 is a premium front left CV axle shaft for select Chevrolet Traverse and GMC Acadia applications with OE AAR design. It is built for direct replacement service on 2022-2024 Chevrolet Traverse, front left, and 2024 GMC Acadia, front left.
Key Features
- TrakMotive AAR CV Axle Shaft, part number GM-86048
- Front left axle for select Chevrolet Traverse and GMC Acadia models
- OE AAR design for application-specific replacement
- Premium grade construction
- Includes axle nut with M27x2 thread, 36 mm hex size, and self-locking design
- Thermoplastic boots on the inboard and outboard joints
- 27 inboard splines and 33 outboard splines
- No ABS tone ring included; ABS ring tooth count is 0
Product Details
The TrakMotive GM-86048 CV axle shaft is engineered for front left driveline service where OE AAR design is specified. It features a male inboard joint with spline connection, a conventional outboard joint, and compressed and extended lengths that match the listed applications. TrakMotive identifies this AAR CV Axle Shaft line as a premium replacement option backed by ISO 9001:2008 and TS 16949:2009 certified manufacturing processes.
This part cross-references TrakMotive GM-86048 for the same application.
What It Helps Address
- Clicking or popping during turns caused by worn CV joints
- Vibration or shudder from a damaged axle shaft
- Grease leakage from deteriorated joint boots
- Driveline noise from spline or joint wear
- Front axle replacement needs on OE AAR design vehicles
Installation Notes and Tips
Verify front left fitment before installation on 2022-2024 Chevrolet Traverse and 2024 GMC Acadia applications. Confirm axle nut thread size, hex size, and overall length against the original part before assembly. Because ABS tone ring is not included, compare the vehicle’s original ABS configuration before ordering.
Quality Assurance
TrakMotive states that this axle shaft is covered by a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certified company standards for manufacturing control.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2024 | Chevrolet | Traverse | 2.5L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2024 | GMC | Acadia | — | — | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2023 | Chevrolet | Traverse | — | — | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2022 | Chevrolet | Traverse | — | — | Front Left | OE AAR design; AAR CV Axle Shaft |
