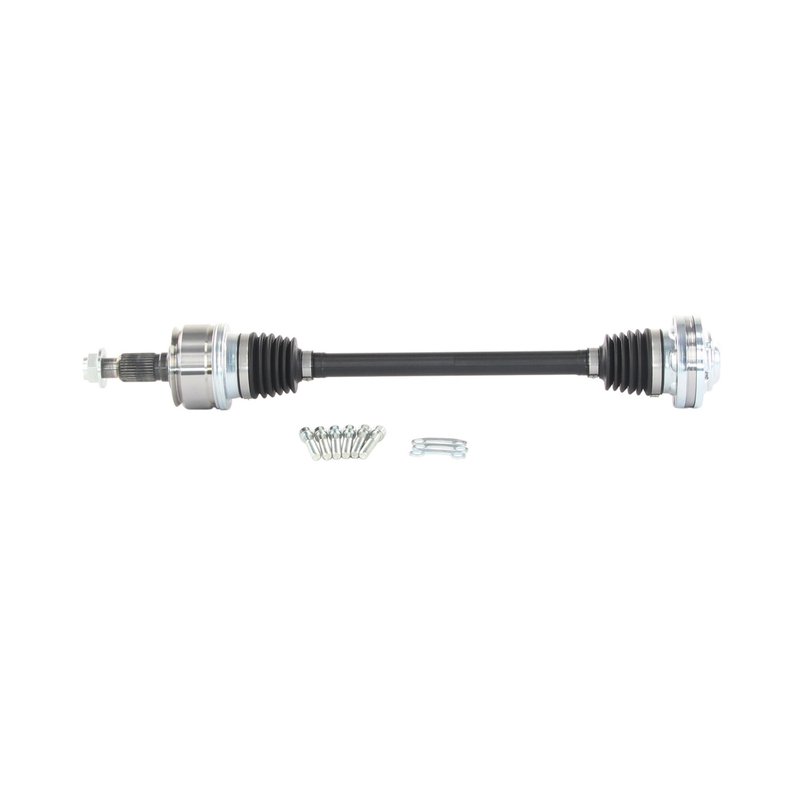

TrakMotive GM-86049 CV Axle Shaft - Rear Left
| Brand | TrakMotive GM-86049 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.875 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Bolt Head Size (in) | 0.31 |
| Inboard Bolt Head Size (mm) | 8 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2.375 |
| Inboard Bolt Length (mm) | 60 |
| Inboard Bolt Thread Size | M10x1.5 |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Bolt-on |
| Inboard Shaft Connection Style | Bolt-on |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Product line | CV Axle Shaft |
| Fits | Cadillac · 4 vehicles |
Bolt-on design. Simplifies installation with a direct-fit axle shaft layout.
Thermoplastic boots. Help protect the joints from dirt and moisture.
Premium grade. Built by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive GM-86049 for the same application. See all 1.
CV Axle Shaft for Cadillac CT4
TrakMotive GM-86049 is a premium CV axle shaft for the rear left position on select 2020-2023 Cadillac CT4 models without Performance Suspension. It is built for direct driveline replacement and includes the axle nut for a cleaner service job.
Key Features
- Rear left CV axle shaft for 2020-2023 Cadillac CT4
- Direct replacement for GM-86049 applications
- Premium-grade construction for driveline service
- Outboard spline count: 30
- Inboard bolt-on joint with 6-bolt connection
- Thermoplastic boots on the inboard and outboard joints
- Includes axle nut with M24x1.5 thread, 32 mm hex size, and self-locking design
- ABS tone ring not included; ABS ring tooth count: 0
Product Details
TrakMotive CV Axle Shaft GM-86049 is engineered for the rear left side of the Cadillac CT4 in 2020, 2021, 2022, and 2023 applications without Performance Suspension. The axle uses a bolt-on inboard joint with six M10x1.5 bolts and an outboard spline connection, making it a direct driveline replacement for the specified vehicle configuration. TrakMotive’s CV Axle Shaft line focuses on replacement driveline components built to match the application requirements of the original axle assembly.
This part cross-references GM-86049 for the same application.
Common Repair Uses
- Restores drivetrain operation after a worn or damaged rear axle
- Addresses clicking, vibration, or binding from a failing CV joint
- Replaces a leaking or torn axle boot assembly
- Corrects axle noise during acceleration or turning
- Supports service on a rear left Cadillac CT4 driveline
Installation Notes
Verify rear left fitment before installation: Fits 2020-2023 Cadillac CT4, rear left, without Performance Suspension. Confirm axle nut thread size, spline count, and bolt-on joint style against the original part before assembly. Use the included axle nut during service and follow factory torque specifications for the vehicle.
Quality Assurance
TrakMotive states this CV axle shaft is backed by a limited lifetime warranty. The company is ISO 9001:2008 and TS 16949:2009 certified, reflecting documented manufacturing and quality management standards.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2023 | Cadillac | CT4 | AWD | 2.7L | L4 | Rear Left | Without Performance Suspension; CV Axle Shaft |
| 2022 | Cadillac | CT4 | AWD | 2.7L | L4 | Rear Left | Without Performance Suspension; CV Axle Shaft |
| 2021 | Cadillac | CT4 | AWD | 2.7L | L4 | Rear Left | Without Performance Suspension; CV Axle Shaft |
| 2020 | Cadillac | CT4 | AWD | 2.7L | L4 | Rear Left | Without Performance Suspension; CV Axle Shaft |
