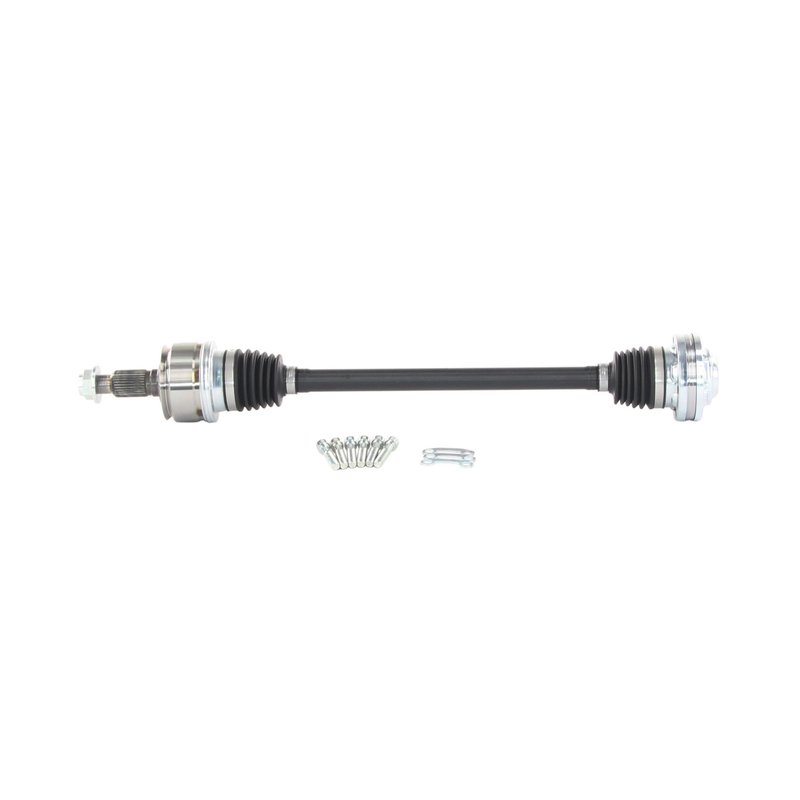

TrakMotive GM-86050 CV Axle Shaft - Rear Right
| Brand | TrakMotive GM-86050 |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.875 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Bolt Head Size (in) | 0.31 |
| Inboard Bolt Head Size (mm) | 8 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2.375 |
| Inboard Bolt Length (mm) | 60 |
| Inboard Bolt Thread Size | M10x1.5 |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Bolt-on |
| Inboard Shaft Connection Style | Bolt-on |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Product line | CV Axle Shaft |
| Fits | Cadillac · 4 vehicles |
Bolt-on design. Simplifies installation with a direct-fit axle shaft.
Thermoplastic boots. Help protect the joints from dirt and moisture.
Premium grade. Built by an ISO and TS certified company.
Cross-references TrakMotive GM-86050 for the same application. See all 1.
TrakMotive CV Axle Shaft for Cadillac CT4
TrakMotive GM-86050 is a premium CV axle shaft for the rear right position on select 2020-2023 Cadillac CT4 models without Performance Suspension. It is built for direct replacement service and includes the axle nut specified for this application.
Key Features
- Fits 2020-2023 Cadillac CT4, rear right
- Premium-grade CV axle shaft for driveline repair
- Outboard spline count: 30
- Inboard connection: bolt-on with 6 bolt holes
- Overall compressed length: 28.25 in. (717 mm)
- Overall extended length: 31.19 in. (792 mm)
- Thermoplastic boots on inboard and outboard joints
- Includes axle nut with M24x1.5 thread, 32 mm hex size, and self-locking design
- ABS tone ring not included; ABS ring tooth count: 0
Product Details
This TrakMotive CV axle shaft is engineered for the rear right side of the Cadillac CT4 and matches the listed vehicle configuration without Performance Suspension. GM-86050 uses a conventional outboard joint, a spline-style shaft connection, and a bolt-on inboard joint with 6 bolt holes and M10x1.5 Allen-head bolts. TrakMotive positions this CV axle shaft as a direct driveline replacement for service work where a worn or damaged axle is causing noise, vibration, or driveline movement. This part cross-references TrakMotive GM-86050 for the same application.
Common Repair Uses
- Clicking or popping from a worn CV joint
- Vibration during acceleration from axle wear
- Grease leakage from damaged thermoplastic boots
- Driveline noise from a failing rear axle assembly
- Restoring rear right axle function on a Cadillac CT4
Installation Notes
Verify rear right fitment before installation and confirm the vehicle is not equipped with Performance Suspension. Match the axle nut thread size, hex size, and locking style to the original hardware specification. Inspect the hub, seals, and mounting points for wear before installing the new axle shaft.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certified manufacturing practices.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2023 | Cadillac | CT4 | AWD | 2.7L | L4 | Rear Right | Without Performance Suspension; CV Axle Shaft |
| 2022 | Cadillac | CT4 | AWD | 2.7L | L4 | Rear Right | Without Performance Suspension; CV Axle Shaft |
| 2021 | Cadillac | CT4 | AWD | 2.7L | L4 | Rear Right | Without Performance Suspension; CV Axle Shaft |
| 2020 | Cadillac | CT4 | AWD | 2.7L | L4 | Rear Right | Without Performance Suspension; CV Axle Shaft |
