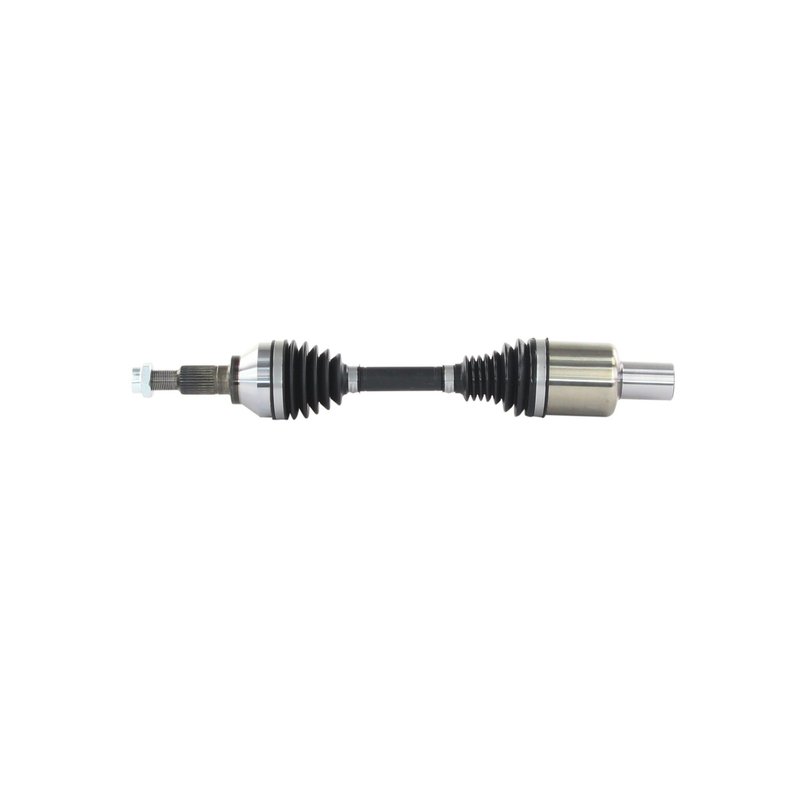

TrakMotive GM-86052 CV Axle Shaft - Front Right

CV Axle Shaft for Captiva Sport Front Right

TrakMotive GM-86052 is a premium CV axle shaft for the front right position on 2012-2015 Chevrolet Captiva Sport models. It is built for direct replacement service with the correct spline counts, compressed and extended lengths, and included axle nut for a proper driveline repair.

Key Features

• Fits 2012-2015 Chevrolet Captiva Sport, front right
• TrakMotive CV Axle Shaft, part number GM-86052
• Overall compressed length: 21.625 in. (550 mm)
• Overall extended length: 23.875 in. (606 mm)
• 27-spline inboard and 30-spline outboard shaft connection
• Female inboard joint with conventional outboard joint design
• Thermoplastic boot material on inboard and outboard joints
• Axle nut included; M24x2 thread, 36 mm socket size, self-locking type
• No ABS tone ring included; ABS ring tooth count: 0

Product Details

This TrakMotive CV axle shaft GM-86052 is engineered for the front right side of the Chevrolet Captiva Sport and matches the listed application with the correct spline configuration and shaft length. The axle uses a female inboard joint, spline-style shaft connections, and a conventional outboard joint layout for direct driveline service. TrakMotive identifies this CV axle shaft as a premium-grade replacement and notes ISO 9001:2008 and TS 16949:2009 certified manufacturing processes.

TrakMotive’s CV Axle Shaft line focuses on replacement driveline components for vehicles that need accurate fitment and dependable joint geometry. For this application, GM-86052 is the correct reference when servicing the front right axle on 2012, 2013, 2014, and 2015 Chevrolet Captiva Sport models.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Issues This Part Can Address

• Clicking or popping noises during turns from a worn CV joint
• Vibration or shudder from a damaged axle shaft
• Grease leakage from deteriorated axle boots
• Excessive driveline play caused by worn splines or joints
• Front right axle failure on Chevrolet Captiva Sport models

Installation Notes and Tips

Verify the front right position, spline count, axle nut thread size, and overall length before installation. Inspect the hub, seals, and mating components for wear before installing the new axle shaft. Use the included axle nut and confirm proper torque specifications for the vehicle service procedure.

Quality Assurance

TrakMotive lists this CV axle shaft GM-86052 as a premium replacement component and states that its manufacturing is supported by ISO 9001:2008 and TS 16949:2009 certification. The manufacturer also backs this part with a limited lifetime warranty.
