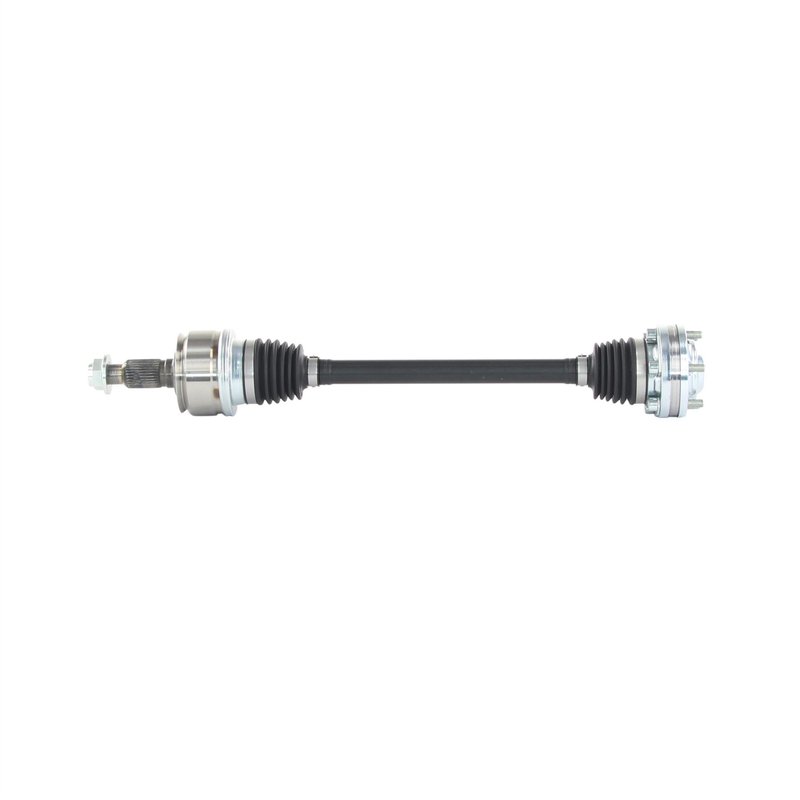

TrakMotive GM-86053 CV Axle Shaft - Rear Left

TrakMotive GM-86053 CV Axle Shaft

TrakMotive GM-86053 is a premium CV axle shaft for the rear left position on select Cadillac CT4 models. It is built for 2020-2023 Cadillac CT4 applications with Performance Suspension (Opt FE3) and includes the axle nut for service replacement.

Key Features

• Direct-fit CV axle shaft for rear left installation
• Fits 2020-2023 Cadillac CT4, rear left, with Performance Suspension (Opt FE3)
• Premium-grade construction for driveline service work
• Outboard joint uses a conventional design with a spline shaft connection
• Inboard joint uses a bolt-on design with 6-bolt attachment
• Thermoplastic boots on the inboard and outboard joints
• Includes axle nut with M24x1.5 thread, 32 mm hex size, and self-locking design
• ABS tone ring is not included; ABS ring tooth count is 0

Detailed Description

This TrakMotive CV axle shaft, part number GM-86053, is engineered for rear left driveline service on the Cadillac CT4. It measures 25.625 inches compressed and 28.56 inches extended, with a 30-spline outboard connection and a 6-bolt inboard joint layout. The axle is intended for 2020, 2021, 2022, and 2023 Cadillac CT4 models equipped with Performance Suspension (Opt FE3). TrakMotive GM-86053 is part of the CV Axle Shaft line and is backed by the brand’s ISO 9001:2008 and TS 16949:2009 certified manufacturing standards.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Reasons

• Clicking or popping during turns from worn CV joints
• Vibration or shudder from a damaged axle shaft
• Torn or leaking CV boots
• Axle play or noise from worn driveline components
• Service replacement after axle damage or seal contamination

Installation Notes

Verify rear left fitment and confirm the vehicle has Performance Suspension (Opt FE3) before installation. Use the included axle nut and match the M24x1.5 thread and 32 mm hex size during service. Check spline count, bolt pattern, and overall axle length against the original part before assembly. GM-86053 is listed for non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.

Quality Assurance

TrakMotive manufactures this CV axle shaft under ISO 9001:2008 and TS 16949:2009 certified processes. The part is covered by a limited lifetime warranty.
