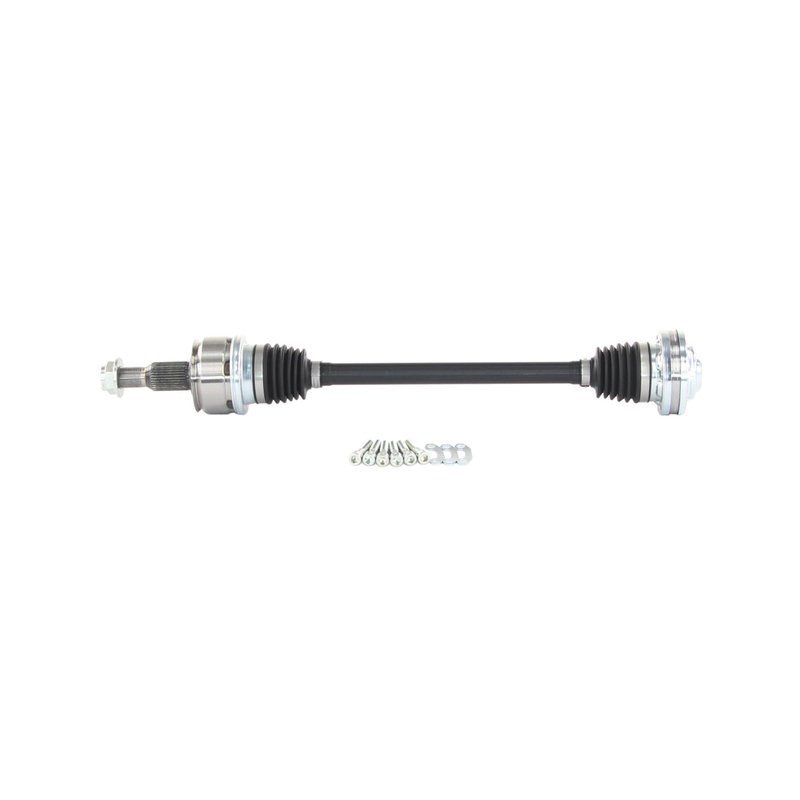

TrakMotive GM-86054 CV Axle Shaft - Rear Left
| Brand | TrakMotive GM-86054 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M27x2 |
| Grade Type | Premium |
| Inboard Bolt Head Size (in) | .31 |
| Inboard Bolt Head Size (mm) | 8 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2.375 |
| Inboard Bolt Length (mm) | 60 |
| Inboard Bolt Thread Size | M10x1.5 |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Bolt-on |
| Inboard Shaft Connection Style | Bolt-on |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 33 |
| Product line | CV Axle Shaft |
| Fits | Cadillac · 3 vehicles |
Bolt-on design. Simplifies installation with a direct-fit shaft connection.
Thermoplastic boots. Help protect the joints from dirt and moisture.
Premium grade. Built by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive GM-86054 for the same application. See all 1.
TrakMotive GM-86054 CV Axle Shaft
The TrakMotive GM-86054 CV axle shaft is a premium driveline replacement for the rear left position on select Cadillac CT5 models. It is built for 2020-2022 Cadillac CT5 applications without sport suspension and is engineered with the correct spline, bolt-on joint design, and axle nut specifications for a direct-fit service replacement.
Key Features
- Fits 2020-2022 Cadillac CT5, rear left, without sport suspension
- Premium-grade CV axle shaft for driveline repair
- Outboard shaft connection style: spline with 33 outboard splines
- Inboard joint type: bolt-on with 6 inboard shaft bolts
- Thermoplastic boot material on both inboard and outboard joints
- Includes axle nut with M27x2 thread, 36 mm hex size, and self-locking design
- Overall compressed length: 27.25 in; overall extended length: 30.19 in
- ABS tone ring not included; ABS ring tooth count: 0
Product Details
This TrakMotive CV axle shaft, part number GM-86054, is a direct replacement axle assembly for the rear left side of the Cadillac CT5. The bolt-on inboard joint and spline-style outboard connection are matched to the listed application, while the thermoplastic boots help protect the CV joints from road debris and contamination. TrakMotive identifies this axle as a premium-grade driveline component and notes ISO 9001:2008 and TS 16949:2009 certified manufacturing practices.
For shoppers searching for a rear left CV axle shaft for 2020, 2021, or 2022 Cadillac CT5 models without sport suspension, GM-86054 provides the correct fitment details in one part number. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
What This Part Helps Address
- Clicking or popping noises during turns caused by worn CV joints
- Vibration or shudder from a damaged axle shaft
- Grease leakage from torn or deteriorated CV boots
- Driveline noise from excessive axle wear
- Loss of smooth power transfer to the rear left wheel
Installation Notes
Verify the vehicle is a 2020-2022 Cadillac CT5, rear left, without sport suspension before installation. Confirm axle nut thread size, hex size, and overall axle length against the original part to ensure proper fit. Inspect the hub, seals, and mounting points for wear before installing the new axle shaft, and follow factory torque specifications during assembly.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also states that its products are manufactured under ISO 9001:2008 and TS 16949:2009 certified quality systems.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2022 | Cadillac | CT5 | AWD | Rear Left | Without Sport Suspension; CV Axle Shaft |
| 2021 | Cadillac | CT5 | AWD | Rear Left | Without Sport Suspension; CV Axle Shaft |
| 2020 | Cadillac | CT5 | AWD | Rear Left | Without Sport Suspension; CV Axle Shaft |
