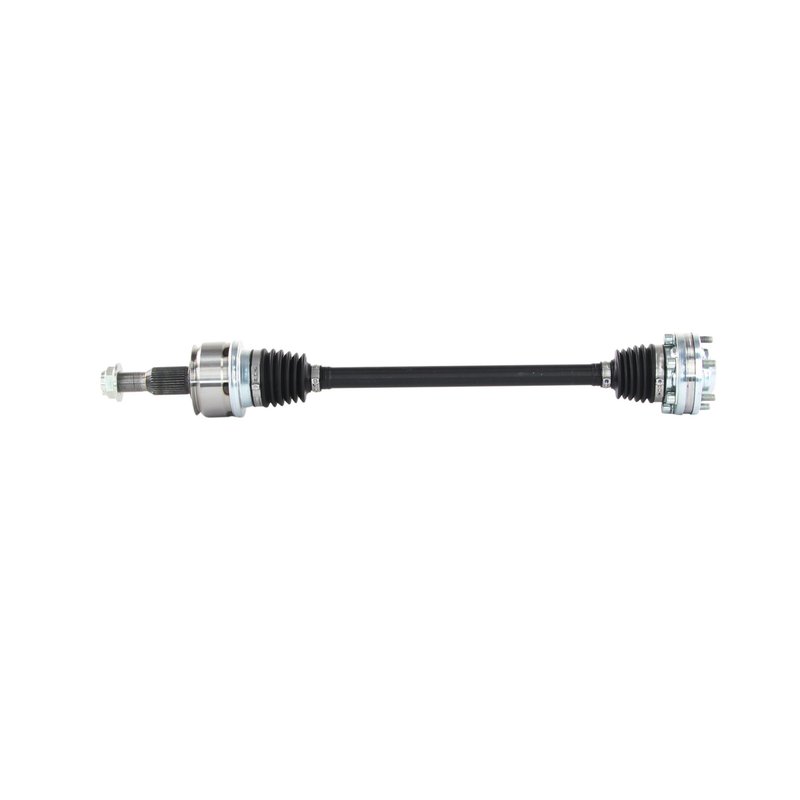

TrakMotive GM-86055 CV Axle Shaft - Rear Right

CV Axle Shaft for Rear Right CT5

TrakMotive GM-86055 is a premium CV axle shaft for the rear right position on select 2020-2023 Cadillac CT5 models without sport suspension. It is built as a bolt-on driveline replacement with a conventional outboard joint and thermoplastic boots for consistent service in the rear axle assembly.

Use this TrakMotive CV axle shaft when you need a direct replacement for a worn or damaged rear right axle on a Cadillac CT5. The GM-86055 part number is also useful when searching for a rear right Cadillac CT5 CV axle shaft, and GM-86055 appears again here for quick catalog matching.

Key Features

• Fits 2020-2023 Cadillac CT5, rear right, without sport suspension
• Premium-grade CV axle shaft for driveline service
• Bolt-on inboard joint with 6 inboard shaft bolts
• 33 outboard splines for the specified application
• Thermoplastic boot material at both joints
• Includes axle nut with M27x2 thread size and 36 mm hex
• No ABS tone ring included; 0 ABS ring tooth count
• Overall compressed length: 28.625 in. / 727 mm
• Overall extended length: 31.56 in. / 802 mm

Detailed Description

TrakMotive GM-86055 is a CV axle shaft engineered for the rear right side of the 2020-2023 Cadillac CT5 without sport suspension. The axle uses a bolt-on inboard connection, a spline-style outboard shaft connection, and a conventional outboard joint layout to match the listed application. TrakMotive positions this part within its CV Axle Shaft line for driveline and axle service where a direct-fit replacement is needed.

This axle includes a self-locking axle nut and is specified with a 36 mm socket size, M27x2 thread, and hex head design. The thermoplastic boot construction supports the joint assembly, while the listed compressed and extended lengths help confirm the correct rear right fitment before installation. GM-86055 is a practical search term for buyers looking for a Cadillac CT5 rear right CV axle shaft, and the part number GM-86055 can be used to verify catalog match.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Clicking or popping from a worn rear axle joint
• Vibration during acceleration from axle wear
• Grease leakage from damaged CV boots
• Driveline noise caused by spline or joint wear
• Rear right axle replacement after service damage

Installation Notes and Tips

Confirm the vehicle is a 2020-2023 Cadillac CT5, rear right, without sport suspension before ordering or installing. Verify axle length, spline count, and axle nut thread size against the removed part. Clean the hub and mating surfaces, and torque fasteners to the vehicle service specifications during installation.

Quality Assurance

TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certified company processes for manufacturing control.
