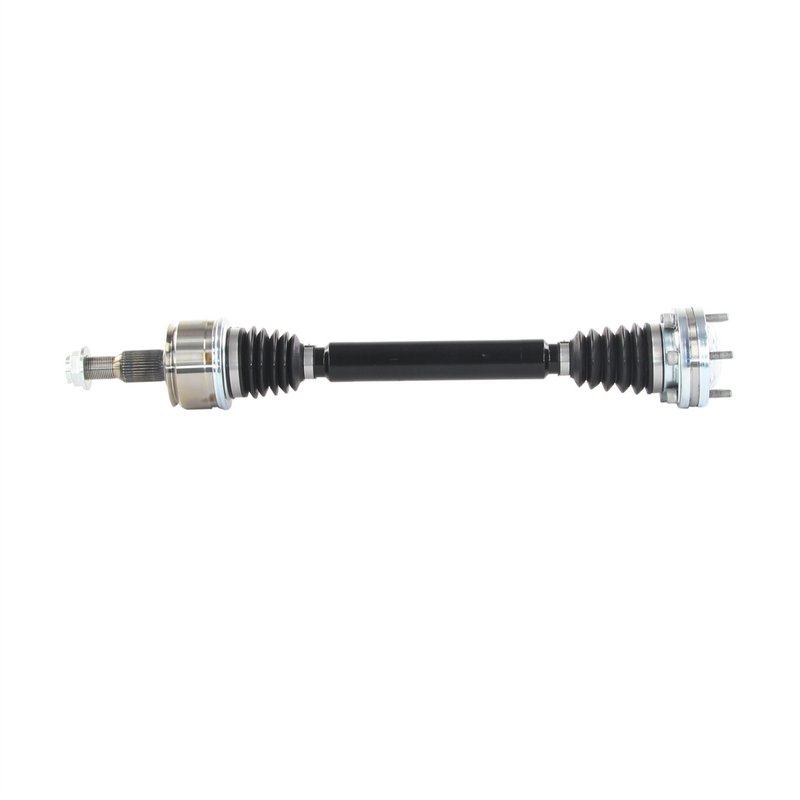

TrakMotive GM-86056 CV Axle Shaft - Rear Left
| Brand | TrakMotive GM-86056 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M27x2 |
| Grade Type | Premium |
| Inboard Bolt Head Size (in) | .31 |
| Inboard Bolt Head Size (mm) | 8 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2.75 |
| Inboard Bolt Length (mm) | 70 |
| Inboard Bolt Thread Size | M10x1.5 |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Bolt-on |
| Inboard Shaft Connection Style | Bolt-on |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 33 |
| Product line | CV Axle Shaft |
| Fits | Cadillac · 4 vehicles |
Bolt-on design. Simplifies installation with a direct-fit shaft connection.
Thermoplastic boots. Help protect the joints from dirt and moisture.
Premium grade. Built by an ISO and TS certified company.
Cross-references TrakMotive GM-86056 for the same application. See all 1.
Rear Left CV Axle Shaft for Cadillac CT5
TrakMotive GM-86056 is a premium CV axle shaft for the rear left position on 2020-2023 Cadillac CT5 models. It is built for standard duty replacement service and is specified for the rear left application on the Cadillac CT5.
Key Features
- Fits 2020-2023 Cadillac CT5, rear left
- Premium-grade CV axle shaft for driveline repair
- Overall compressed length: 27.25 in. (692 mm)
- Overall extended length: 29.75 in. (756 mm)
- Outboard spline count: 33
- Inboard joint uses a 6-bolt bolt-on connection
- Thermoplastic boot material on inboard and outboard joints
- Includes axle nut with self-lock design
- ABS tone ring not included; ABS ring tooth count: 0
Product Details
This TrakMotive CV axle shaft is engineered for the rear left side of the Cadillac CT5 and follows the GM-86056 application. The axle uses a spline-style outboard shaft connection and a bolt-on inboard joint with six M10x1.5 Allen-head bolts. The axle nut is included and uses an M27x2 thread with a 36 mm hex size. TrakMotive identifies this CV axle shaft as part of its CV Axle Shaft line and notes ISO 9001:2008 and TS 16949:2009 certified manufacturing practices.
This part cross-references TrakMotive GM-86056 for the same application.
Common Repair Uses
- Restores driveline function after CV joint wear
- Addresses clicking, vibration, or binding from a worn axle assembly
- Replaces a damaged rear left axle on Cadillac CT5 models
- Supports repair of torn boots, grease loss, or spline wear
- Helps correct axle-related noise during acceleration or cornering
Installation Notes
Verify rear left fitment before installation and confirm axle nut thread size, spline count, and bolt-on joint configuration against the original part. Inspect mating surfaces, fasteners, and hub components for wear before assembly. Follow factory torque specifications and service procedures for the Cadillac CT5.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer also states ISO 9001:2008 and TS 16949:2009 certified company standards.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2023 | Cadillac | CT5 | RWD | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Cadillac | CT5 | RWD | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Cadillac | CT5 | RWD | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Cadillac | CT5 | RWD | Rear Left | Standard Duty Replacement; CV Axle Shaft |
