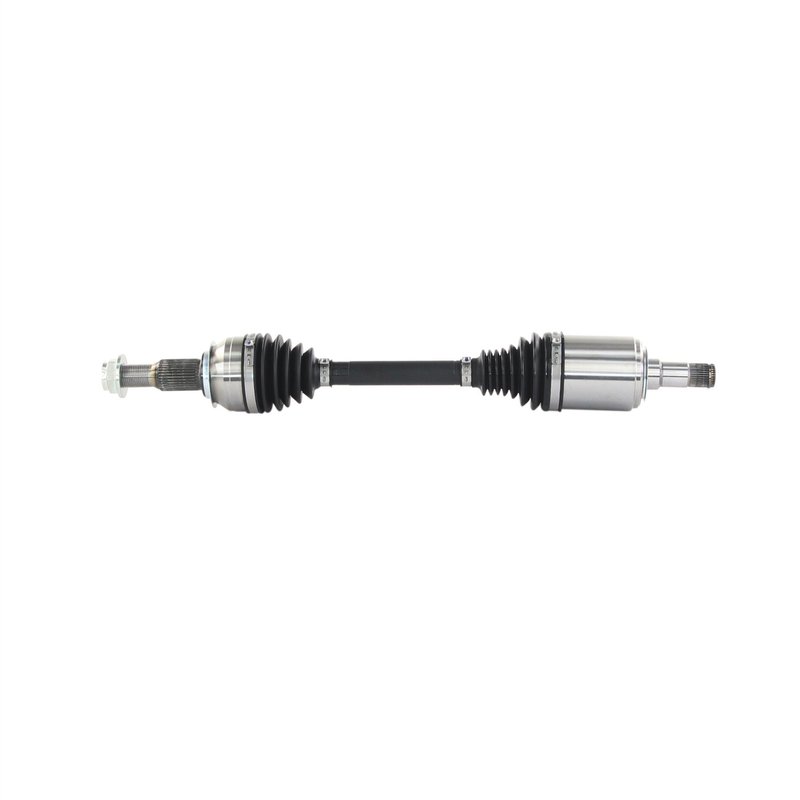

TrakMotive GM-86057 CV Axle Shaft - Front Right
| Brand | TrakMotive GM-86057 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M27x2 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.81 |
| Overall Compressed Length (mm) | 630 |
| Overall Extended Length (in) | 27.44 |
| Product line | AAR CV Axle Shaft |
| Fits | Cadillac · 2 vehicles |
OE-style replacement. Premium CV axle shaft with a direct-fit design.
Thermoplastic boots. Help protect the joints from dirt and moisture.
Includes axle nut. Self-locking hardware is ready for installation.
Cross-references TrakMotive GM-86057 for the same application. See all 1.
TrakMotive GM-86057 Front Right CV Axle Shaft
The TrakMotive GM-86057 is a premium CV axle shaft for the front right position on select Cadillac CT6 models. Built for OE AAR design applications, it supports smooth power transfer and consistent driveline operation in 2019-2020 Cadillac CT6 front right service.
Key Features
- Fits 2019-2020 Cadillac CT6, front right
- OE AAR design application
- Premium-grade CV axle shaft
- Inboard joint type: male with spline connection
- Outboard joint type: conventional with spline connection
- Thermoplastic boot material on inboard and outboard joints
- Includes axle nut with self-locking design
- ABS tone ring not included; ABS ring tooth count: 0
- Overall compressed length: 24.81 in. (630 mm)
- Overall extended length: 27.44 in. (698 mm)
Product Details
TrakMotive GM-86057 is engineered as an AAR CV axle shaft for the front right side of the Cadillac CT6. It features 34 inboard splines and 33 outboard splines, a male inboard joint, and a conventional outboard joint for direct driveline connection. The axle includes a 36 mm self-locking axle nut with M27x2 thread size, and the shaft is built with thermoplastic boot materials for both joints. This part number, GM-86057, is a direct reference for 2019-2020 Cadillac CT6 front right axle replacement needs.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration or shudder during acceleration
- Grease leakage from damaged axle boots
- Noise from a worn front right driveline assembly
- Loss of smooth power delivery at the wheel
Installation Notes
Verify spline count, axle length, and axle nut thread size before installation. Confirm the vehicle is a 2019-2020 Cadillac CT6, front right, and compare the OE AAR design details to the removed axle. The included axle nut uses a 36 mm socket size and M27x2 thread specification. GM-86057 is listed for non-ABS applications unless otherwise noted by the vehicle configuration.
Quality Assurance
TrakMotive states that this axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled manufacturing and quality management for driveline components.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2020 | Cadillac | CT6 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | Cadillac | CT6 | Front Right | OE AAR design; AAR CV Axle Shaft |
