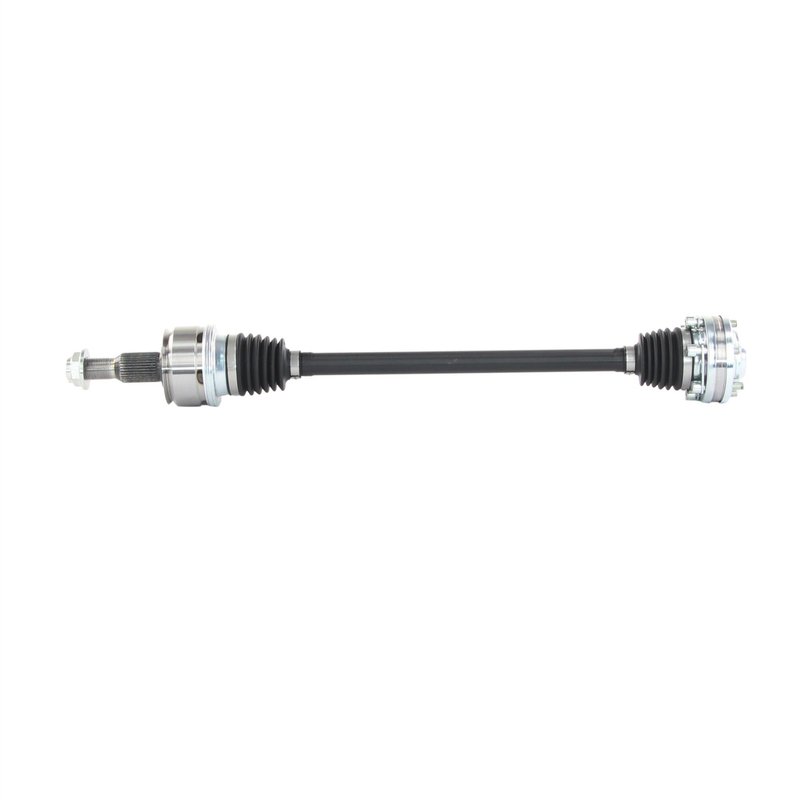

TrakMotive GM-86059 CV Axle Shaft - Rear Right
| Brand | TrakMotive GM-86059 |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M27x2 |
| Grade Type | Premium |
| Inboard Bolt Head Size (in) | .31 |
| Inboard Bolt Head Size (mm) | 8 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2.375 |
| Inboard Bolt Length (mm) | 60 |
| Inboard Bolt Thread Size | M10x1.5 |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Bolt-on |
| Inboard Shaft Connection Style | Bolt-on |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 33 |
| Product line | CV Axle Shaft |
| Fits | Cadillac · 1 vehicle |
Bolt-on design. Simplifies installation with a direct-fit shaft connection.
Thermoplastic boots. Help protect the joints from dirt and moisture.
Premium grade. Built by an ISO and TS certified company.
Cross-references TrakMotive GM-86059 for the same application. See all 1.
Rear Right CV Axle Shaft for 2020 Cadillac CT5
TrakMotive GM-86059 is a premium CV axle shaft for the rear right position on the 2020 Cadillac CT5 with Sport Suspension. It is built for direct driveline service where a spline-to-hub connection and bolt-on inboard joint are required.
Key Features
- Fits 2020 Cadillac CT5, rear right, with Sport Suspension
- Premium-grade CV axle shaft for driveline replacement
- Outboard shaft connection style: spline
- Inboard joint type: bolt-on with 6 inboard shaft bolts
- Outboard splines: 33
- Thermoplastic boots on both joints
- Axle nut included; hex head, self-locking type
- Overall compressed length: 29.81 in (757 mm)
- Overall extended length: 32.75 in (832 mm)
Product Details
This TrakMotive CV axle shaft, part number GM-86059, is engineered for the rear right driveline position on the 2020 Cadillac CT5 with Sport Suspension. The axle uses a conventional outboard joint, a bolt-on inboard joint, and a 33-spline outboard connection to match the specified application. TrakMotive identifies this CV axle shaft as part of its CV Axle Shaft line, and the company notes ISO 9001:2008 and TS 16949:2009 certification for its manufacturing system. GM-86059 is also referenced by TrakMotive under the same part number for interchange purposes.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Replacement Reasons
- Clicking or popping from the rear axle area during acceleration or turning
- Vibration or shudder from a worn CV joint or shaft assembly
- Boot damage that has allowed grease loss or contamination
- Excessive driveline play at the rear right wheel end
- Noise or binding from a failing axle shaft on a 2020 Cadillac CT5 with Sport Suspension
Installation Notes
Confirm rear right fitment and Sport Suspension configuration before installation. Verify axle nut thread size M27x2 and socket size 36 mm during service. Inspect hub, seals, and mating surfaces for wear or contamination before installing the new axle shaft. Follow factory torque specifications for the axle nut and inboard fasteners.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also states that ABS axles fit non-ABS applications unless otherwise noted, and that its manufacturing is certified to ISO 9001:2008 and TS 16949:2009 standards.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2020 | Cadillac | CT5 | AWD | Rear Right | With Sport Suspension; CV Axle Shaft |
