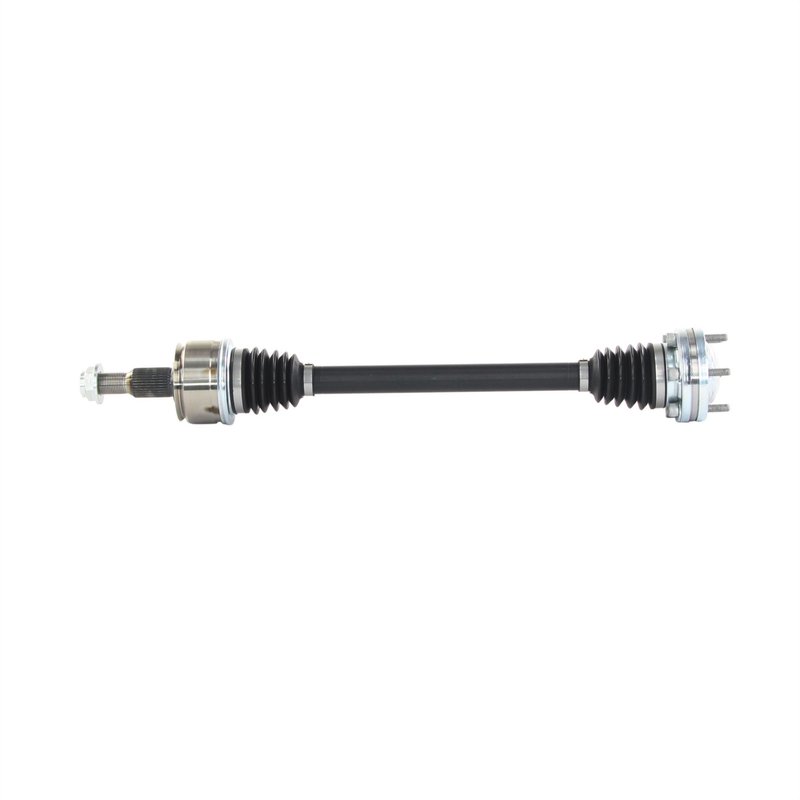

TrakMotive GM-86060 CV Axle Shaft - Rear Right

Rear Right CV Axle Shaft for Cadillac CT5

TrakMotive GM-86060 is a premium CV axle shaft for the rear right position on 2020-2023 Cadillac CT5 models. It is built for standard duty replacement service and matches the application with the correct spline, bolt-on joint design, and included axle nut.

Key Features

• Fits 2020-2023 Cadillac CT5, rear right
• Premium-grade CV axle shaft for driveline repair
• Outboard shaft connection style: spline with 33 outboard splines
• Inboard joint type: bolt-on with 6 inboard shaft bolts
• Thermoplastic boot material on both inboard and outboard joints
• Overall compressed length: 28.625 in. / 727 mm
• Overall extended length: 31.56 in. / 801 mm
• Includes axle nut with M27x2 thread, 36 mm hex size, and self-locking design
• No ABS tone ring included; ABS ring tooth count: 0

Product Details

TrakMotive CV Axle Shaft GM-86060 is engineered for the rear right side of the Cadillac CT5 and follows the OE-style layout for this application. The axle uses a conventional outboard joint, a bolt-on inboard joint, and thermoplastic boots to support driveline movement while maintaining proper fitment. TrakMotive identifies this part as a standard duty replacement for the 2020-2023 Cadillac CT5, and the part number GM-86060 is the reference to use when matching this exact application.

TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline replacement parts for passenger vehicles. GM-86060 is manufactured by an ISO 9001:2008 and TS 16949:2009 certified company, and the product is backed by a limited lifetime warranty. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Uses

• Restores a worn or noisy rear right CV axle on a Cadillac CT5
• Addresses vibration during acceleration or cruising
• Replaces a damaged axle shaft with spline or joint wear
• Corrects clicking, clunking, or driveline noise from the rear axle area
• Supports repair after boot failure or grease loss

Installation Notes

Verify rear right fitment before installation and confirm axle nut thread size, hex size, and overall length against the original part. Inspect the mating hub and inboard connection surfaces for wear, and replace any damaged hardware or seals as needed during service. Use proper torque procedures for the axle nut and inboard fasteners to help ensure correct operation.

Quality Assurance

TrakMotive GM-86060 is produced by an ISO 9001:2008 and TS 16949:2009 certified company and includes a limited lifetime warranty. It is built as a premium replacement CV axle shaft for the Cadillac CT5 rear right application.
