OE Quality
60-Day Returns
TrakMotivePart #: GM-86063

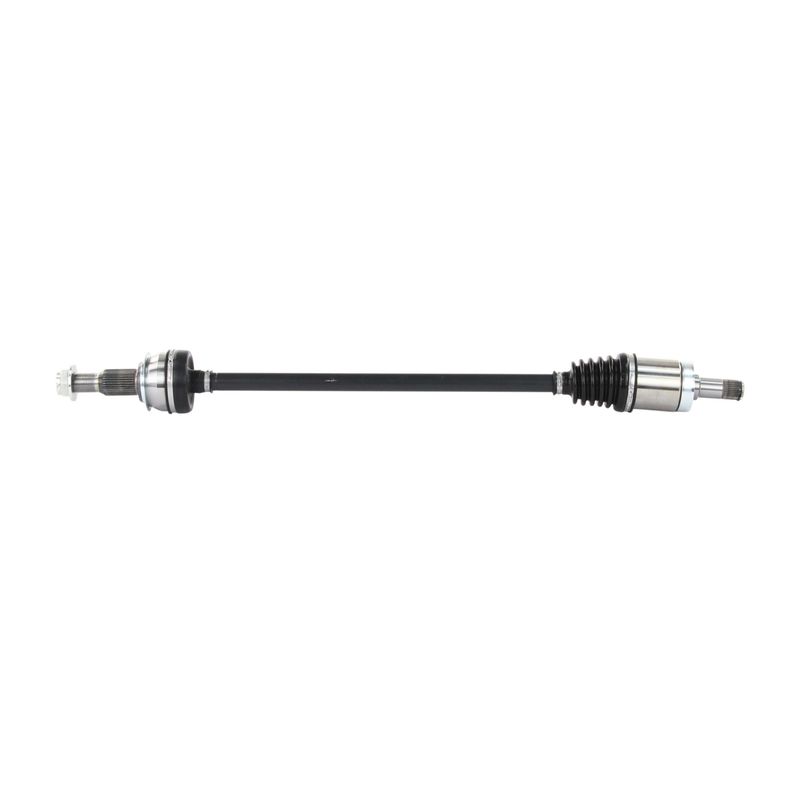

TrakMotive GM-86063 CV Axle Shaft - Rear Left
14 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$130.65Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
CV Axle Shaft, Rear Left
Fitment: Buick and Chevrolet, Blazer, Enclave, Traverse, and Traverse Limited
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all CV Axle Shaft options
TrakMotive GM-86063 CV Axle Shaft - Rear Left
| Brand | TrakMotive |
|---|---|
| Part Number | GM-86063 |
| Position | CV Axle Shaft, Rear Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 7/8 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 3/8 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 5/8 |
| Axle Nut Length (mm) | 41.22 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M27*2 |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 34 11/16 |
| Overall Compressed Length (mm) | 881 |
| Overall Extended Length (mm) | 928.5 |
| Overall Extended Length(In) | 36 9/16 |
This part fits 14 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2024 | Chevrolet | Traverse Limited | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2023 | Buick | Enclave | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2023 | Chevrolet | Traverse | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Buick | Enclave | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Chevrolet | Traverse | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Buick | Enclave | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Chevrolet | Traverse | Rear Left | Without Electronic Locking Differential; CV Axle Shaft |
| 2020 | Buick | Enclave | Rear Left | Without Electronic Locking Differential; CV Axle Shaft |
| 2020 | Chevrolet | Traverse | Rear Left | Without Electronic Locking Differential; CV Axle Shaft |
| 2019 | Buick | Enclave | Rear Left | Without Electronic Locking Differential; CV Axle Shaft |
| 2019 | Chevrolet | Blazer | Rear Left | Without Electronic Locking Differential; CV Axle Shaft |
| 2019 | Chevrolet | Traverse | Rear Left | Without Electronic Locking Differential; CV Axle Shaft |
| 2018 | Buick | Enclave | Rear Left | Without Electronic Locking Differential; CV Axle Shaft |
| 2018 | Chevrolet | Traverse | Rear Left | Without Electronic Locking Differential; CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
GM-86063NCV10224NCV17013
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
