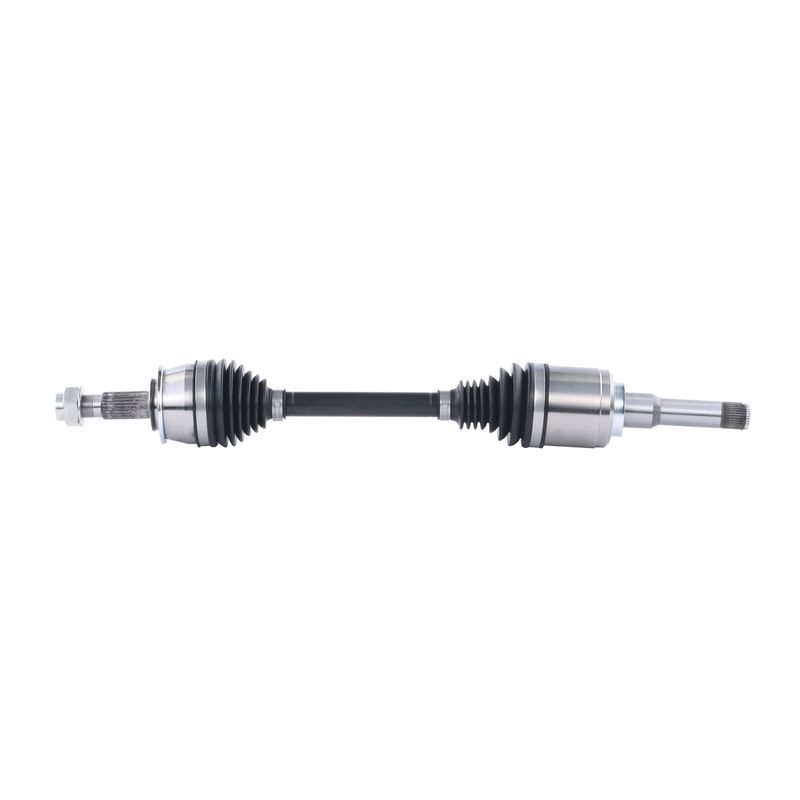

TrakMotive GM-86065 CV Axle Shaft - Front Left
| Brand | TrakMotive GM-86065 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1.06 |
| Axle Nut Height (mm) | 27 |
| Axle Nut Hex Size (in) | 1.44 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24x1.5 |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.31 |
| Overall Compressed Length (mm) | 644 |
| Overall Extended Length (in) | 27.31 |
| Overall Extended Length (mm) | 694 |
| Overall Extended Length(In) | 27.31 |
| Product line | CV Axle Shaft |
| Fits | Buick · 5 vehicles |
CV axle shaft. Direct replacement for driveline and axle applications.
Spline connections. 34 inboard and 25 outboard splines for secure engagement.
Axle nut included. Hex nut with stake locking and M24x1.5 thread size.
Cross-references TrakMotive GM-86065 for the same application. See all 1.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Front Left CV Axle Shaft for Buick Encore
TrakMotive GM-86065 is a front left CV axle shaft for select Buick Encore applications. It is built with a 34-spline inboard connection and 25-spline outboard connection, and it includes the axle nut for service replacement. Fits 2019-2022 Buick Encore, front left, and fits 2018 Buick Encore, front left, ID ACP8.
Key Features
- Part number GM-86065 CV axle shaft
- Front left position for Buick Encore applications
- Male inboard joint with spline shaft connection
- Conventional outboard joint design
- 34 inboard splines and 25 outboard splines
- Axle nut included with M24x1.5 thread, 36 mm hex size, and stake locking type
- No ABS tone ring included; ABS ring tooth count is 0
- Overall compressed length: 25.31 in. Overall extended length: 27.31 in.
Product Details
This TrakMotive CV axle shaft is a direct driveline replacement for the front left side of the Buick Encore. GM-86065 uses a spline-style shaft connection at both ends, a male inboard joint, and a conventional outboard joint to match the listed applications. The axle nut is included, and the unit is built to the stated compressed and extended lengths for proper fitment on the specified Encore models. TrakMotive’s CV Axle Shaft line focuses on replacement driveline components for passenger vehicles, and this part is backed by the brand’s manufacturing standards.
This part cross-references TrakMotive GM-86065 for the same application.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration or shudder during acceleration
- Grease leakage from a damaged axle boot
- Excessive driveline play or noise from a worn axle shaft
- Front left axle failure on a Buick Encore
Installation Notes
Verify spline count, axle nut thread size, and overall length before installation. Confirm front left placement and match the vehicle’s ABS configuration, since this axle does not include an ABS tone ring. Always torque the axle nut to the vehicle manufacturer’s specification and follow proper staking procedure where required.
Quality Assurance
TrakMotive states that this CV axle shaft is produced by an ISO 9001:2008 and TS 16949:2009 certified company. Manufacturer coverage includes a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2022 | Buick | Encore | FWD | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Buick | Encore | FWD | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Buick | Encore | FWD | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Buick | Encore | FWD | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Buick | Encore | FWD | Front Left | ID ACP8; CV Axle Shaft |
