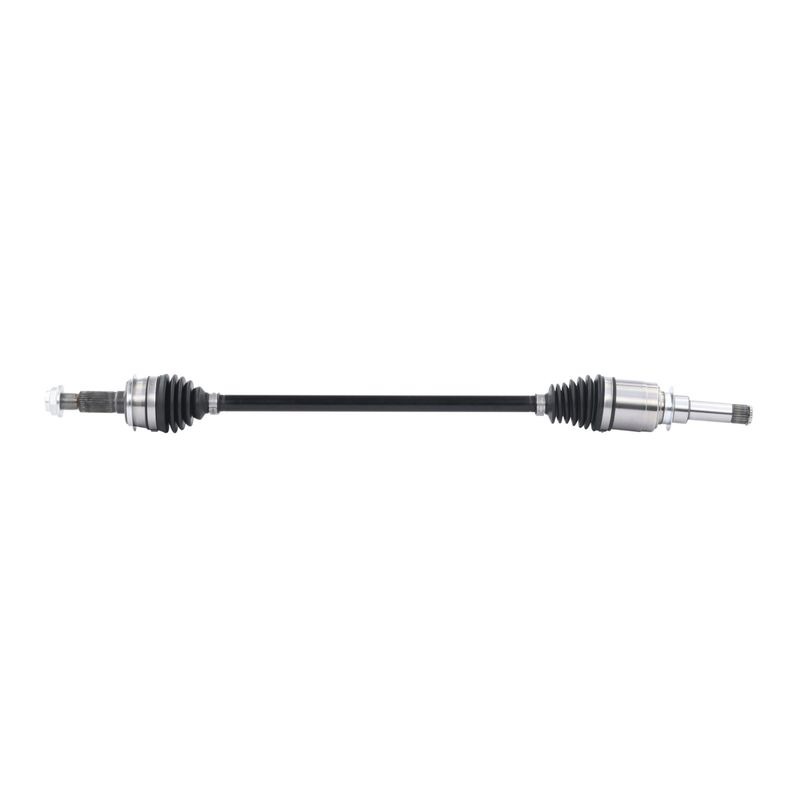

TrakMotive GM-86074 CV Axle Shaft - Rear Right

CV axle shaft for rear right applications

The TrakMotive GM-86074 is a CV axle shaft built for specific rear right applications with standard-duty replacement fitment. It is listed for the Buick Encore GX and Chevrolet Trailblazer, with application notes that should be matched carefully before ordering.

Key features

• CV axle shaft for driveline service and torque transfer.
• Includes a self-lock axle nut with M22x1.5 thread size.
• Thermoplastic boot material on both joints for consistent sealing.
• 22 inboard splines and 33 outboard splines for the listed fitment.
• No ABS tone ring included; ABS ring tooth count is 0.
• Overall compressed length is 32.63 in, with 34.5 in extended length.

Detailed description

TrakMotive GM-86074 is a replacement CV axle shaft for rear right use on the Buick Encore GX and Chevrolet Trailblazer. The axle uses a spline-style shaft connection, a male inboard joint, and a conventional outboard joint, with thermoplastic boots at both ends. The included axle nut is a hex-style, self-lock design sized at 32 mm across flats.

This part cross-references TrakMotive GM-86074 for the same application. TrakMotive identifies this axle as an ABS axle that fits non-ABS applications unless otherwise noted, and the company states ISO 9001:2008 and TS 16949:2009 certification. For buyers searching for a Buick Encore GX rear right CV axle shaft or Chevrolet Trailblazer rear right axle replacement, GM-86074 is the listed part number.

What this part is used for

• Replacing a worn or noisy CV axle shaft.
• Restoring driveline power transfer at the rear right position.
• Addressing spline wear or joint-related vibration.
• Replacing an axle assembly with the listed length and spline count.

Installation notes and tips

Verify the rear right position, model year, and the 12/06/19 build note for the 2020 Buick Encore GX before installation. Confirm the axle nut thread size, hex size, and overall length against the removed part to ensure correct application. Match the vehicle’s ABS configuration to the product notes before ordering.

Quality assurance

TrakMotive lists a limited lifetime warranty for this CV axle shaft. The brand also states ISO 9001:2008 and TS 16949:2009 certification for its manufacturing system.
