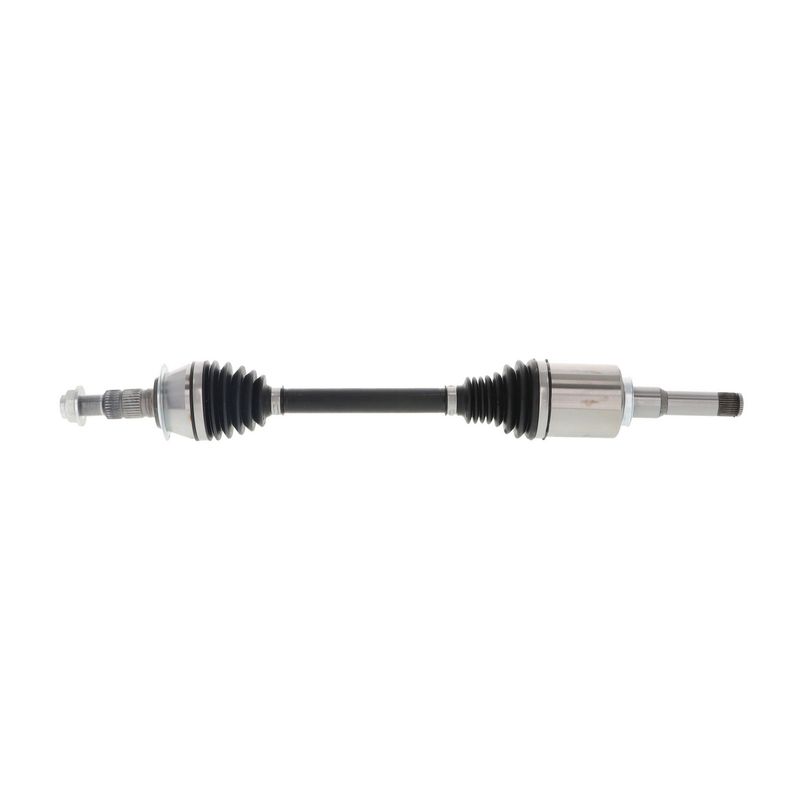

AAR CV Axle ShaftTrakMotive GM-86075 CV Axle Shaft - Rear Left
| Brand | TrakMotive GM-86075 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.88 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M22x1.5 |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 27.75 |
| Overall Compressed Length (mm) | 705 |
| Overall Extended Length (In) | 30.19 |
| Overall Extended Length (mm) | 767 |
| Product line | AAR CV Axle Shaft |
| Fits | Buick and Chevrolet · 7 vehicles |
Cross-references TrakMotive GM-86075 for the same application. See all 1.
$144.90Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options
TrakMotive GM-86075 CV Axle Shaft - Rear Left
This part fits 7 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2023 | Buick | Encore GX | AWD | Rear Left | OE AAR design; AAR CV Axle Shaft |
| 2023 | Chevrolet | Trailblazer | AWD | Rear Left | OE AAR design; AAR CV Axle Shaft |
| 2022 | Buick | Encore GX | AWD | Rear Left | OE AAR design; AAR CV Axle Shaft |
| 2022 | Chevrolet | Trailblazer | AWD | Rear Left | OE AAR design; AAR CV Axle Shaft |
| 2021 | Buick | Encore GX | AWD | Rear Left | OE AAR design; AAR CV Axle Shaft |
| 2021 | Chevrolet | Trailblazer | AWD | Rear Left | OE AAR design; AAR CV Axle Shaft |
| 2020 | Buick | Encore GX | AWD | Rear Left | OE AAR design; AAR CV Axle Shaft |
| No rows match your filter. | |||||
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
