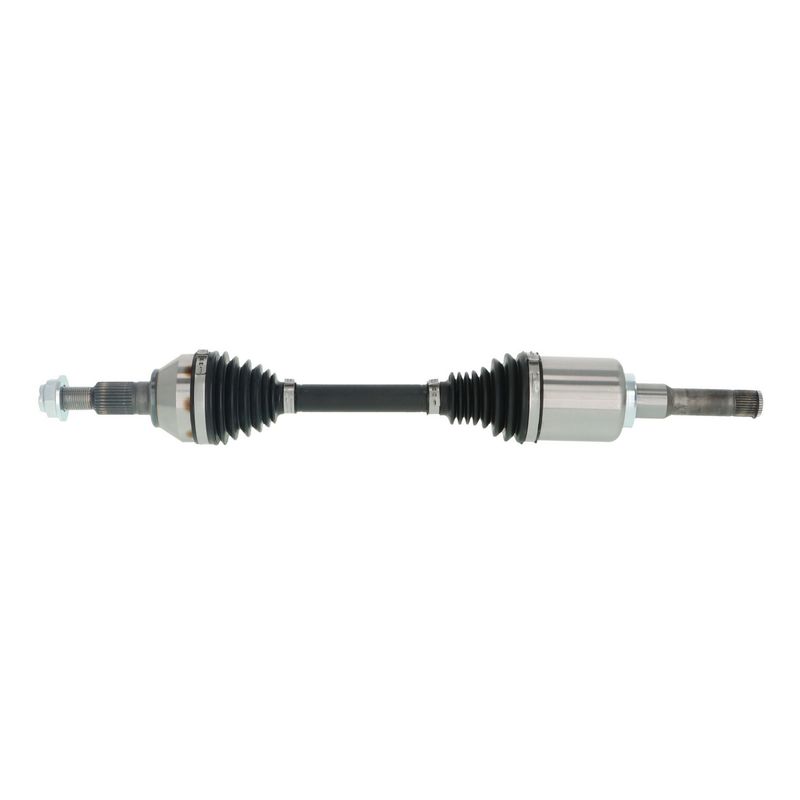

TrakMotive GM-86078 CV Axle Shaft - Front Left
| Brand | TrakMotive GM-86078 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.38 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.63 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M24x2 |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.19 |
| Overall Compressed Length (mm) | 665 |
| Overall Extended Length (In) | 28.63 |
| Overall Extended Length (mm) | 728 |
| Product line | CV Axle Shaft |
| Fits | Chevrolet · 1 vehicle |
OE-style replacement. Built as a direct driveline service part for the listed application.
Thermoplastic boots. Both joints use thermoplastic boot material for sealed joint protection.
Includes axle nut. Self-locking nut with M24x2 thread and 36 mm hex size.
Cross-references TrakMotive GM-86078 for the same application. See all 1.
CV Axle Shaft for Captiva Sport
This TrakMotive CV axle shaft is built for a direct driveline replacement on the specified application. It matches the listed spline counts, axle nut specifications, and overall length for a precise service fit. Part number GM-86078 is a practical choice for restoring smooth power transfer in the Chevrolet Captiva Sport.
Key Features
- Thermoplastic boots on both joints for durable sealing.
- Includes the axle nut with a self-locking design.
- 34 inboard splines and 30 outboard splines for the listed fitment.
- ABS tone ring not included for non-ABS applications.
- Overall compressed length of 26.19 in and extended length of 28.63 in.
Detailed Description
TrakMotive GM-86078 is a CV axle shaft engineered around the dimensions and connection details required for the 2012 Chevrolet Captiva Sport, front left. The axle uses a male inboard joint with spline connection, a conventional outboard joint, and thermoplastic boot material to support consistent joint protection. The included axle nut features an M24x2 thread, 36 mm hex size, and self-locking design. This part cross-references TrakMotive GM-86078 for the same application.
What It Is Used For
- Replacing a worn or noisy CV axle shaft.
- Restoring drivetrain engagement after spline or joint wear.
- Addressing vibration during acceleration.
- Correcting clicking or popping from a failing axle assembly.
- Replacing a damaged axle nut or missing axle nut on the listed application.
Installation Notes and Tips
Fits 2012 Chevrolet Captiva Sport, front left. Verify spline count, axle nut thread size, and compressed length before installation. This application is listed as a standard duty replacement and is intended for non-ABS use unless otherwise noted in the vehicle catalog.
Quality Assurance
TrakMotive lists a limited lifetime warranty for this CV axle shaft. The company is ISO 9001:2008 and TS 16949:2009 certified, supporting controlled manufacturing and quality processes.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2012 | Chevrolet | Captiva Sport | 3.0L | V6 | Front Left | Standard Duty Replacement; CV Axle Shaft |
