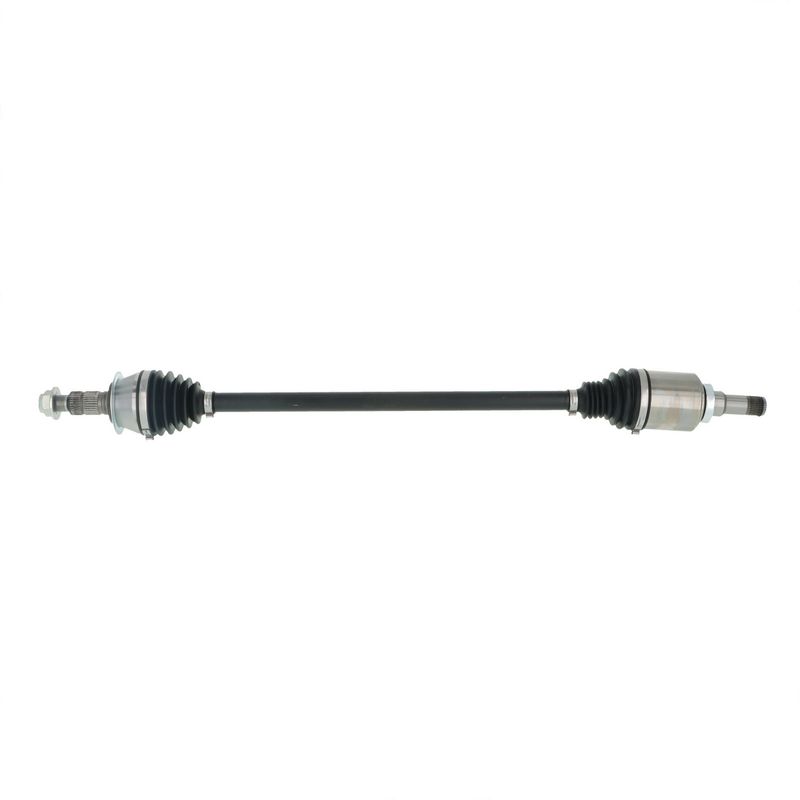

TrakMotive GM-86081 CV Axle Shaft - Front Right

Overview

TrakMotive GM-86081 is a front right CV axle shaft built for standard-duty replacement applications. It is engineered with spline connections, thermoplastic boots, and a self-locking axle nut for a direct driveline service part.

Compatible With Buick Encore GX and Chevrolet Trailblazer applications, this CV axle shaft is listed for non-ABS use unless otherwise noted. The GM-86081 part number is also useful when verifying the correct axle for service work on these platforms.

Key Features

• CV axle shaft for driveline replacement service
• Thermoplastic inboard and outboard boot materials
• 34 inboard splines and 30 outboard splines
• Includes a self-locking axle nut with M22x1.5 thread
• ABS tone ring not included
• Built for standard-duty replacement applications

Detailed Description

The TrakMotive GM-86081 is a CV axle shaft for front right applications on the Buick Encore GX and Chevrolet Trailblazer. It uses a male inboard joint with spline connection, a conventional outboard joint, and thermoplastic boot construction to support driveline articulation and joint protection. The axle measures 36.88 inches compressed and 39.13 inches extended, giving it the correct length range for the listed fitments. GM-86081 is identified as a non-ABS axle unless otherwise noted, and the included axle nut uses a 32 mm hex size with self-locking design.

This part cross-references TrakMotive GM-86081 for the same application.

What It Is Used For

• Replacing a worn or damaged CV axle shaft
• Restoring driveline transfer between the transaxle and wheel hub
• Addressing clicking or vibration from a failing axle assembly
• Correcting boot wear or joint-related drivability concerns
• Servicing non-ABS axle applications on the listed vehicles

Installation Notes and Quality Assurance

Verify front right fitment, spline count, and axle length before installation. Confirm whether the vehicle uses a non-ABS axle configuration, since this axle is listed for non-ABS applications unless otherwise noted. The included axle nut should be matched to the specified thread and hex size during service.

TrakMotive identifies this axle shaft under part number GM-86081 and states a limited lifetime warranty. The company is also listed as ISO 9001:2008 and TS 16949:2009 certified.
