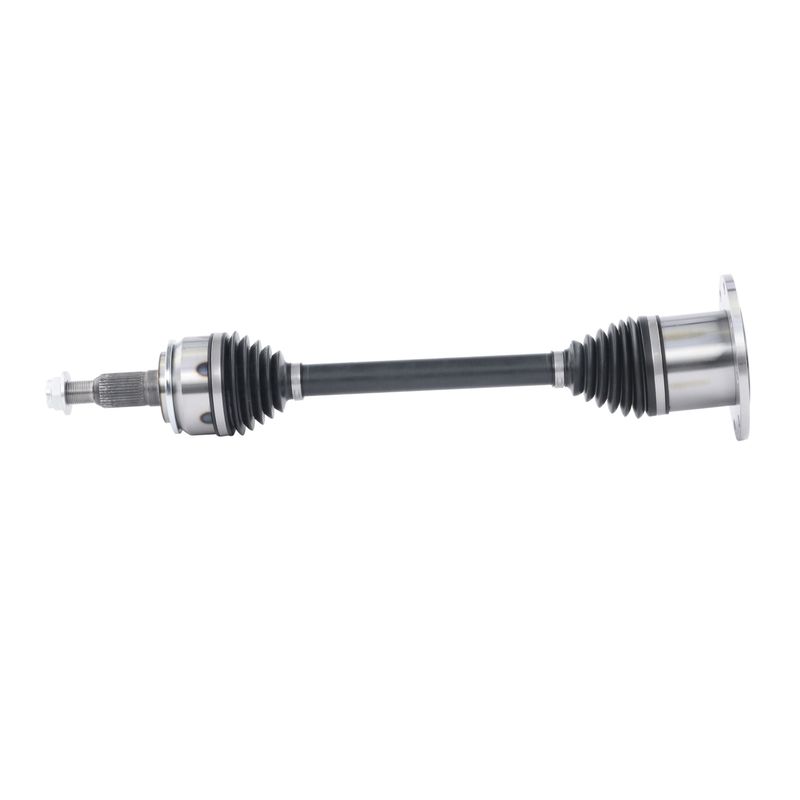

TrakMotive GM-86082 CV Axle Shaft - Rear Right
| Brand | TrakMotive GM-86082 |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.88 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.38 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.63 |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M27x2 |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Bolt-on |
| Number Of Inboard Joint Bolt Holes | 8 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 28.63 |
| Overall Compressed Length (mm) | 727 |
| Overall Extended Length (In) | 31 |
| Overall Extended Length (mm) | 787 |
| Product line | CV Axle Shaft |
| Fits | Cadillac · 3 vehicles |
OE-style replacement. Direct-fit CV axle shaft for standard duty service applications.
Secure connection design. Bolt-on inboard flange and spline outboard joint for accurate engagement.
Certified manufacturing. Built by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive GM-86082 for the same application. See all 1.
Overview
TrakMotive GM-86082 is a rear right CV axle shaft for the 2023-2025 Cadillac Escalade standard duty replacement application. It is built with a bolt-on inboard connection, a spline outboard connection, and a self-locking axle nut for a direct service replacement.
Key Features
- Fits 2023-2025 Cadillac Escalade, rear right.
- CV axle shaft with 36 outboard splines and an 8-bolt inboard flange.
- Thermoplastic boots on both joints help protect the assembly from contamination.
- Includes a self-locking axle nut with M27x2 thread size.
- ABS tone ring is not included for non-ABS applications.
Detailed Description
The TrakMotive GM-86082 CV axle shaft is engineered for the rear right position on the Cadillac Escalade and matches the standard duty replacement application listed in the fitment data. Its conventional outboard joint, bolt-on inboard shaft connection, and specified compressed and extended lengths support accurate replacement of the original driveline component. The GM-86082 part number is useful when verifying the correct axle for service work, and GM-86082 should be matched to the vehicle application before installation.
TrakMotive identifies this CV axle shaft as part of its CV Axle Shaft line. The design details, including thermoplastic boot material and the included axle nut, make it a practical replacement for driveline service where the original axle has worn joints, damaged boots, or spline-related fitment issues. This part cross-references TrakMotive GM-86082 for the same application.
Common Uses
- Replacing a worn or noisy CV axle shaft.
- Addressing torn boots that can lead to joint contamination.
- Correcting vibration or clicking from a failing axle assembly.
- Restoring proper driveline engagement after spline or flange wear.
Installation Notes
Compatible With 2023-2025 Cadillac Escalade, rear right. Verify the axle nut thread size, spline count, and overall length against the removed part before installation. The ABS axle note indicates this axle fits non-ABS applications unless otherwise noted in the catalog data. Professional installation and final torque checks are recommended.
Quality Assurance
TrakMotive lists this axle shaft as an ISO 9001:2008 and TS 16949:2009 certified product. The manufacturer also states a limited lifetime warranty.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2025 | Cadillac | Escalade | V | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2024 | Cadillac | Escalade | V | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2023 | Cadillac | Escalade | V | Rear Right | Standard Duty Replacement; CV Axle Shaft |
