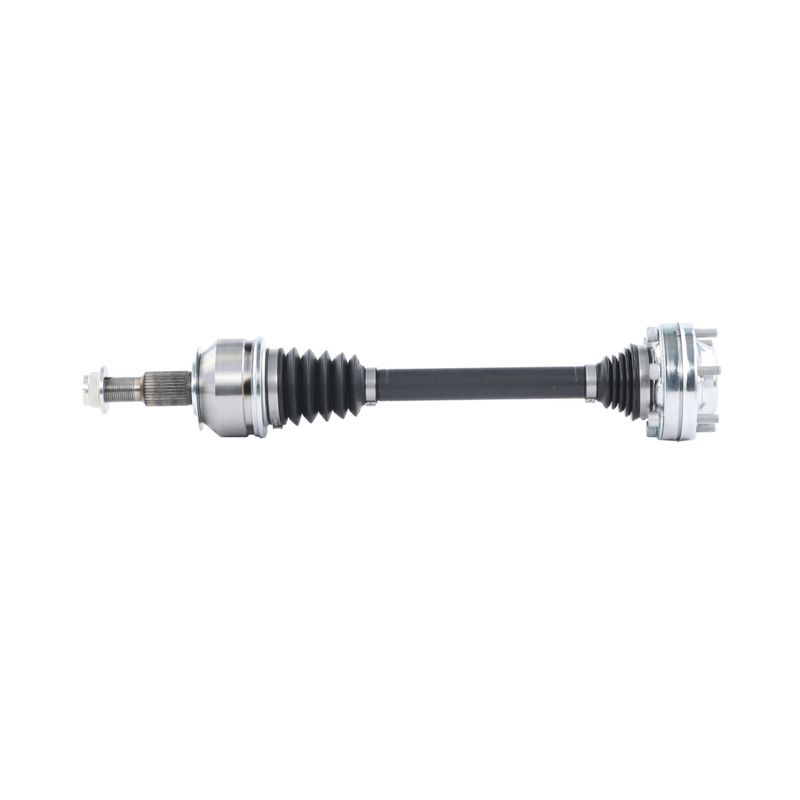

TrakMotive GM-86083 CV Axle Shaft - Rear Left
| Brand | TrakMotive GM-86083 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.88 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.38 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.63 |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M27x2 |
| Inboard Bolt Head Size (in) | 0.31 |
| Inboard Bolt Head Size (mm) | 8 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2.75 |
| Inboard Bolt Length (mm) | 70 |
| Inboard Bolt Thread Size | M10x1.5 |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Bolt-on |
| Inboard Shaft Connection Style | Bolt-on |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.44 |
| Overall Compressed Length (mm) | 595 |
| Overall Extended Length (In) | 25.81 |
| Product line | CV Axle Shaft |
| Fits | Chevrolet · 1 vehicle |
OE-style replacement. Application-specific CV axle shaft with direct-fit connection details.
Bolt-on inboard joint. Six-bolt connection and spline-style outboard end for service matching.
Quality-certified manufacturing. Built by a company certified to ISO 9001:2008 and TS 16949:2009.
Cross-references TrakMotive GM-86083 for the same application. See all 1.
CV axle shaft for Corvette
TrakMotive GM-86083 is a CV axle shaft for a direct replacement application on the rear left side. It is built with a bolt-on inboard connection, a spline-style outboard connection, and a thermoplastic boot design for the joint assemblies.
Key features
- Fits 2023 Chevrolet Corvette, rear left.
- Includes a self-locking axle nut with M27x2 thread size.
- ABS tone ring is not included for non-ABS applications.
- 33 outboard splines for the specified application.
- Overall compressed length: 23.44 in. Overall extended length: 25.81 in.
Detailed description
This TrakMotive CV axle shaft, part number GM-86083, is specified for the 2023 Chevrolet Corvette rear left position. The axle uses a bolt-on inboard joint with six bolt holes and an Allen-head fastener pattern, plus a conventional outboard joint with a spline connection. The included axle nut uses a 36 mm hex size and self-locking design for service replacement work. TrakMotive GM-86083 is a fitment-specific driveline component for Corvette applications that require the listed dimensions and connection styles.
TrakMotive’s CV axle shaft line focuses on application-specific driveline replacement parts with the connection styles and dimensions needed for proper service matching. Part number GM-86083 follows that approach with the listed axle nut, spline count, and joint construction details.
What it is used for
- Replacing a worn or damaged CV axle shaft.
- Addressing clicking or vibration caused by joint wear.
- Restoring driveline connection integrity after boot or joint failure.
- Correcting fitment issues when the axle length or spline count no longer matches the application.
Installation notes and tips
Verify the vehicle is a 2023 Chevrolet Corvette with the rear left application before ordering. Confirm the axle nut thread size, hex size, spline count, and overall length against the removed part. This axle is listed for non-ABS applications unless otherwise noted, and the ABS tone ring is not included.
Quality assurance
TrakMotive lists a limited lifetime warranty for this CV axle shaft. The company is certified to ISO 9001:2008 and TS 16949:2009 quality standards.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2023 | Chevrolet | Corvette | Z06 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
