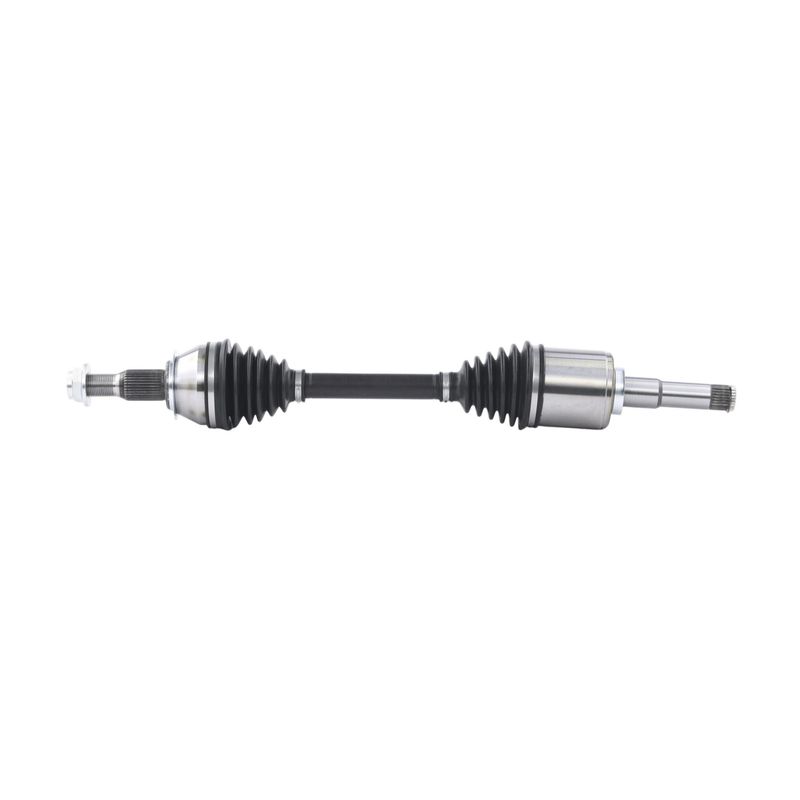

TrakMotive GM-86087 CV Axle Shaft - Front Left
| Brand | TrakMotive GM-86087 |
|---|---|
| Position | Front Left |
| ABS Tone Ring Included | No |
| ABS Tone Ring Tooth Quantity | 0 |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.88 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.38 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.63 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 41 |
| Axle Nut Thread Size | M27x2 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 28.25 |
| Overall Compressed Length (mm) | 718 |
| Overall Extended Length (in) | 31.06 |
| Overall Extended Length (mm) | 788 |
| Product line | AAR CV Axle Shaft |
| Fits | GMC · 1 vehicle |
OE-style replacement. Application-specific CV axle shaft for driveline service.
Non-ABS design. Built without a tone ring for listed non-ABS applications.
Premium construction. Neoprene boots and a self-lock axle nut support service replacement.
Cross-references TrakMotive GM-86087 for the same application. See all 1.
Overview
TrakMotive GM-86087 is a premium CV axle shaft for a direct driveline replacement on the specified application. It is built for a 2023 GMC Acadia front left position and uses a non-ABS configuration unless otherwise noted.
The AAR CV Axle Shaft line focuses on application-specific driveline components with OE-style fitment details. For this GMC Acadia application, GM-86087 includes a self-lock axle nut and uses neoprene boots for the inboard and outboard joints.
Key Features
- Premium CV axle shaft for driveline service
- Non-ABS axle configuration with no tone ring included
- Inboard spline connection with 27 splines
- 33-spline outboard connection for the specified application
- Neoprene boot material at both joints
- Includes axle nut with self-lock design
Detailed Description
GM-86087 is a TrakMotive CV axle shaft engineered for the 2023 GMC Acadia front left application. It features a male inboard joint with spline connection, a conventional outboard joint, and compressed and extended lengths that match the listed fitment requirements. The axle nut uses an M27x2 thread, a 36 mm hex size, and a self-lock design for service replacement.
This part cross-references TrakMotive GM-86087 for the same application.
Common Uses
- Restoring driveline function after CV axle wear
- Addressing clicking or vibration from a worn axle assembly
- Replacing a damaged axle shaft or boot assembly
- Correcting fitment issues on the specified front left application
Installation Notes
Fits 2023 GMC Acadia, front left. Verify the vehicle is without option G99 before ordering. Confirm spline count, axle length, and axle nut specifications against the removed part before installation.
Quality Assurance
TrakMotive lists this CV axle shaft with a limited lifetime warranty. The company is ISO 9001:2008 and TS 16949:2009 certified, supporting controlled manufacturing and quality processes.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2023 | GMC | Acadia | 3.6L | V6 | Front Left | Without opt G99; AAR CV Axle Shaft |
