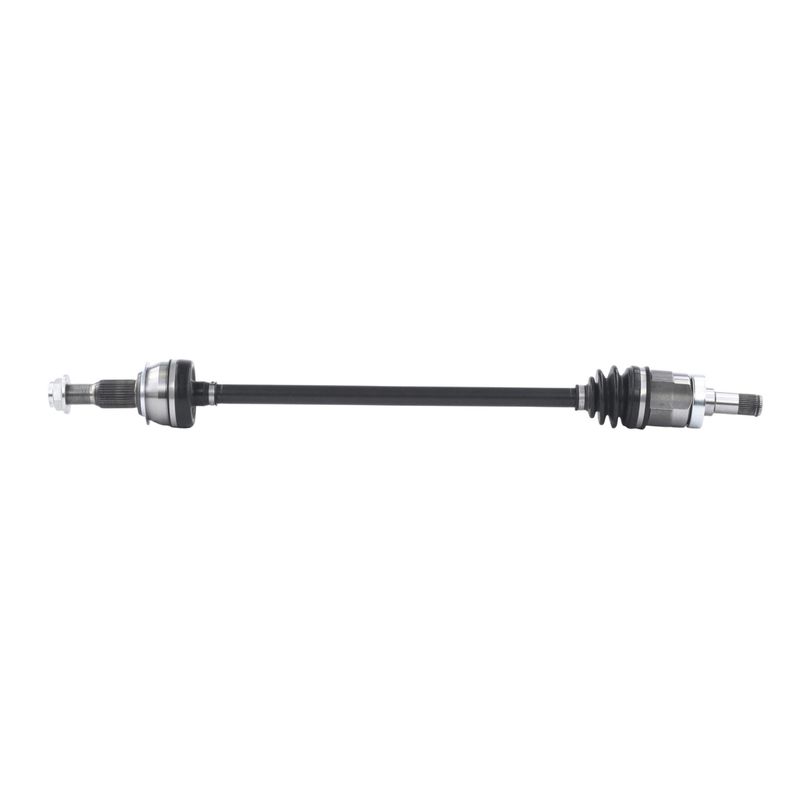

TrakMotive GM-86088 CV Axle Shaft - Rear Left
| Brand | TrakMotive GM-86088 |
|---|---|
| Position | Rear Left |
| ABS Tone Ring Included | No |
| ABS Tone Ring Tooth Quantity | 0 |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.88 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.38 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.63 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 41 |
| Axle Nut Thread Size | M27x2 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 33.5 |
| Overall Compressed Length (mm) | 852 |
| Overall Extended Length (in) | 35.19 |
| Overall Extended Length (mm) | 894 |
| Product line | CV Axle Shaft |
| Fits | GMC · 4 vehicles |
Premium grade. Built as a driveline replacement with application-specific shaft connections.
Neoprene boots. Inboard and outboard boot material helps protect the CV joints.
Included axle nut. Self-lock design with M27x2 thread size for service installation.
Cross-references TrakMotive GM-86088 for the same application. See all 1.
CV axle shaft for GMC Acadia
The TrakMotive GM-86088 CV axle shaft is built for rear left fitment on select GMC Acadia models. It is a premium driveline replacement with a self-lock axle nut, neoprene boots, and spline-based shaft connections for a precise service fit.
Fits 2020-2023 GMC Acadia, rear left, w/o Automatic Dual Clutch.
Key features
- Premium CV axle shaft for driveline service and replacement.
- Includes a self-lock axle nut with M27x2 thread size.
- Neoprene inboard and outboard boots help protect the joints.
- 34 inboard splines and 33 outboard splines for application-specific fitment.
- ABS tone ring is not included.
Detailed description
This TrakMotive CV axle shaft, part number GM-86088, is engineered for rear left applications on the GMC Acadia listed in the fitment data. The axle uses a male inboard joint with spline connection, a conventional outboard joint, and premium-grade construction to match the service requirements of the original driveline layout. The included axle nut features a hex head and self-lock design for secure fastening during installation. GM-86088 is also identified by the same part number in interchange listings.
TrakMotive CV axle shafts are supported by ISO 9001:2008 and TS 16949:2009 certified manufacturing processes. The brand notes a limited lifetime warranty and states that ABS axles fit non-ABS applications unless otherwise noted. GM-86088 is a direct replacement option for the specified GMC Acadia application.
What it is used for
- Replacing a worn or damaged CV axle shaft.
- Restoring driveline operation after joint wear or boot failure.
- Addressing vibration, clicking, or binding from axle wear.
- Correcting fitment issues on the specified rear left application.
Installation notes and tips
Verify the vehicle is a 2020-2023 GMC Acadia, rear left, w/o Automatic Dual Clutch before ordering. Confirm spline count, axle nut thread size, and overall length against the removed part. This application uses a supplied axle nut, and the axle is listed without an ABS tone ring.
Quality assurance
TrakMotive lists a limited lifetime warranty for this CV axle shaft. The product is backed by ISO 9001:2008 and TS 16949:2009 certified manufacturing standards.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | GMC | Acadia | Rear Left | w/o Automatic Dual Clutch; CV Axle Shaft |
| 2022 | GMC | Acadia | Rear Left | w/o Automatic Dual Clutch; CV Axle Shaft |
| 2021 | GMC | Acadia | Rear Left | w/o Automatic Dual Clutch; CV Axle Shaft |
| 2020 | GMC | Acadia | Rear Left | w/o Automatic Dual Clutch; CV Axle Shaft |
