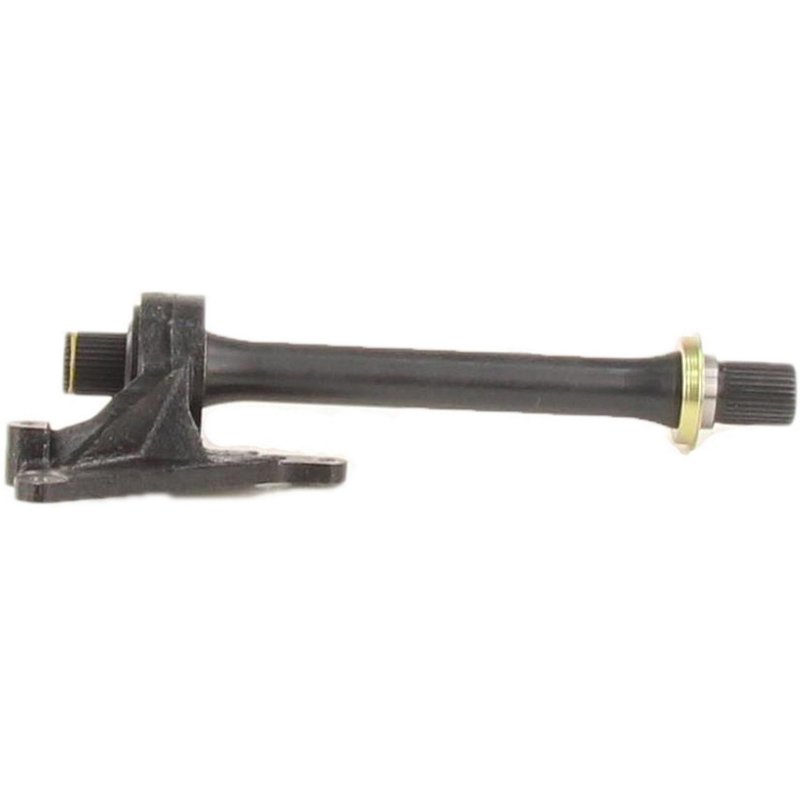

TrakMotive HO-3515 CV Intermediate Shaft - Front Right
| Brand | TrakMotive HO-3515 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Splines | 31 |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 13.84 |
| Overall Compressed Length (mm) | 351.5 |
| Product line | CV Intermediate Shaft |
| Fits | Acura and Honda · 33 vehicles |
New unit. Built as a fresh replacement, not remanufactured.
Neoprene boot. Flexible material helps protect the shaft connection.
Spline connections. 31-tooth ends provide a precise driveline interface.
Cross-references TrakMotive HO-3515 for the same application. See all 1.
Honda and Acura CV Intermediate Shaft
TrakMotive HO-3515 is a new CV intermediate shaft for the front right position on select Honda and Acura vehicles. It is built with a neoprene boot and spline-style inboard and outboard connections for a direct-fit driveline repair.
Key Features
- New CV intermediate shaft for front right applications
- Neoprene boot material for driveline protection
- 31 inboard splines and 31 outboard splines
- Spline connection style at both ends
- Overall compressed length: 13.84 in. (351.5 mm)
- No axle nut included
- No ABS tone ring included
Product Details
TrakMotive HO-3515 is part of the CV Intermediate Shaft line, built for driveline service on Honda Odyssey, Passport, Pilot, and Acura MDX, RLX, and TLX front right applications. This shaft is a new replacement component with matching 31-spline connections on both ends and a compressed length of 13.84 inches to support proper fitment in the listed vehicles. TrakMotive HO-3515 is manufactured by an ISO 9001:2008 and TS 16949:2009 certified company, reflecting controlled production standards for CV driveline components.
This part cross-references TrakMotive HO-3515 for the same application.
Common Repair Uses
- Restores a worn or damaged front right intermediate shaft
- Addresses driveline vibration from shaft wear or spline damage
- Helps correct clicking, binding, or noise related to CV driveline wear
- Replaces a shaft with deteriorated boot material or internal wear
- Supports repair after axle or intermediate shaft failure
Installation Notes
Verify front right fitment by year, make, and model before installation. Confirm spline count and compressed length against the original shaft, and transfer any vehicle-specific components only if required by the application. Because no axle nut is included, reuse or source the correct hardware separately as needed for the repair.
Quality Assurance
TrakMotive manufactures this CV intermediate shaft under ISO 9001:2008 and TS 16949:2009 certified quality systems. The part is backed by a limited lifetime warranty.
Fitment
- Fits 2018-2022 Honda Odyssey, front right.
- Fits 2019-2022 Honda Passport, front right.
- Fits 2019-2022 Honda Pilot, front right.
- Fits 2019-2020 Acura MDX, front right.
- Fits 2018-2020 Acura RLX, front right.
- Fits 2018-2020 Acura TLX, front right.
- Fits 2016-2018 Acura MDX, front right.
- Fits 2016-2018 Honda Pilot, front right, inner.
- Fits 2015-2017 Acura TLX, front right.
| Year | Make | Model | Submodel | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2022 | Honda | Odyssey | — | — | — | — | — | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2022 | Honda | Passport | — | — | — | — | — | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2022 | Honda | Pilot | — | — | Automatic | — | — | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2021 | Honda | Odyssey | — | — | — | — | — | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2021 | Honda | Passport | — | — | — | — | — | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2021 | Honda | Pilot | — | — | Automatic | — | — | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2020 | Acura | MDX | — | — | — | 3.5L | V6 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2020 | Acura | RLX | — | FWD | — | — | — | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2020 | Acura | TLX | — | — | — | 3.5L | V6 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2020 | Honda | Odyssey | — | — | — | — | — | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2020 | Honda | Passport | — | — | — | — | — | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2020 | Honda | Pilot | — | — | Automatic | — | — | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2019 | Acura | MDX | — | — | — | 3.5L | V6 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2019 | Acura | RLX | — | FWD | — | — | — | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2019 | Acura | TLX | — | — | — | 3.5L | V6 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2019 | Honda | Odyssey | — | — | — | — | — | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2019 | Honda | Passport | — | — | — | — | — | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2019 | Honda | Pilot | — | — | Automatic | — | — | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2018 | Acura | MDX | — | — | — | 3.5L | V6 | Front Right | CV Intermediate Shaft |
| 2018 | Acura | RLX | — | FWD | — | — | — | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2018 | Acura | TLX | — | — | — | 3.5L | V6 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2018 | Honda | Odyssey | — | — | — | — | — | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2018 | Honda | Pilot | Touring | — | — | — | — | Front Right | Inner; CV Intermediate Shaft |
| 2018 | Honda | Pilot | Elite | — | — | — | — | Front Right | Inner; CV Intermediate Shaft |
| 2017 | Acura | MDX | — | — | — | 3.5L | V6 | Front Right | CV Intermediate Shaft |
| 2017 | Acura | TLX | — | — | — | 3.5L | V6 | Front Right | CV Intermediate Shaft |
| 2017 | Honda | Pilot | Touring | — | — | — | — | Front Right | Inner; CV Intermediate Shaft |
| 2017 | Honda | Pilot | Elite | — | — | — | — | Front Right | Inner; CV Intermediate Shaft |
| 2016 | Acura | MDX | — | — | — | — | — | Front Right | CV Intermediate Shaft |
| 2016 | Acura | TLX | — | — | — | 3.5L | V6 | Front Right | CV Intermediate Shaft |
| 2016 | Honda | Pilot | Touring | — | — | — | — | Front Right | Inner; CV Intermediate Shaft |
| 2016 | Honda | Pilot | Elite | — | — | — | — | Front Right | Inner; CV Intermediate Shaft |
| 2015 | Acura | TLX | — | — | — | 3.5L | V6 | Front Right | CV Intermediate Shaft |
