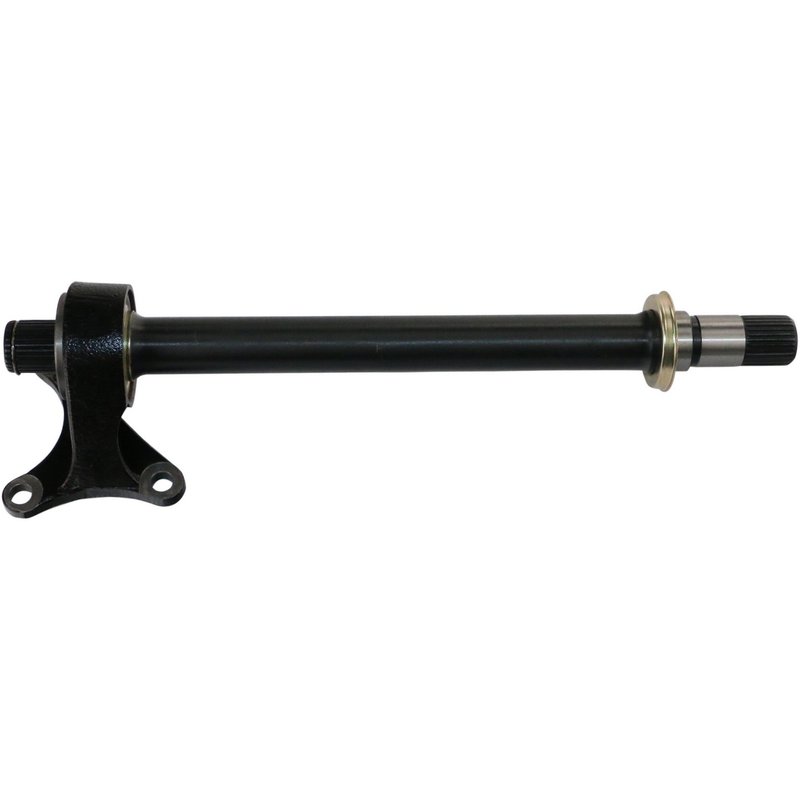

TrakMotive HO-3517 CV Intermediate Shaft - Front Right

CV Intermediate Shaft for Acura Front Right Applications

TrakMotive HO-3517 is a new CV intermediate shaft for front right driveline service on select Acura ILX and TLX models. It is built with spline-style inboard and outboard connections and a neoprene boot for dependable fitment in standard-duty replacement applications.

Key Features

• New CV intermediate shaft for front right installation
• Inboard and outboard shaft connection style: spline
• 29 inboard splines and 29 outboard splines
• Overall compressed length: 17.44 in. (443 mm)
• Neoprene boot material
• No axle nut included
• No ABS tone ring included

Fitment Details

• Fits 2019-2022 Acura ILX, front right, standard duty replacement; CV intermediate shaft
• Fits 2015-2020 Acura TLX, front right, standard duty replacement; CV intermediate shaft
• Fits 2016-2018 Acura ILX, front right, jackshaft; CV intermediate shaft

This TrakMotive CV intermediate shaft, part number HO-3517, is built for Acura driveline service where the intermediate shaft transfers power between the transaxle and the front right axle assembly. The spline-to-spline design and specified compressed length help support correct alignment and engagement on the listed Acura ILX and TLX applications. This part cross-references TrakMotive HO-3517 for the same application.

Common Problems This Part Can Address

• Worn or damaged intermediate shaft splines
• Vibration or driveline noise from shaft wear
• Improper axle engagement at the transaxle side
• Boot deterioration on the intermediate shaft assembly
• Front right driveline service on Acura ILX or TLX models

Installation Notes

Verify spline count, compressed length, and front right fitment before installation. Confirm that the vehicle uses the listed standard-duty replacement or jackshaft application, and inspect mating components for wear before assembly. Because no axle nut is included, reuse or source the correct hardware as required by the vehicle service procedure.

Quality Assurance

TrakMotive identifies this part as a new replacement component backed by a limited lifetime warranty. The manufacturer also states that its operations are certified to ISO 9001:2008 and TS 16949:2009 quality standards.
