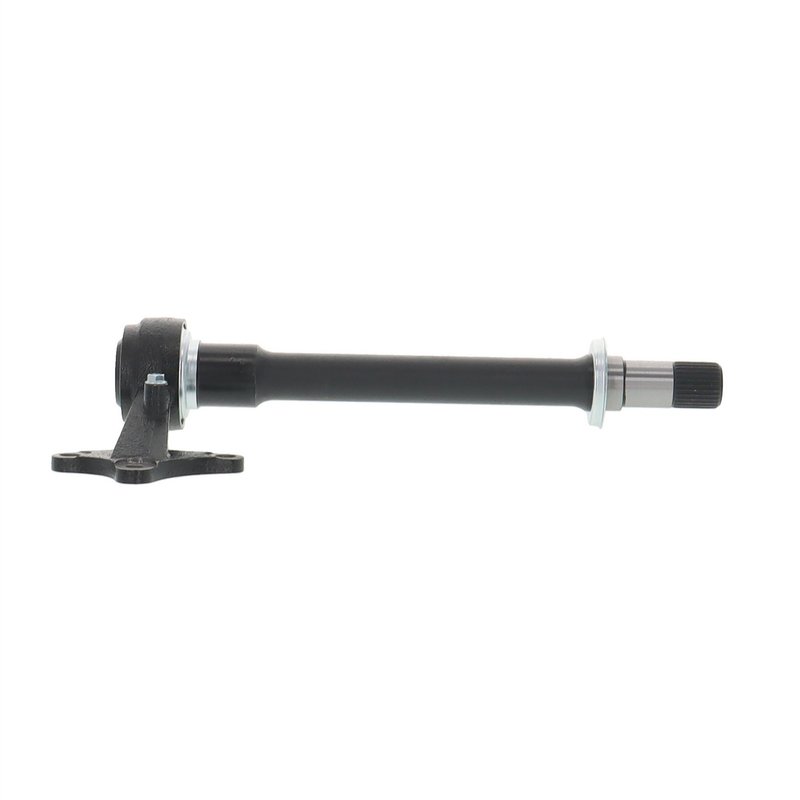

TrakMotive HO-3553 CV Intermediate Shaft - Front
| Brand | TrakMotive HO-3553 |
|---|---|
| Position | Front |
| ABS Tone Ring Included | No |
| Axle Nut Included | No |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 27 |
| Overall Compressed Length (in) | 14.25 |
| Overall Compressed Length (mm) | 362 |
| Product line | CV Intermediate Shaft |
| Fits | Acura and Honda · 15 vehicles |
CV intermediate shaft. Direct replacement for driveline service and repair.
Spline-matched fit. 29 inboard and 27 outboard splines for precise engagement.
ISO 9001:2008 and TS 16949:2009 certified manufacturing.
Cross-references TrakMotive HO-3553 for the same application. See all 1.
CV Intermediate Shaft for Honda and Acura
TrakMotive HO-3553 is a front CV intermediate shaft for select Honda Accord and Acura CL and TL applications. It is built as a standard duty replacement and matches the spline and length specifications needed for proper driveline alignment.
Key Features
- Front CV intermediate shaft for driveline and axle service
- 29 inboard splines and 27 outboard splines
- Overall compressed length: 14.25 in. (362 mm)
- No ABS tone ring included
- No axle nut included
- TrakMotive HO-3553 replacement part number
Product Details
TrakMotive HO-3553 is part of the CV Intermediate Shaft line, a driveline component focused on direct-fit replacement for vehicles that use an intermediate shaft between the transaxle and axle assembly. For 1998-2002 Honda Accord, front; 1998-1999 Acura CL, front; 2001-2003 Acura CL, front; and 1999-2003 Acura TL, front, this shaft provides the specified spline count and compressed length needed for correct fitment and driveline geometry. The HO-3553 part number is the reference to verify when ordering a replacement for these Honda Accord and Acura applications.
TrakMotive manufactures this component under ISO 9001:2008 and TS 16949:2009 certified quality systems, supporting consistent production control for driveline replacement parts. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Worn or noisy intermediate shaft bearings
- Excessive driveline vibration from a damaged shaft
- Improper axle alignment caused by shaft wear
- Clicking or binding related to a failing CV intermediate shaft
- Replacement needs after corrosion, impact, or seal-related wear
Installation Notes and Tips
- Confirm front position and verify year, make, and model before installation.
- Match the 29 inboard spline and 27 outboard spline counts to the original part.
- Check overall compressed length against the removed shaft to confirm fitment.
- Inspect related seals, bearings, and axle components during service.
- Axle nut is not included, so reuse or replace it as required by the vehicle service procedure.
Quality Assurance
TrakMotive HO-3553 is backed by a limited lifetime warranty and produced by an ISO 9001:2008 and TS 16949:2009 certified company. It is a standard duty replacement CV intermediate shaft for Honda Accord and Acura CL and TL front applications.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2003 | Acura | CL | — | — | — | Front | Standard Duty Replacement; CV Intermediate Shaft |
| 2003 | Acura | TL | — | — | — | Front | Standard Duty Replacement; CV Intermediate Shaft |
| 2002 | Acura | CL | — | — | — | Front | Standard Duty Replacement; CV Intermediate Shaft |
| 2002 | Acura | TL | — | — | — | Front | Standard Duty Replacement; CV Intermediate Shaft |
| 2002 | Honda | Accord | Automatic | 3.0L | V6 | Front | Standard Duty Replacement; CV Intermediate Shaft |
| 2001 | Acura | CL | — | — | — | Front | Standard Duty Replacement; CV Intermediate Shaft |
| 2001 | Acura | TL | — | — | — | Front | Standard Duty Replacement; CV Intermediate Shaft |
| 2001 | Honda | Accord | Automatic | 3.0L | V6 | Front | Standard Duty Replacement; CV Intermediate Shaft |
| 2000 | Acura | TL | — | — | — | Front | Standard Duty Replacement; CV Intermediate Shaft |
| 2000 | Honda | Accord | Automatic | 3.0L | V6 | Front | Standard Duty Replacement; CV Intermediate Shaft |
| 1999 | Acura | CL | Automatic | 3.0L | V6 | Front | Standard Duty Replacement; CV Intermediate Shaft |
| 1999 | Acura | TL | — | — | — | Front | Standard Duty Replacement; CV Intermediate Shaft |
| 1999 | Honda | Accord | Automatic | 3.0L | V6 | Front | Standard Duty Replacement; CV Intermediate Shaft |
| 1998 | Acura | CL | Automatic | 3.0L | V6 | Front | Standard Duty Replacement; CV Intermediate Shaft |
| 1998 | Honda | Accord | Automatic | 3.0L | V6 | Front | Standard Duty Replacement; CV Intermediate Shaft |
