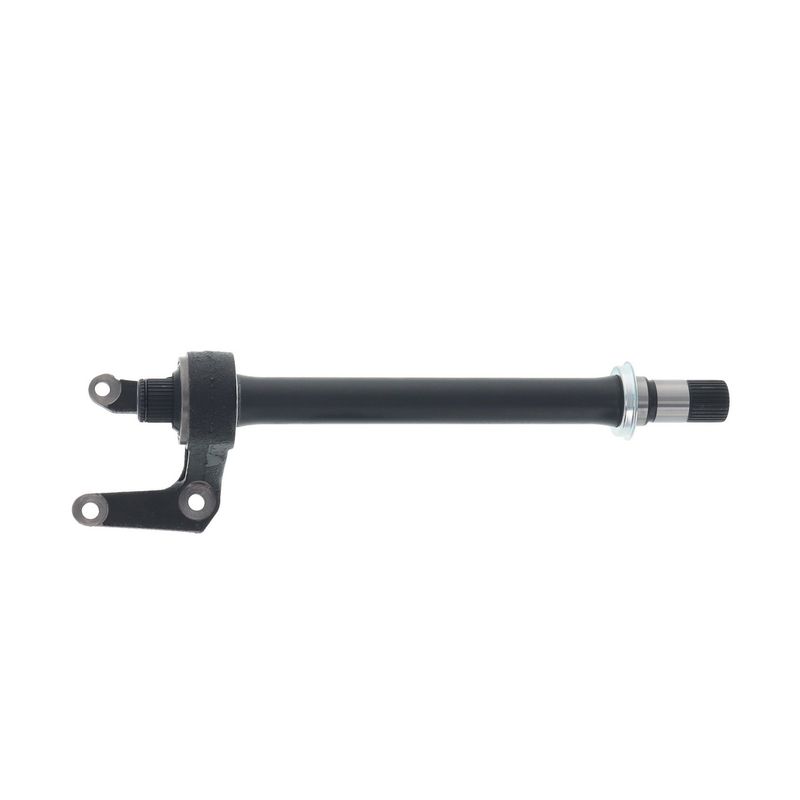

TrakMotive HO-3578 CV Intermediate Shaft - Front Right
| Brand | TrakMotive HO-3578 |
|---|---|
| Position | Front Right |
| ABS Tone Ring Included | No |
| Axle Nut Included | No |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 31 |
| Overall Compressed Length (in) | 16.875 |
| Overall Compressed Length (mm) | 429 |
| Product line | CV Intermediate Shaft |
| Fits | Acura and Honda · 3 vehicles |
Direct replacement. CV intermediate shaft built for the listed driveline application.
Matched spline design. 31 inboard and 31 outboard splines for proper engagement.
Quality certified. ISO 9001:2008 and TS 16949:2009 certified manufacturing.
Cross-references TrakMotive HO-3578 for the same application. See all 1.
Overview
TrakMotive HO-3578 is a CV intermediate shaft for select front right applications. It is built for direct replacement use and matches the listed spline count and compressed length for the specified driveline setup.
Key Features
- CV intermediate shaft for driveline service
- 31 inboard splines and 31 outboard splines
- 16.875 in. overall compressed length
- No ABS tone ring included
- No axle nut included
Detailed Description
TrakMotive HO-3578 is a CV intermediate shaft engineered for standard duty replacement applications. The shaft uses 31 splines on both the inboard and outboard ends and measures 16.875 inches compressed, helping maintain the correct driveline geometry for the listed fitments. This part number, HO-3578, is listed for the front right side on the 2024 Acura Integra and 2023-2024 Honda Civic.
TrakMotive positions the CV Intermediate Shaft line as a focused driveline replacement range, and HO-3578 follows that approach with application-specific dimensions and spline configuration. This part cross-references TrakMotive HO-3578 for the same application.
Common Uses
- Replacing a worn or damaged intermediate shaft
- Addressing vibration or driveline noise from shaft wear
- Restoring proper spline engagement in the driveline
- Correcting fitment issues caused by incorrect shaft length
Installation Notes
Verify spline count, compressed length, and front right fitment before installation. Confirm that the vehicle uses the listed standard duty replacement configuration for the 2024 Acura Integra or 2023-2024 Honda Civic. Part number HO-3578 should be matched to the application before assembly.
Quality Assurance
TrakMotive lists a limited lifetime warranty for HO-3578. The company is ISO 9001:2008 and TS 16949:2009 certified, reflecting controlled manufacturing and quality management practices.
| Year | Make | Model | Submodel | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2024 | Acura | Integra | Type S | Manual | 2.0L | L4 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2024 | Honda | Civic | Type R | — | — | — | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2023 | Honda | Civic | Type R | — | — | — | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
