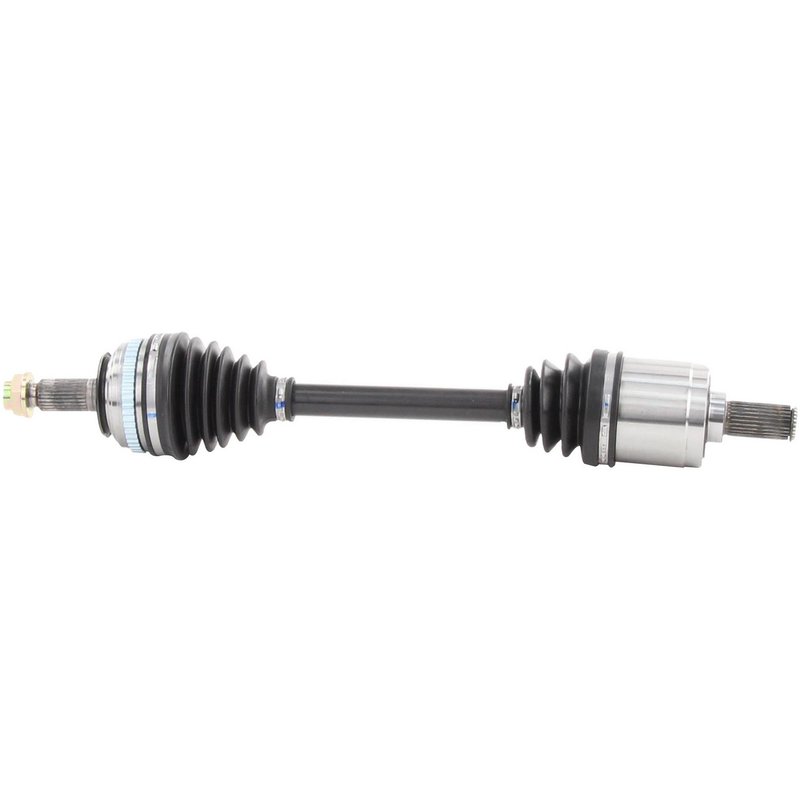

TrakMotive HO-8003 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HO-8003 for Acura Integra

The TrakMotive CV Axle Shaft HO-8003 is engineered specifically for Acura Integra models, providing reliable driveline performance. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's CV components.

• Compatible with Acura Integra
• Part Number: HO-8003
• Includes ABS tone ring with 50 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut included with stake locking type
• Overall compressed length of 23.5 inches (597 mm)
• Inboard joint type: Male with 27 splines
• Outboard joint type: Conventional with 26 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that meet OEM specifications. This CV axle shaft is part of that line, designed to maintain proper axle alignment and smooth power transfer in Acura Integra vehicles. The inclusion of a toothed ABS ring and neoprene boot material reflects the line's emphasis on durability and compatibility with factory ABS systems.

Technical Specifications and Features

This CV axle shaft features a 50-tooth ABS ring type that is toothed and includes the ABS tone ring, ensuring accurate wheel speed sensor readings. The axle nut is a hex head type measuring 1 1/4 inches (31.8 mm) across flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inches (34.4 mm). It uses an M22x1.5 thread size and a stake locking mechanism for secure installation. The neoprene boot material offers resistance to wear and environmental factors, protecting the CV joints. The inboard joint is male type with 27 splines, while the outboard joint is conventional with 26 splines, providing a secure connection to the drivetrain.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Acura Integra
• Restores proper ABS sensor function with included toothed ABS ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boots
• Ensures secure axle nut fitment with included hex nut and locking type

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HO-8003, verify compatibility with your Acura Integra model year. Use the included hex axle nut with the specified M22x1.5 thread size and stake locking method to secure the axle properly. Inspect the ABS tone ring alignment to ensure accurate sensor readings. Lubricate the CV joints as recommended and avoid damaging the neoprene boots during installation.

Quality Assurance and Warranty

This CV axle shaft is a new, remanufactured-free component designed to meet or exceed OEM standards. The inclusion of the ABS tone ring and durable neoprene boots supports long-term reliability. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure consistent performance in Acura Integra driveline applications.
