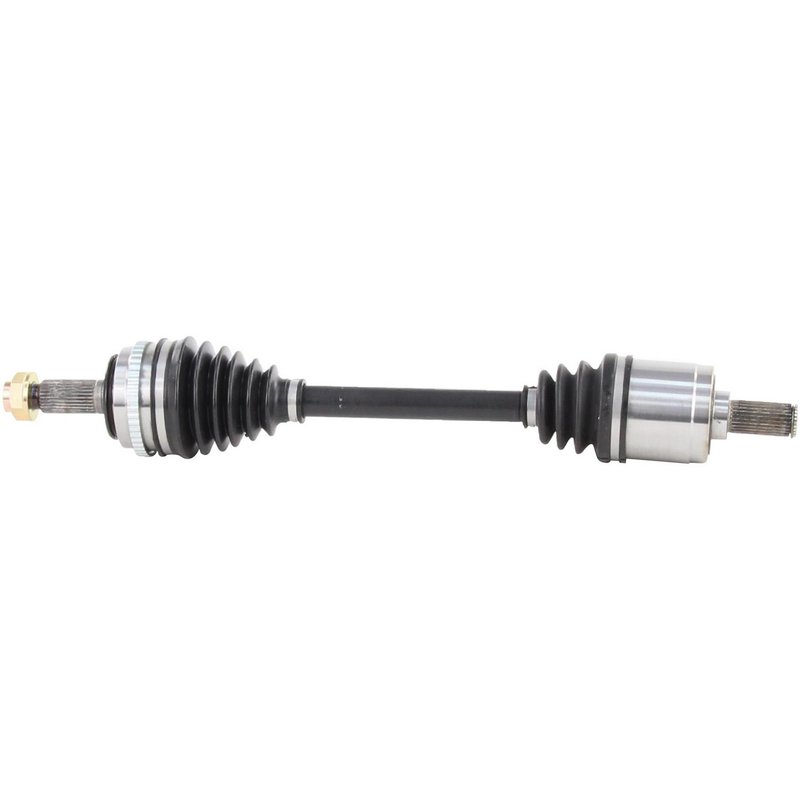

TrakMotive HO-8018 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HO-8018 for Honda Prelude

The TrakMotive CV Axle Shaft HO-8018 is engineered specifically for Honda Prelude models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Honda Prelude
• Part Number: HO-8018
• Includes ABS tone ring with 50 toothed ring teeth
• Neoprene boot material for durability
• Stake locking axle nut included (M24*1.5 thread size)
• Overall compressed length: 24.51 inches (622.5 mm)
• Inboard joint type: Male with 27 splines
• Outboard joint type: Conventional with 28 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that maintain vehicle stability and power transfer. This CV axle shaft model HO-8018 is part of that line, designed to provide consistent rotational force transfer while accommodating the suspension and steering movements of the Honda Prelude.

Technical Specifications and Features

This CV axle shaft features a neoprene boot that resists wear and environmental damage, extending the life of the joint. The included ABS tone ring with 50 teeth and a toothed ring type supports accurate wheel speed sensor readings for ABS systems. The axle nut is a hex head type, measuring 1 2/5 inches (35.6 mm) across flats, with a height of 1 inch (23 mm) and a length of 1 1/2 inches (37.53 mm). It uses a stake locking mechanism to ensure secure fastening. The inboard joint is male type with 27 splines, while the outboard joint is conventional with 28 splines, matching the factory specifications for the Honda Prelude.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Honda Prelude
• Resolves issues with clicking or popping noises during turns
• Fixes vibrations or shuddering under acceleration
• Addresses torn or leaking CV boots causing grease loss
• Restores proper ABS sensor function with included tone ring

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Remove the old axle shaft carefully to avoid damage to surrounding components. Use the included stake locking axle nut and torque to manufacturer specifications. Verify the ABS tone ring is properly seated to maintain sensor accuracy. It is recommended to inspect related suspension and drivetrain components during installation.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HO-8018 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes a neoprene boot for enhanced durability and a stake locking axle nut for secure installation. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance.
