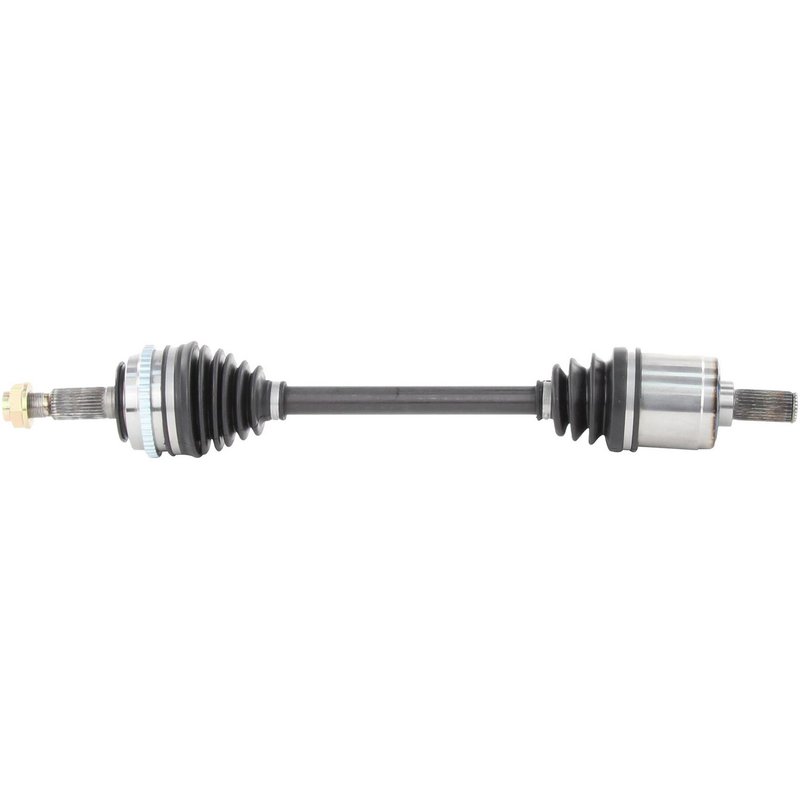

TrakMotive HO-8027 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-8027 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 50 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.53 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.69 |
| Overall Compressed Length (mm) | 652.5 |
| Product line | CV Axle Shaft |
| Fits | Honda · 5 vehicles |
New CV axle shaft. Direct replacement for a straightforward driveline repair.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ABS tone ring included. Built with a toothed ring and matching axle nut.
Cross-references Cardone New 66-4155, Cardone Reman 60-4154 and NGK 8077 for the same application. See all 41.
Honda Accord Front Left CV Axle Shaft
Restore driveline performance on your 1998-2002 Honda Accord with this TrakMotive CV axle shaft, part number HO-8027. It is built as a new replacement axle for the front left position and includes the ABS tone ring for applications that require it.
Key Features
- TrakMotive CV Axle Shaft, part number HO-8027
- Fits 1998-2002 Honda Accord, front left
- New axle shaft with 25.69 in. overall compressed length
- 27 inboard splines and 28 outboard splines
- Neoprene boot material for the CV joint assembly
- ABS tone ring included with 50-tooth toothed ring design
- Axle nut included with M24 x 1.5 thread size, hex head, stake lock type
- Inboard joint type: male; outboard joint type: conventional
Detailed Description
TrakMotive HO-8027 is a front left CV axle shaft for the Honda Accord, engineered as a new driveline replacement for 1998-2002 models. The axle uses a male inboard shaft connection and a conventional outboard shaft connection, with a compressed length of 25.69 inches to match the specified application. The included ABS tone ring and 50-tooth toothed ring support vehicles equipped for ABS-related wheel speed sensing, while the neoprene boot helps protect the joint assembly from road contamination.
This part cross-references Cardone New 66-4155 and Cardone Reman 60-4154 for the same application. HO-8027 is also referenced in interchange listings for related Honda Accord front axle applications.
What This Part Helps Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration
- Grease leakage from a damaged axle boot
- Wheel speed signal issues on ABS-equipped applications with a damaged tone ring
- Driveline looseness caused by spline or joint wear
Installation Notes and Tips
Verify front left fitment before installation and confirm spline count, axle nut thread size, and ABS tone ring requirements against the original axle. Use the included axle nut only if it matches the vehicle specification, and follow proper torque and staking procedures during installation. Inspect the hub, seals, and surrounding suspension components before completing the repair.
Quality Assurance
TrakMotive lists this CV axle shaft as a new part from an ISO 9001:1007 and TS 16949:2009 certified company. The HO-8027 also carries a limited lifetime warranty.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2002 | Honda | Accord | Manual | 2.3L | L4 | Front Left | CV Axle Shaft |
| 2001 | Honda | Accord | Manual | 2.3L | L4 | Front Left | CV Axle Shaft |
| 2000 | Honda | Accord | Manual | 2.3L | L4 | Front Left | CV Axle Shaft |
| 1999 | Honda | Accord | Manual | 2.3L | L4 | Front Left | CV Axle Shaft |
| 1998 | Honda | Accord | Manual | 2.3L | L4 | Front Left | CV Axle Shaft |
