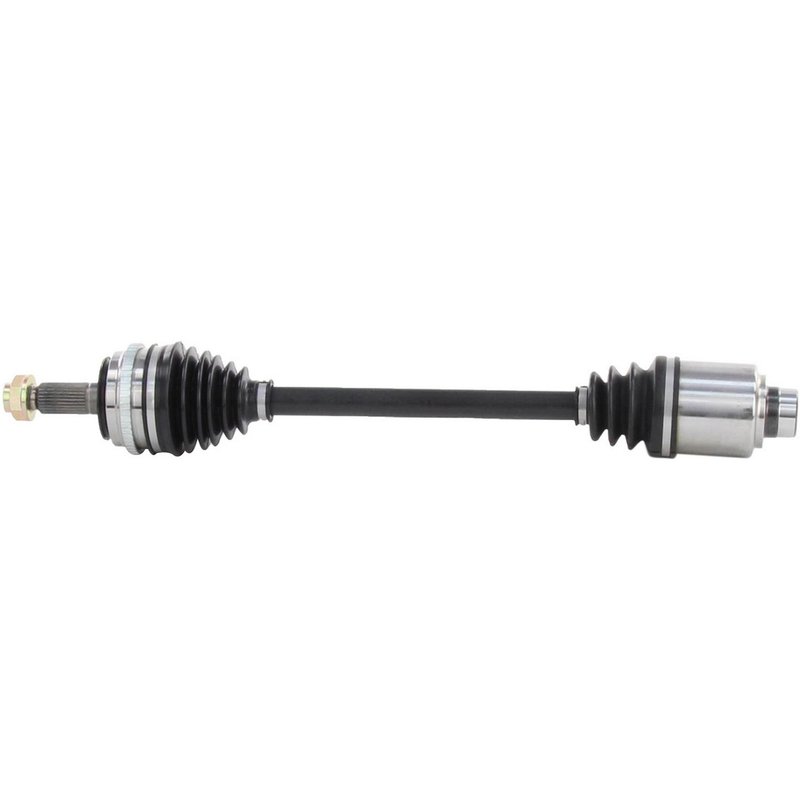

TrakMotive HO-8036 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-8036 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 50 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.53 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31-2T |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 26.42 |
| Overall Compressed Length (mm) | 671 |
| Product line | CV Axle Shaft |
| Fits | Acura · 12 vehicles |
New CV axle shaft. Direct replacement for a worn driveline component.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ABS tone ring included. Supports ABS-equipped applications when specified.
Cross-references AP Exhaust 8049, Cardone New 66-4148 and Cardone Reman 60-4148 for the same application. See all 22.
TrakMotive HO-8036 CV Axle Shaft
TrakMotive HO-8036 is a new CV axle shaft for front left applications on select Acura RL and Acura TL models. It is built for direct driveline replacement service and includes the axle nut and ABS tone ring details needed for the listed applications.
Key Features
- New CV axle shaft for front left driveline service
- Fits 1996-2004 Acura RL, front left
- Fits 1996-1998 Acura TL, front left
- ABS tone ring included with 50-tooth toothed ring design
- Neoprene boot material for CV joint protection
- Female inboard shaft connection with conventional outboard shaft connection
- Overall compressed length: 26.42 in. (671 mm)
- Includes axle nut with M24 x 1.5 thread, 35.6 mm hex size, and stake locking type
Product Details
This TrakMotive CV axle shaft is part of the CV Axle Shaft product line and is engineered for front left replacement on Acura RL and Acura TL driveline applications. The HO-8036 uses a female inboard joint, a conventional outboard joint, and a neoprene boot to support consistent CV joint operation. It also includes an ABS tone ring, making it appropriate for listed ABS-equipped applications while remaining usable in non-ABS applications unless otherwise noted by the vehicle fitment.
For buyers searching for a front left Acura RL CV axle shaft or a front left Acura TL axle replacement, HO-8036 provides the specified spline counts, compressed length, and axle nut configuration needed for the listed vehicles. This part cross-references Cardone New 66-4148 and Cardone Reman 60-4148 for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a torn or deteriorated CV boot
- Excessive play in the front left driveline assembly
- ABS-related concerns when the tone ring or axle sensor interface is worn
Installation Notes
Verify front left fitment before installation on 1996-2004 Acura RL and 1996-1998 Acura TL models. Confirm spline counts, axle nut thread size, and overall compressed length against the original part before assembly. Use the included axle nut and follow the vehicle service procedure for staking and torque specifications. Inspect the hub, seals, and surrounding suspension components during replacement to help prevent repeat driveline noise or leakage.
Quality Assurance
TrakMotive states that this axle shaft is backed by a limited lifetime warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company. HO-8036 is a new replacement part built for the listed Acura RL and Acura TL front left applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2004 | Acura | RL | — | — | Front Left | CV Axle Shaft |
| 2003 | Acura | RL | — | — | Front Left | CV Axle Shaft |
| 2002 | Acura | RL | — | — | Front Left | CV Axle Shaft |
| 2001 | Acura | RL | — | — | Front Left | CV Axle Shaft |
| 2000 | Acura | RL | — | — | Front Left | CV Axle Shaft |
| 1999 | Acura | RL | — | — | Front Left | CV Axle Shaft |
| 1998 | Acura | RL | — | — | Front Left | CV Axle Shaft |
| 1998 | Acura | TL | 3.2L | V6 | Front Left | CV Axle Shaft |
| 1997 | Acura | RL | — | — | Front Left | CV Axle Shaft |
| 1997 | Acura | TL | 3.2L | V6 | Front Left | CV Axle Shaft |
| 1996 | Acura | RL | — | — | Front Left | CV Axle Shaft |
| 1996 | Acura | TL | 3.2L | V6 | Front Left | CV Axle Shaft |
