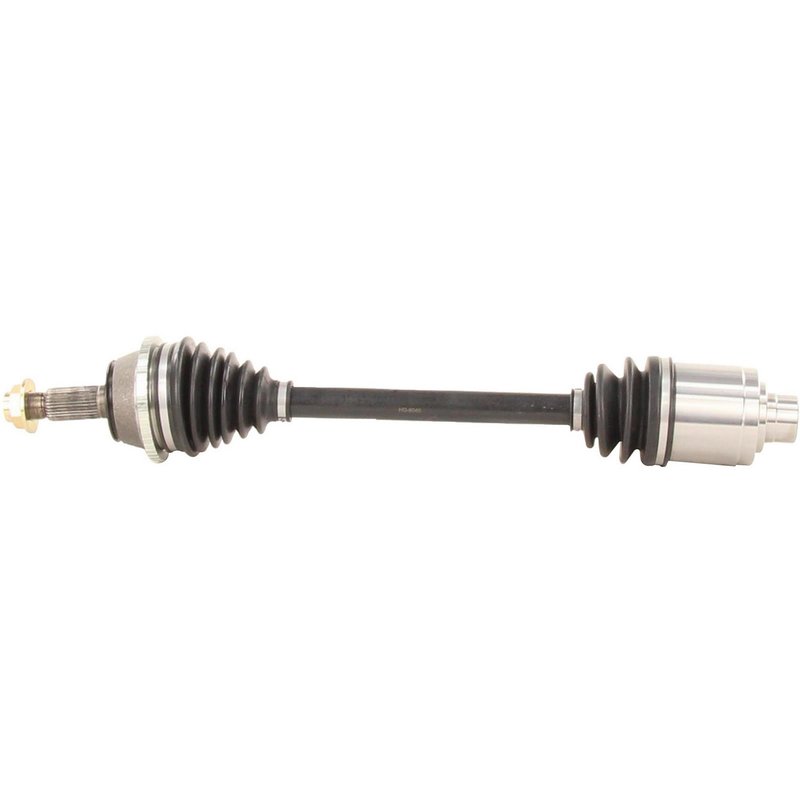

TrakMotive HO-8040 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-8040 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 50 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 1/3 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 26.61 |
| Overall Compressed Length (mm) | 676 |
| Product line | CV Axle Shaft |
| Fits | Acura · 5 vehicles |
New replacement shaft. Built as a fresh CV axle shaft for dependable driveline service.
Neoprene boot. Helps protect the joint from dirt and moisture.
ABS tone ring included. Comes with a toothed ring for ABS-equipped applications.
Cross-references Cardone New 66-4015, Cardone Reman 60-4015 and Timken 1625 for the same application. See all 24.
CV Axle Shaft for Acura Legend
TrakMotive HO-8040 is a new CV axle shaft for the front left position on 1991-1995 Acura Legend models. It is built for direct replacement service with the correct spline counts, ABS tone ring, and axle nut specifications needed for this application.
Key Features
- Fits 1991-1995 Acura Legend, front left
- TrakMotive CV Axle Shaft, part number HO-8040
- New construction with a neoprene boot
- Inboard female joint and conventional outboard joint design
- 31 inboard splines and 30 outboard splines
- ABS tone ring included with 50-tooth toothed ring
- Axle nut included with M26 x 1.5 thread size and stake locking type
- Overall compressed length: 26.61 in. (676 mm)
Detailed Description
TrakMotive HO-8040 is a front left CV axle shaft engineered for 1991-1995 Acura Legend vehicles. This axle uses a female inboard connection, a conventional outboard joint, and a neoprene boot for the specified driveline layout. The included ABS tone ring and 50-tooth toothed ring support applications that require wheel speed signal compatibility, while the axle nut specifications match the listed fitment details. TrakMotive HO-8040 is also referenced under cross numbers such as Cardone New 66-4015 and Timken 1625 for the same application.
What This Part Helps Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration from axle wear
- Grease leakage caused by a damaged axle boot
- ABS warning concerns related to a missing or incorrect tone ring
- Driveline looseness from spline or joint wear
Installation Notes and Tips
Verify front left placement, spline count, axle nut thread size, and overall compressed length before installation. Confirm ABS-equipped and non-ABS application details against the vehicle configuration, since ABS axles can fit non-ABS applications unless otherwise noted by the manufacturer. Inspect related hub, seal, and suspension components during replacement to help ensure proper operation.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a new replacement part and states ISO 9001:1007 and TS 16949:2009 certification. The part is backed by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1995 | Acura | Legend | Front Left | CV Axle Shaft |
| 1994 | Acura | Legend | Front Left | CV Axle Shaft |
| 1993 | Acura | Legend | Front Left | CV Axle Shaft |
| 1992 | Acura | Legend | Front Left | CV Axle Shaft |
| 1991 | Acura | Legend | Front Left | CV Axle Shaft |
| No rows match your filter. | ||||
