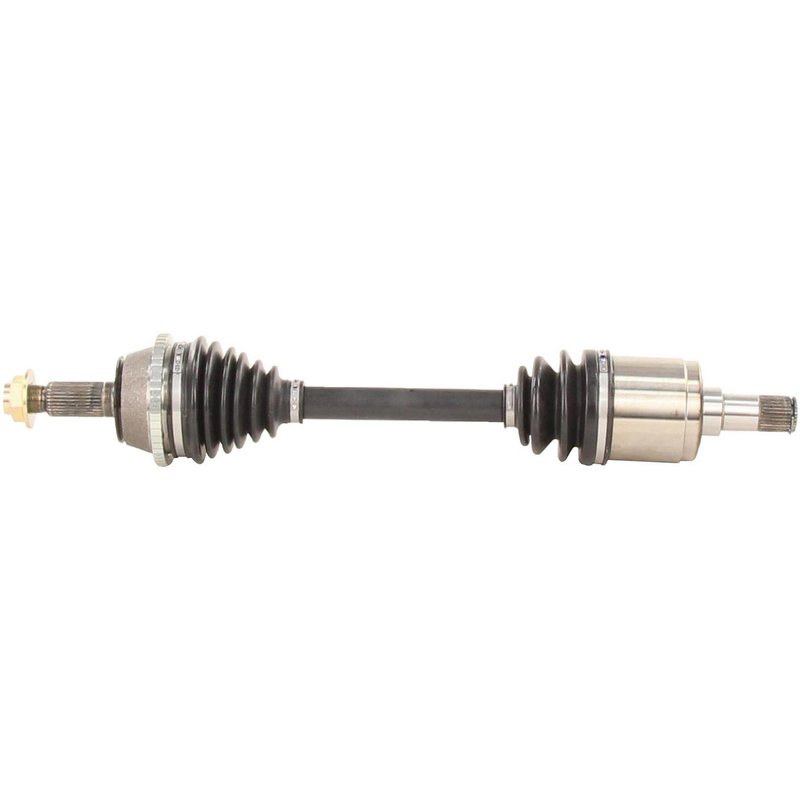

TrakMotive HO-8041 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8041 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 50 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 1/3 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.12 |
| Overall Compressed Length (mm) | 638 |
| Product line | CV Axle Shaft |
| Fits | Acura · 5 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for dependable sealing.
ABS tone ring included. Toothed ring is built in for applications that use ABS.
Axle nut included. Comes with a stake-lock nut for easier installation.
Cross-references Anchor 8024, Cardone New 66-4072 and Cardone Reman 60-4072 for the same application. See all 23.
CV Axle Shaft for Acura Legend Front Right
TrakMotive HO-8041 is a new CV axle shaft built for the front right position on 1991-1995 Acura Legend models. It is engineered with the specified spline counts, ABS tone ring, and axle nut details needed for a direct-fit driveline repair on the listed application.
Key Features
- Fits 1991-1995 Acura Legend, front right
- TrakMotive CV Axle Shaft, part number HO-8041
- New axle assembly for driveline and axle service
- 31 inboard splines and 30 outboard splines
- ABS tone ring included with 50-tooth toothed ring
- Neoprene boot material for axle joint protection
- Includes axle nut with M26 x 1.5 thread size and stake locking type
- Overall compressed length: 25.12 in. (638 mm)
Product Details
This TrakMotive CV axle shaft is part of the brand’s CV Axle Shaft line and is built for the front right side of the Acura Legend. HO-8041 uses a male inboard shaft connection, a conventional outboard joint type, and the listed spline and axle nut specifications to match the vehicle application. ABS axles fit non-ABS applications unless otherwise noted, and this unit includes the ABS tone ring specified in the product data. This part cross-references Cardone New 66-4072 and Cardone Reman 60-4072 for the same application.
Common Repair Uses
- Restores drivetrain transfer when a worn axle causes clicking or vibration
- Addresses torn boot conditions that can lead to grease loss and joint wear
- Replaces a damaged front right CV axle on Acura Legend models
- Helps correct noise during turning or acceleration from a failing CV joint
- Supports repair of ABS-related axle service when the tone ring is required
Installation Notes
Verify the vehicle’s front right application, spline count, axle nut thread size, and ABS requirements before installation. Confirm compressed length and connection style against the removed axle to ensure proper fitment on the 1991-1995 Acura Legend. Follow factory service procedures for axle removal, torque, and staking of the axle nut.
Quality Assurance
TrakMotive states that this axle is backed by a limited lifetime warranty and that the company is ISO 9001:1007 and TS 16949:2009 certified. HO-8041 is supplied as a new CV axle shaft for the specified Acura Legend application.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1995 | Acura | Legend | Front Right | CV Axle Shaft |
| 1994 | Acura | Legend | Front Right | CV Axle Shaft |
| 1993 | Acura | Legend | Front Right | CV Axle Shaft |
| 1992 | Acura | Legend | Front Right | CV Axle Shaft |
| 1991 | Acura | Legend | Front Right | CV Axle Shaft |
| No rows match your filter. | ||||
