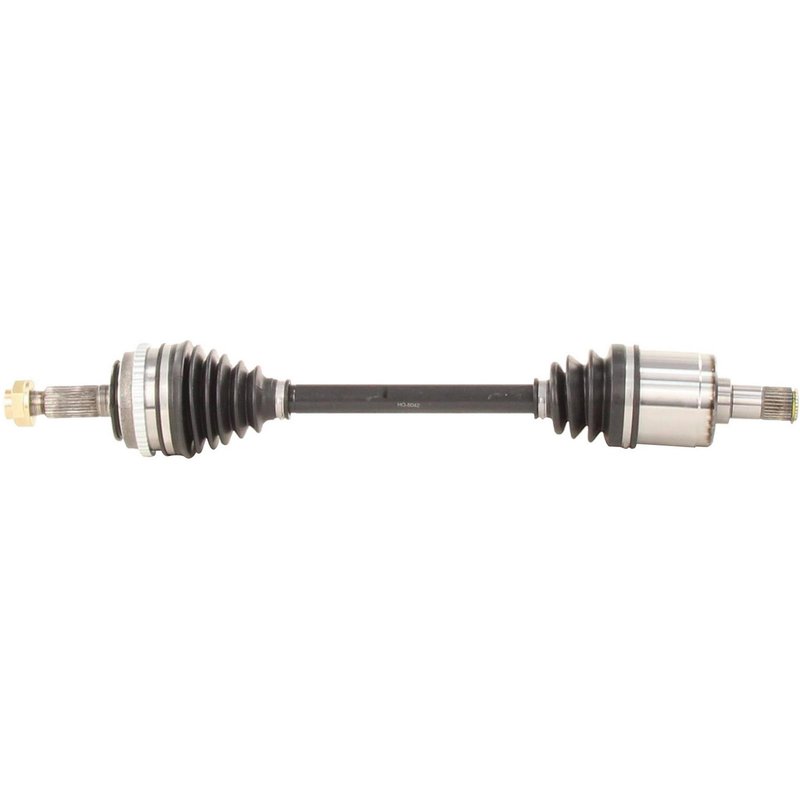

TrakMotive HO-8042 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HO-8042

The TrakMotive CV Axle Shaft HO-8042 is engineered for reliable driveline performance in select Acura and Honda vehicles. Designed specifically for models such as the Accord, CL, and TL, this new CV axle shaft ensures precise fitment and durability.

• Compatible with Acura and Honda Accord, CL, and TL models
• Includes ABS tone ring with 50 toothed ring teeth for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced protection against contaminants
• Comes with a stake locking hex axle nut (M24*1.5 thread size) included
• Overall compressed length of 26.5 inches (673 mm) for exact fitment
• Inboard joint features 29 splines with a male connection style
• Outboard joint is conventional with 28 splines and conventional shaft connection

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity components designed to meet OEM specifications. This line emphasizes precise engineering, including integrated ABS tone rings and durable neoprene boots, to maintain driveline integrity and vehicle safety. The HO-8042 model exemplifies these standards with its comprehensive feature set tailored for Acura and Honda applications.

Technical Description and Features

This CV axle shaft features a 50-tooth ABS ring with a toothed design, which is included to ensure compatibility with the vehicle’s anti-lock braking system. The neoprene boot material provides resistance to wear and environmental damage, extending the life of the joint. The axle nut included is a hex head type, measuring 1 2/5 inches (35.6 mm) across flats, with a height of 1 inch (23 mm) and a length of 1 1/2 inches (37.53 mm). It uses a stake locking mechanism to secure the axle firmly in place. The inboard joint is a male type with 29 splines, while the outboard joint is conventional with 28 splines, ensuring proper torque transfer and smooth operation. The overall compressed length of 26.5 inches (673 mm) matches factory specifications for a direct replacement.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Acura Accord, CL, and TL
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot
• Secures wheel hub connection with included stake locking axle nut

Installation Notes and Tips

Ensure the vehicle is safely lifted and supported before beginning installation. Verify the part number HO-8042 matches the original axle shaft. Use proper torque specifications for the M24*1.5 axle nut and stake it securely to prevent loosening. Inspect the CV boots for any damage during installation and replace if necessary. Confirm ABS tone ring alignment to maintain accurate wheel speed sensor readings.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HO-8042 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and ABS tone ring for a complete replacement. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure reliability and fitment for Acura and Honda vehicles.
