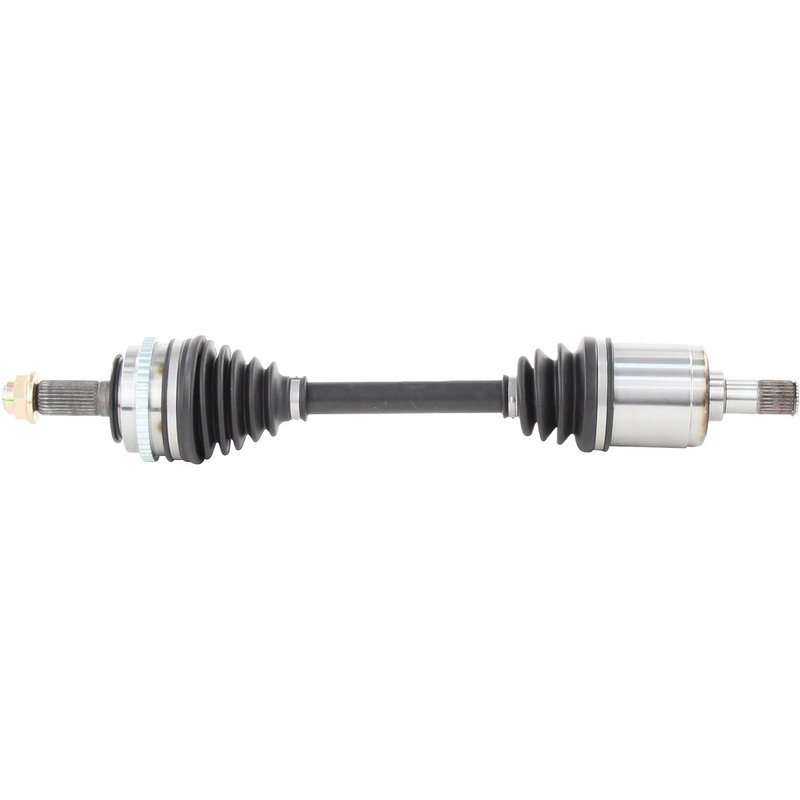

TrakMotive HO-8045 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft HO-8045 for Honda Accord

The TrakMotive CV Axle Shaft HO-8045 is designed specifically for Honda Accord models, providing reliable driveline performance. This new CV axle shaft features a neoprene boot and includes a toothed ABS tone ring to ensure precise wheel speed sensor operation.

• Compatible with Honda Accord vehicles
• Includes ABS tone ring with 50 teeth for accurate sensor feedback
• Neoprene boot material for enhanced durability and protection
• Hex head axle nut included with stake locking type
• Overall compressed length of 23.56 inches (598.5 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts engineered for precise fit and function. This line emphasizes durability with components such as neoprene boots and integrated ABS tone rings, ensuring compatibility with factory ABS systems. The HO-8045 model exemplifies these standards, tailored for Honda Accord driveline applications.

Technical Specifications and Features

The HO-8045 CV axle shaft includes a 50-tooth ABS ring with a toothed design, which is essential for accurate wheel speed detection. The axle nut is a hex type with a 1 2/5 inch (35.6 mm) hex size and a length of 1 1/2 inches (37.53 mm), featuring a stake locking mechanism to maintain secure installation. The inboard joint is male type with 27 splines, while the outboard joint is conventional with 28 splines. The neoprene boot material offers resistance to wear and environmental factors, extending the service life of the axle shaft.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Honda Accord
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures wheel hub connection with included stake-lock axle nut

Installation Notes and Tips

When installing the TrakMotive HO-8045 CV axle shaft, ensure the ABS tone ring aligns correctly with the vehicle’s sensor for accurate readings. Use the included hex axle nut and stake locking method to secure the axle firmly. Verify spline engagement on both inboard and outboard joints to prevent premature wear. Proper torque specifications should be followed according to Honda Accord service guidelines.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet OEM standards. TrakMotive ensures quality through precise manufacturing and material selection, including the use of neoprene boots and accurate ABS ring integration. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
