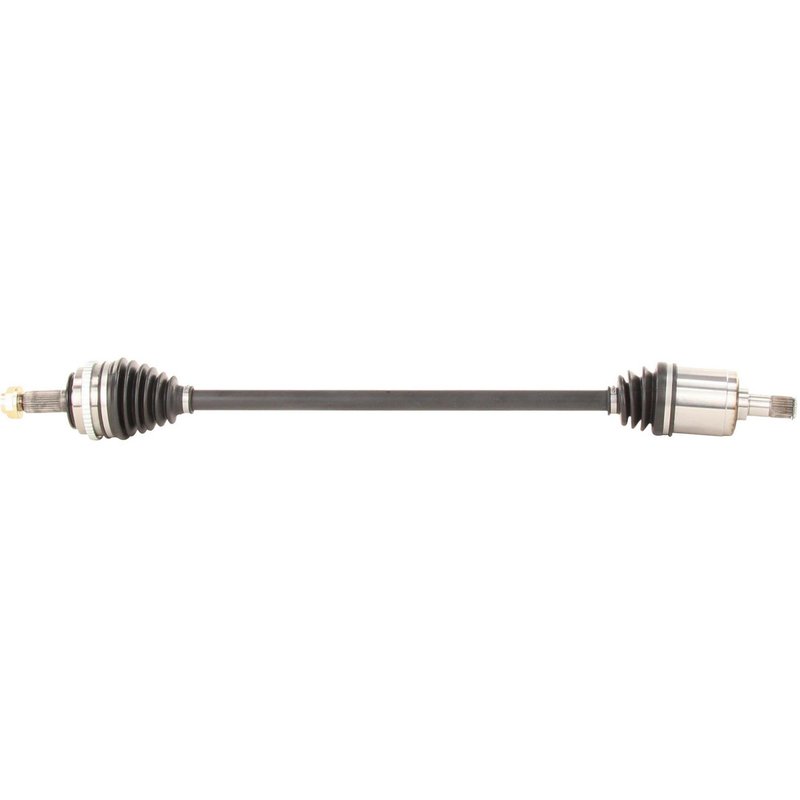

TrakMotive HO-8046 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-8046 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 50 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.53 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 37.62 |
| Overall Compressed Length (mm) | 955.5 |
| Product line | CV Axle Shaft |
| Fits | Honda · 4 vehicles |
New shaft assembly. Built as a fresh replacement for driveline and CV component service.
Neoprene boot. Helps protect the joint from dirt and moisture.
ABS tone ring included. Toothed ring is built in for ABS-equipped applications.
Cross-references AMS Automotive 7075, Atlantic Automotive Engineering 3986N and Cardone New 66-4066 for the same application. See all 42.
TrakMotive HO-8046 CV Axle Shaft
TrakMotive HO-8046 is a new CV axle shaft for front left applications on select 1990-1993 Honda Accord models. It is built with a neoprene boot, a toothed ABS tone ring, and included axle nut details to support a direct replacement for the original driveline component.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HO-8046
- Fits 1990-1993 Honda Accord, front left
- New axle shaft assembly
- Neoprene boot material
- ABS tone ring included with 50-tooth toothed ring
- Inboard joint type: male
- Outboard joint type: conventional
- Overall compressed length: 37.62 in. (955.5 mm)
- Axle nut included with M24 x 1.5 thread, stake locking type, 35.6 mm hex size
Product Details
This TrakMotive CV axle shaft is engineered for the front left side of 1990-1993 Honda Accord vehicles and is listed under part number HO-8046. It uses a male inboard connection, a conventional outboard joint, and a neoprene boot to support driveline movement while maintaining a proper seal. The included toothed ABS ring and axle nut details make it a practical replacement for vehicles that require ABS-related axle features. TrakMotive HO-8046 is also referenced for the same application under cross-reference part numbers such as Cardone New 66-4066 and Monroe-style interchange 172286.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration during acceleration caused by a damaged axle shaft
- Torn or leaking CV boot that exposes the joint to contamination
- ABS warning concerns related to a damaged tone ring or axle assembly
- Excessive driveline play from wear in the original front axle
Installation Notes and Tips
Verify front left fitment before installation on 1990-1993 Honda Accord models. Confirm axle spline counts, compressed length, and axle nut thread size against the original part before assembly. Inspect the hub, seals, and surrounding suspension components for wear, and replace any damaged hardware or seals as needed during service. Because this axle includes an ABS tone ring, make sure the replacement matches the vehicle’s ABS configuration requirements.
Quality Assurance
TrakMotive identifies this axle shaft as a new replacement part and states that its products are backed by a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled manufacturing and quality management practices.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 1993 | Honda | Accord | Automatic | Front Left | CV Axle Shaft |
| 1992 | Honda | Accord | Automatic | Front Left | CV Axle Shaft |
| 1991 | Honda | Accord | Automatic | Front Left | CV Axle Shaft |
| 1990 | Honda | Accord | Automatic | Front Left | CV Axle Shaft |
| No rows match your filter. | |||||
