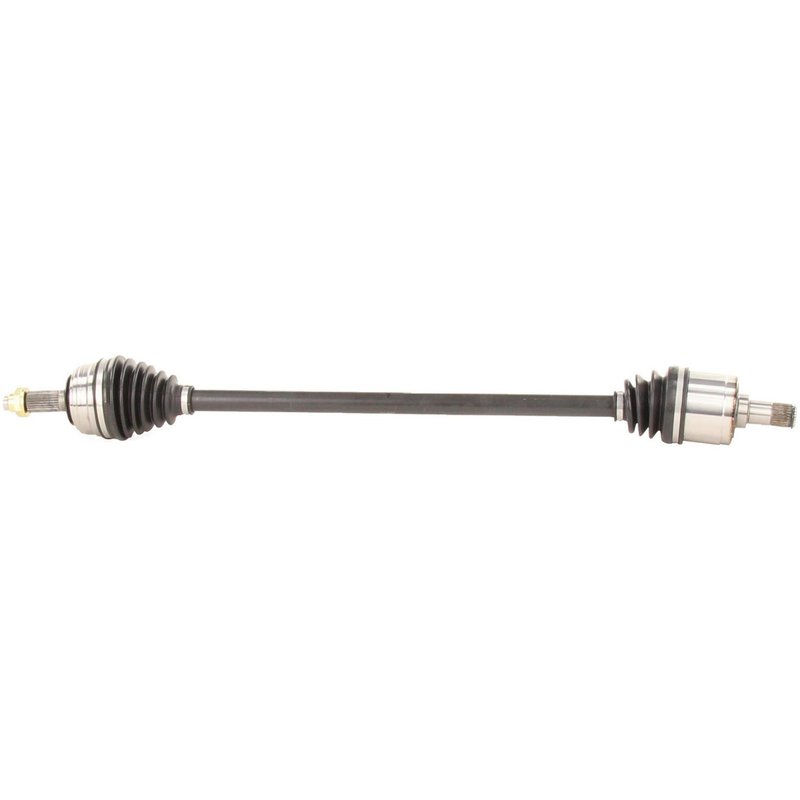

TrakMotive HO-8053 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-8053 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 36.38 |
| Overall Compressed Length (mm) | 924 |
| Product line | CV Axle Shaft |
| Fits | Honda · 4 vehicles |
New unit. Freshly manufactured CV axle shaft for dependable replacement.
Neoprene boot. Flexible material helps resist wear and cracking over time.
Axle nut included. Comes with the hardware needed for a complete install.
Cross-references Cardone New 66-4001, Cardone Reman 60-4001 and Carlson 7029 for the same application. See all 31.
CV Axle Shaft for Honda Accord
TrakMotive HO-8053 is a new CV axle shaft for the front left position on 1986-1989 Honda Accord models. It is built for direct driveline replacement on applications that use a 27-spline inboard connection and 26-spline outboard connection.
This TrakMotive CV Axle Shaft line focuses on OE-style replacement fitment and application-specific details. HO-8053 includes a neoprene boot, a hex-style axle nut with M22 x 1.5 thread, and is supplied for non-ABS applications unless otherwise noted.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HO-8053
- Fits 1986-1989 Honda Accord, front left
- New axle shaft assembly
- Inboard joint type: male
- Outboard joint type: conventional
- Boot material: neoprene
- Axle nut included with stake locking type
- Overall compressed length: 36.38 in. (924 mm)
- ABS tone ring not included
Detailed Description
TrakMotive HO-8053 is a front left CV axle shaft for 1986-1989 Honda Accord applications. It is engineered around the listed spline counts, shaft connection styles, and compressed length to support proper driveline fitment on the specified vehicle range. If you are replacing a worn axle on a Honda Accord, this part number provides a direct replacement reference for the front left side.
HO-8053 cross-references Cardone New 66-4001 and Cardone Reman 60-4001 for the same application. The part is also identified under TrakMotive HO-8053 in interchange listings.
What It Helps Address
- Clicking or popping during turns caused by worn CV joints
- Vibration from a damaged or imbalanced axle shaft
- Grease leakage from a deteriorated boot
- Driveline noise from excessive joint wear
- Front left axle replacement on 1986-1989 Honda Accord models
Installation Notes and Tips
Verify the vehicle’s front left application, spline count, and axle nut thread size before installation. This axle uses a hex axle nut with M22 x 1.5 threads and a stake-style locking design. ABS tone ring is not included, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle application.
Confirm compressed length and shaft connection style against the removed part to help ensure correct fitment on your Honda Accord. Always inspect related seals, hub components, and mounting points during axle replacement.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for driveline components.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 1989 | Honda | Accord | Automatic | Front Left | CV Axle Shaft |
| 1988 | Honda | Accord | Automatic | Front Left | CV Axle Shaft |
| 1987 | Honda | Accord | Automatic | Front Left | CV Axle Shaft |
| 1986 | Honda | Accord | Automatic | Front Left | CV Axle Shaft |
| No rows match your filter. | |||||
