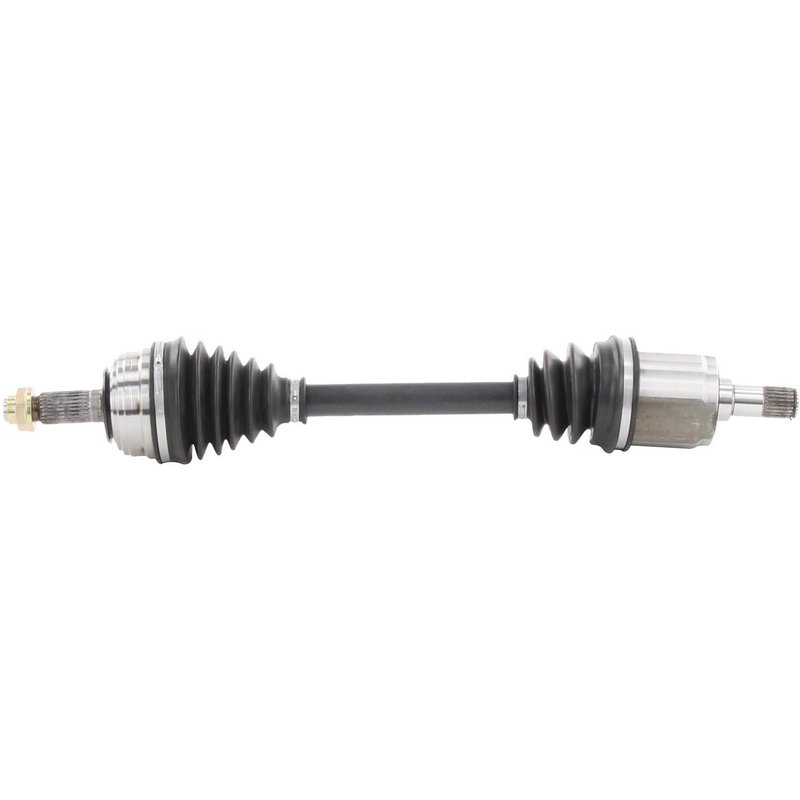

TrakMotive HO-8054 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8054 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.94 |
| Overall Compressed Length (mm) | 608 |
| Product line | CV Axle Shaft |
| Fits | Honda · 12 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for dependable joint protection.
Axle nut included. Comes ready with the correct hex nut and stake locking style.
ABS tone ring omitted. Fits non-ABS applications unless otherwise noted.
Cross-references Cardone New 66-4002, Cardone Reman 60-4002 and Carlson 7038 for the same application. See all 25.
Honda Civic and CRX Front Right CV Axle
TrakMotive HO-8054 is a new CV axle shaft for front right applications on select 1988-1991 Honda Civic and 1988-1991 Honda CRX models. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline service on the listed vehicles.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HO-8054
- Fits front right position on listed Honda applications
- New axle shaft construction
- Neoprene boot material
- Inboard joint type: male
- Outboard joint type: conventional
- Includes axle nut with M22 x 1.5 thread size
- Axle nut head type: hex, 31.8 mm (1 1/4 in.) hex size
- No ABS tone ring included
- Overall compressed length: 23.94 in. (608 mm)
Product Details
TrakMotive HO-8054 is a CV axle shaft in the Driveline and Axles > CV Components category, engineered for the front right side of 1988-1991 Honda Civic and 1988-1991 Honda CRX applications listed below. The axle uses a 25-spline inboard connection and a 26-spline outboard connection, with a stake-style axle nut included for service on the specified fitments. TrakMotive positions this CV axle shaft as a new replacement part and notes ISO 9001:1007 and TS 16949:2009 certified manufacturing.
This part cross-references Cardone New 66-4002 and Cardone Reman 60-4002 for the same application. HO-8054 is a direct-fit style replacement for Honda Civic and Honda CRX front right driveline service where the listed dimensions and spline counts match the vehicle.
What It Helps Repair
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Torn boot conditions that can lead to grease loss and joint wear
- Axle play or driveline looseness at the front right corner
- Noise or binding caused by internal CV joint wear
Installation Notes
Verify front right fitment, spline count, and compressed length before installation. This axle uses a hex axle nut with M22 x 1.5 thread size and a stake locking type. ABS tone ring is not included, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing.
Fits 1988-1991 Honda Civic, front right, except HF. Fits 1988-1991 Honda CRX, front right. Confirm the vehicle’s original axle configuration against the listed dimensions and joint styles before service.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The part is produced by an ISO 9001:1007 and TS 16949:2009 certified company.
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 1991 | Honda | Civic | — | FWD | Front Right | Exc. HF; CV Axle Shaft |
| 1991 | Honda | CRX | Si | — | Front Right | CV Axle Shaft |
| 1991 | Honda | CRX | Base | — | Front Right | CV Axle Shaft |
| 1990 | Honda | Civic | — | FWD | Front Right | Exc. HF; CV Axle Shaft |
| 1990 | Honda | CRX | Si | — | Front Right | CV Axle Shaft |
| 1990 | Honda | CRX | Base | — | Front Right | CV Axle Shaft |
| 1989 | Honda | Civic | — | FWD | Front Right | Exc. HF; CV Axle Shaft |
| 1989 | Honda | CRX | Si | — | Front Right | CV Axle Shaft |
| 1989 | Honda | CRX | Base | — | Front Right | CV Axle Shaft |
| 1988 | Honda | Civic | — | FWD | Front Right | Exc. HF; CV Axle Shaft |
| 1988 | Honda | CRX | Si | — | Front Right | CV Axle Shaft |
| 1988 | Honda | CRX | DX | — | Front Right | CV Axle Shaft |
