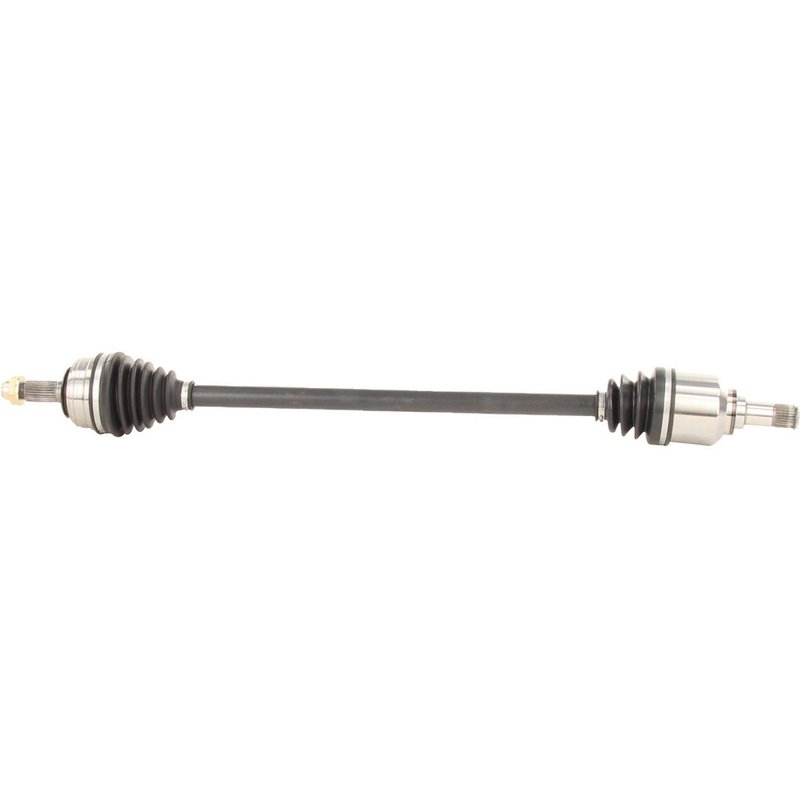

TrakMotive HO-8058 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-8058 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 36.3 |
| Overall Compressed Length (mm) | 922 |
| Product line | CV Axle Shaft |
| Fits | Honda · 4 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for dependable joint protection.
Axle nut included. Comes ready with a hex nut and stake locking type for secure installation.
ISO certified manufacturing. Built by a company certified to ISO 9001 and TS 16949 standards.
Cross-references Cardone New 66-4006, Cardone Reman 60-4006 and Carlson 7027 for the same application. See all 18.
Honda Accord Front Left CV Axle Shaft
TrakMotive HO-8058 is a new CV axle shaft for the front left position on select 1986-1989 Honda Accord models. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline service on the specified application.
Key Features
- Fits 1986-1989 Honda Accord, front left
- TrakMotive CV Axle Shaft, part number HO-8058
- New replacement axle for driveline and axle service
- Neoprene boot material for joint protection
- Male inboard shaft connection with 27 inboard splines
- Conventional outboard shaft connection with 26 outboard splines
- Includes axle nut with M22 x 1.5 thread, 31.8 mm hex size, and stake locking type
- Overall compressed length: 36.3 in. (922 mm)
- ABS tone ring not included
Product Details
HO-8058 is part of TrakMotive’s CV Axle Shaft line, a driveline-focused product line for replacement axle service. This axle is specified for the front left side of the 1986-1989 Honda Accord and uses the listed spline counts, joint styles, and compressed length to match the application. The axle nut is included, and the design does not use an ABS tone ring.
This part cross-references Cardone New 66-4006 and Carlson 7027 for the same application.
What It Helps Address
- Clicking or popping from a worn CV joint during turns
- Vibration caused by a damaged or worn axle shaft
- Grease leakage from a compromised axle boot
- Driveline noise from spline or joint wear
- Front left axle replacement on a 1986-1989 Honda Accord
Installation Notes
Verify front left fitment against the vehicle’s year, model, and axle configuration before installation. Confirm the axle nut thread size, hex size, and locking style match the original hardware specification. Because ABS axles fit non-ABS applications unless otherwise noted, confirm whether the vehicle uses ABS before ordering.
Quality Assurance
TrakMotive lists this axle as a new part and states that its manufacturing is supported by ISO 9001:1007 and TS 16949:2009 certification. The manufacturer also backs this CV axle shaft with a limited lifetime warranty.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 1989 | Honda | Accord | Manual | Front Left | CV Axle Shaft |
| 1988 | Honda | Accord | Manual | Front Left | CV Axle Shaft |
| 1987 | Honda | Accord | Manual | Front Left | CV Axle Shaft |
| 1986 | Honda | Accord | Manual | Front Left | CV Axle Shaft |
