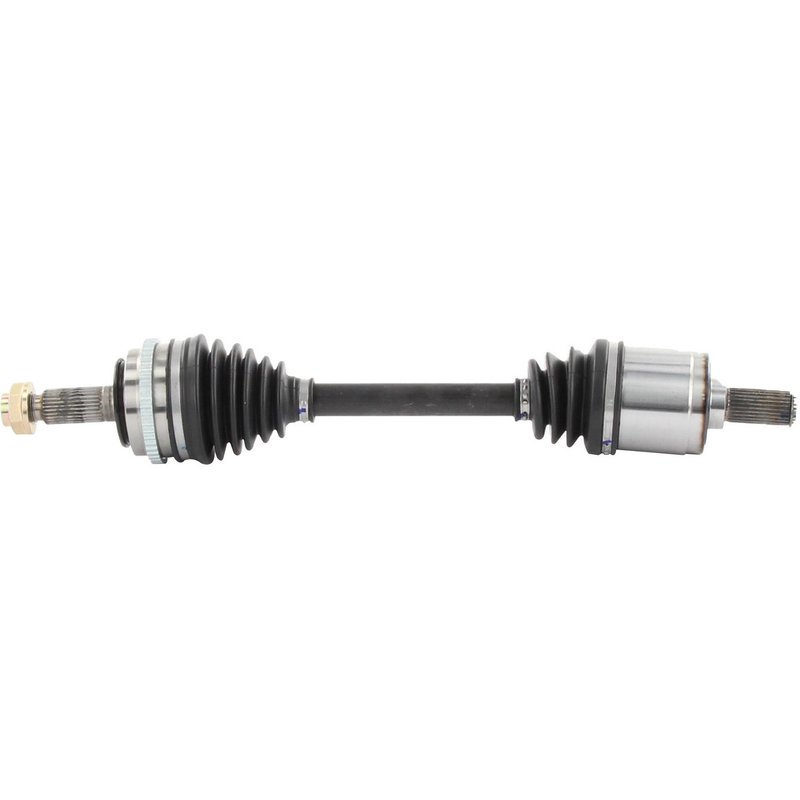

TrakMotive HO-8062 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HO-8062 for Honda Accord

The TrakMotive CV Axle Shaft HO-8062 is designed specifically for Honda Accord models, providing reliable driveline performance. This new CV axle shaft features a robust construction with precise specifications to ensure compatibility and durability.

• Compatible with Honda Accord vehicles
• Includes ABS tone ring with 50 toothed ring teeth
• Neoprene boot material for enhanced durability
• Comes with a hex head axle nut (M24*1.5 thread size)
• Overall compressed length of 23.44 inches (595.5 mm)
• Inboard joint type: Male with 27 splines
• Outboard joint type: Conventional with 28 splines
• Axle nut locking type: Stake for secure fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and reliable driveline components for various vehicle applications. This line emphasizes quality materials such as neoprene boots and includes essential hardware like axle nuts and ABS tone rings to maintain vehicle safety systems. The HO-8062 model exemplifies this approach by integrating a toothed ABS ring and a stake-type locking axle nut to meet OEM specifications for the Honda Accord.

Technical Specifications and Features

The HO-8062 CV axle shaft is engineered with a 50-tooth ABS ring that is toothed and included with the assembly, ensuring proper ABS sensor function. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the joint. The axle nut included is a hex head type with a 1 2/5 inch (35.6 mm) hex size and a length of 1 1/2 inches (37.53 mm), featuring a stake locking mechanism for secure installation. The inboard joint uses a male connection style with 27 splines, while the outboard joint is conventional with 28 splines. The overall compressed length measures 23.44 inches (595.5 mm), matching OEM fitment requirements.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Honda Accord
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration or clicking noises during turns
• Addresses boot damage or grease leakage issues
• Ensures secure axle nut fitment with stake locking type

Installation Notes and Tips

When installing the TrakMotive HO-8062 CV axle shaft on a Honda Accord, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain sensor accuracy. Inspect the neoprene boot for any damage during installation to avoid premature failure. Use appropriate tools for the hex head axle nut (35.6 mm) to avoid rounding.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet OEM standards for fit and function. The inclusion of the ABS tone ring and axle nut ensures a complete replacement part. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support reliable vehicle operation.
