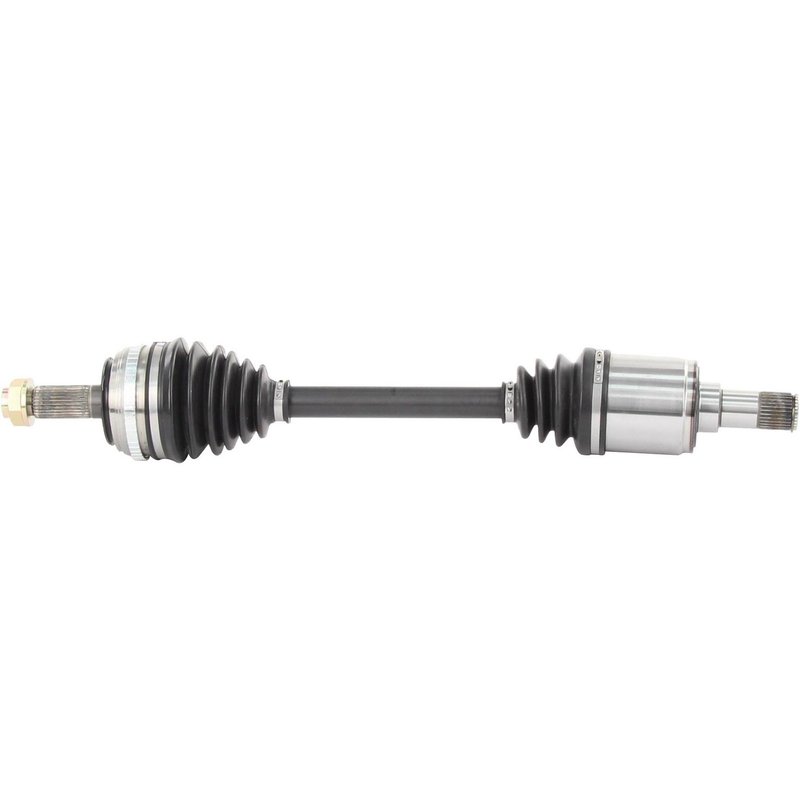

TrakMotive HO-8064 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8064 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 50 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.53 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.24 |
| Overall Compressed Length (mm) | 641 |
| Product line | CV Axle Shaft |
| Fits | Acura · 12 vehicles |
New axle shaft. Fresh replacement part for driveline and CV component service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ABS tone ring included. Toothed ring is built in for ABS-equipped applications.
Cross-references Cardone New 66-4149, Cardone Reman 60-4149 and FEL-PRO 1630 for the same application. See all 24.
CV Axle Shaft for Acura RL and TL
TrakMotive HO-8064 is a new front right CV axle shaft for select Acura applications, including the 1996-2004 Acura RL and 1996-1998 Acura TL. It is built with a neoprene boot, a toothed ABS tone ring, and the axle nut included for a direct replacement on the specified vehicles.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HO-8064
- Front right position
- New construction
- Neoprene boot material
- ABS tone ring included with 50-tooth toothed ring
- Male inboard shaft connection
- Conventional outboard shaft connection
- 31 inboard splines and 28 outboard splines
- Axle nut included, M24 x 1.5 thread, stake-lock type
- Overall compressed length: 25.24 in. (641 mm)
Product Details
TrakMotive HO-8064 is a CV axle shaft engineered for Acura RL and Acura TL front right applications. The axle uses a male inboard joint, a conventional outboard joint, and a neoprene boot to support driveline movement while maintaining a proper seal. The included ABS tone ring and 50-tooth ring design are important for vehicles that rely on wheel speed signal input, and the axle nut specifications help match the original hardware requirements for the listed fitments. This part cross-references Cardone New 66-4149 and Cardone Reman 60-4149 for the same application.
What It Helps Address
- Clicking or popping during turns caused by worn CV joints
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- ABS warning concerns related to a missing or damaged tone ring
- Driveline noise from excessive axle wear
Installation Notes and Tips
Fits 1996-2004 Acura RL, front right. Fits 1996-1998 Acura TL, front right. Verify spline count, axle nut thread size, and ABS tone ring requirements before installation. The axle nut is included, but the vehicle should be inspected for hub, seal, and suspension wear that could affect axle life. Use the correct torque procedure and follow the service manual for the specific Acura RL or Acura TL application.
Quality Assurance
TrakMotive states this axle is a new part from an ISO 9001:1007 and TS 16949:2009 certified company. It is backed by a limited lifetime warranty.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2004 | Acura | RL | — | — | Front Right | CV Axle Shaft |
| 2003 | Acura | RL | — | — | Front Right | CV Axle Shaft |
| 2002 | Acura | RL | — | — | Front Right | CV Axle Shaft |
| 2001 | Acura | RL | — | — | Front Right | CV Axle Shaft |
| 2000 | Acura | RL | — | — | Front Right | CV Axle Shaft |
| 1999 | Acura | RL | — | — | Front Right | CV Axle Shaft |
| 1998 | Acura | RL | — | — | Front Right | CV Axle Shaft |
| 1998 | Acura | TL | 3.2L | V6 | Front Right | CV Axle Shaft |
| 1997 | Acura | RL | — | — | Front Right | CV Axle Shaft |
| 1997 | Acura | TL | 3.2L | V6 | Front Right | CV Axle Shaft |
| 1996 | Acura | RL | — | — | Front Right | CV Axle Shaft |
| 1996 | Acura | TL | 3.2L | V6 | Front Right | CV Axle Shaft |
